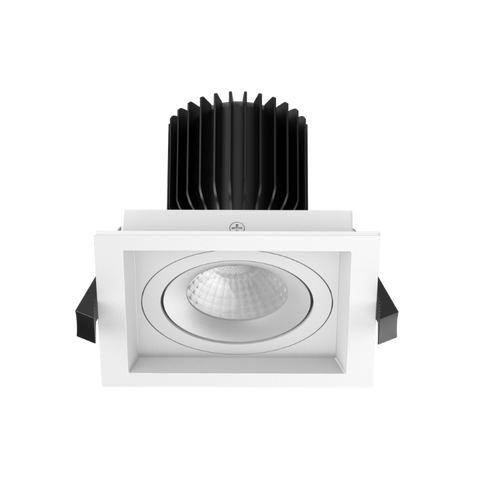

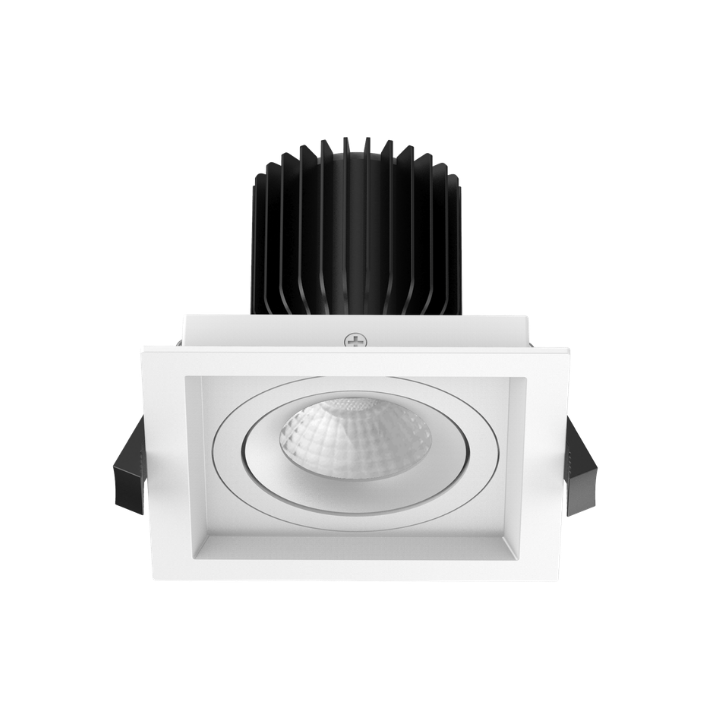

DLM Modular LED Downlight Series - 18W Square Gimbal 95-100mm

  • Sale



The DLM modular series are the latest edition to the Integrated Power downlight range. The multiple trim & colour options allow for the DLM series to be adapted to a wide range of indoor applications. Whether it's to wallwash an art piece, create some feature lighting using various trim options, or just to be used as a standard high quality downlight, the DLM series has got your requirements covered. A perfect choice for both retrofits and new installations.



Features

  • Modular design
  • Multiple trim styles, colours & cutouts
  • Highly adaptable for upgrades or new installs.
  • Aluminum heatsink provides excellent heat dissipation
  • High Output Citizen COB LED chips
  • Quality mains dimmable driver
  • Low glare design



Applications

  • Offices
  • Galleries
  • Retail Displays
  • Hotels
  • Foyers



Standard Specifications

Input Voltage: 220 - 240 Vac Rated Input Power: 18W
Lumen Output: 1930 - 2130lm Beam Angle: 60°
Colour Temperature: 4000K (3000K/5000K optional) CRI Rating: CRI>80
IP Rating: IP20 SDCM Rating: <6

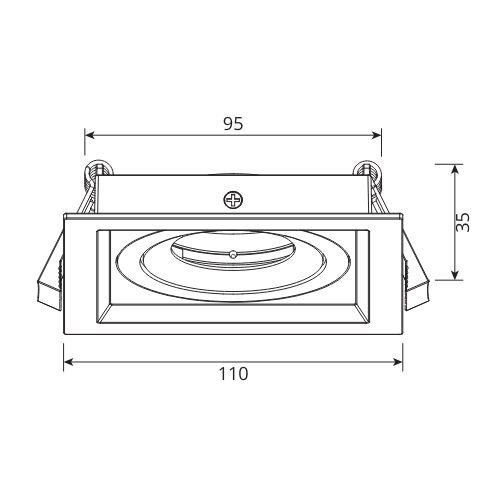

Trim Cutout: 95-100mm Trim Dimensions: 110*110*35mm
Trim Colour: White Fitting Weight: 0.41kg



Options (add option to end of stock code)

Trim Colour - Black /BK
Trim Colour - Silver /SI
DALI Dimming /DALI



Model Links

18W Round Trim 75-80mm / 60° 4000K

DLM18SI4KD01 + DLMADP01
18W Round Trim 90-95mm / 60° 4000K  DLM18SI4KD01 + DLMADP02
18W Round Pinhole 70-80mm / 60° / 4000K DLM18SI4KD01 + DLMADP04

18W Round Wallwash 90-95mm / 60° / 4000K

DLM18SI4KD01 + DLMADP05
18W Round Gimbal 70-80mm / 60° / 4000K DLM18SI4KD01 + DLMADP06
18W Round Gimbal 90-95mm / 60° / 4000K DLM18SI4KD01 + DLMADP07
18W Square Trim 90-95mm / 60° / 4000K DLM18SI4KD01 + DLMADP08
18W Square Gimbal 95-100mm / 60° / 4000K DLM18SI4KD01 + DLMADP09



IES Files

IES DLM18SI3KD01 18W 60deg 3000K
IES DLM18SI4KD01 18W 60deg 4000K
IES DLM18SI5KD01 18W 60deg 5000K


Photometric Chart





Models

Models

Model Option Stock Code Availability
18W Square Gimbal 95-100mm / 60° / 3000K DLM18SI3KD01 + DLMADP09 Special Order
18W Square Gimbal 95-100mm / 60° / 4000K DLM18SI4KD01 + DLMADP09 Stock Item
18W Square Gimbal 95-100mm / 60° / 5000K DLM18SI5KD01 + DLMADP09 Special Order
Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm.
