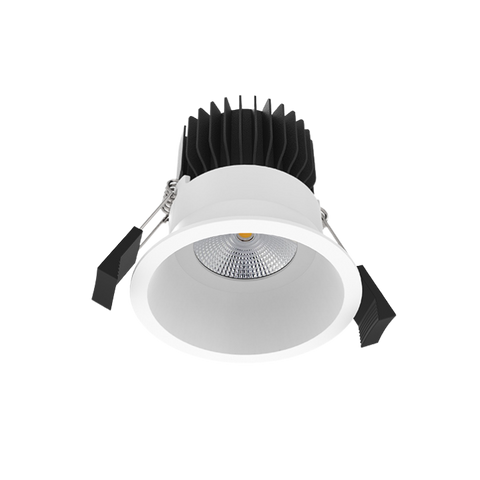

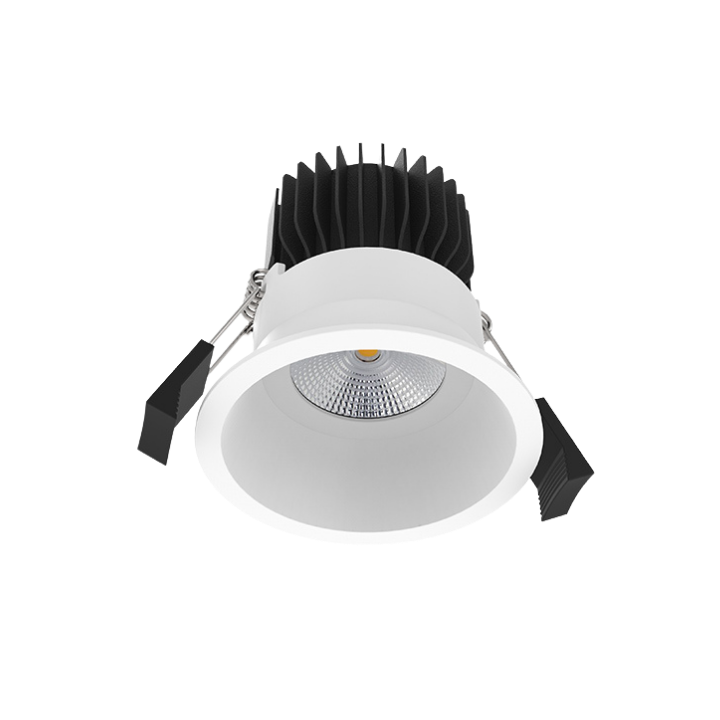

DLM Modular LED Downlight Series - 18W Round Trim 75-80mm

  • Sale



The DLM modular series are the latest edition to the Integrated Power downlight range. The multiple trim & colour options allow for the DLM series to be adapted to a wide range of indoor applications. Whether it's to wallwash an art piece, create some feature lighting using various trim options, or just to be used as a standard high quality downlight, the DLM series has got your requirements covered. A perfect choice for both retrofits and new installations.



Features

  • Modular design
  • Multiple trim styles, colours & cutouts
  • Highly adaptable for upgrades or new installs.
  • Aluminum heatsink provides excellent heat dissipation
  • High Output Citizen COB LED chips
  • Quality mains dimmable driver
  • Low glare design



Applications

  • Offices
  • Galleries
  • Retail Displays
  • Hotels
  • Foyers
  • Passageways
  • Bathrooms



Standard Specifications

Input Voltage: 220 - 240 Vac Rated Input Power: 18W
Lumen Output: 1930 - 2130lm Beam Angle: 60°
Colour Temperature: 4000K (3000K/5000K optional) CRI Rating: CRI>80
IP Rating: IP20 SDCM Rating: <6
Trim Cutout: 75-80mm Trim Dimensions: Ø85*46.8mm
Trim Colour: White Fitting Weight: 0.33kg



Options (add option to end of stock code)

Trim Colour - Black /BK
Trim Colour - Silver /SI
DALI Dimming /DALI



Model Links

18W Round Trim 75-80mm / 60° 4000K

DLM18SI4KD01 + DLMADP01
18W Round Trim 90-95mm / 60° 4000K  DLM18SI4KD01 + DLMADP02
18W Round Pinhole 70-80mm / 60° / 4000K DLM18SI4KD01 + DLMADP04

18W Round Wallwash 90-95mm / 60° / 4000K

DLM18SI4KD01 + DLMADP05
18W Round Gimbal 70-80mm / 60° / 4000K DLM18SI4KD01 + DLMADP06
18W Round Gimbal 90-95mm / 60° / 4000K DLM18SI4KD01 + DLMADP07
18W Square Trim 90-95mm / 60° / 4000K DLM18SI4KD01 + DLMADP08
18W Square Gimbal 95-100mm / 60° / 4000K DLM18SI4KD01 + DLMADP09



IES Files

IES DLM18SI3KD01 18W 60deg 3000K
IES DLM18SI4KD01 18W 60deg 4000K
IES DLM18SI5KD01 18W 60deg 5000K




Models

Model Option Stock Code Availability
18W Round Trim 75-80mm / 60° / 3000K DLM18SI3KD01 + DLMADP01 Special Order
18W Round Trim 75-80mm / 60° / 4000K DLM18SI4KD01 + DLMADP01 Stock Item
18W Round Trim 75-80mm / 60° / 5000K DLM18SI5KD01 + DLMADP01 Special Order
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
