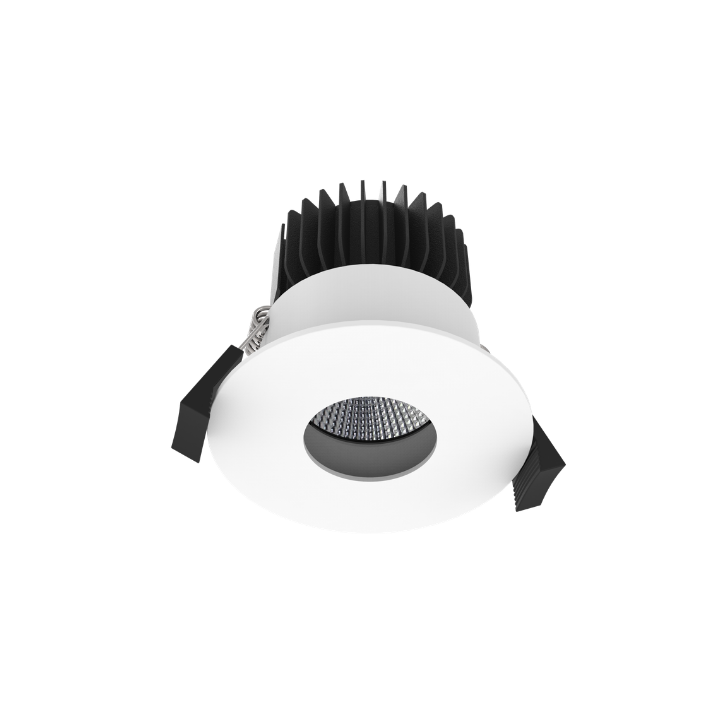

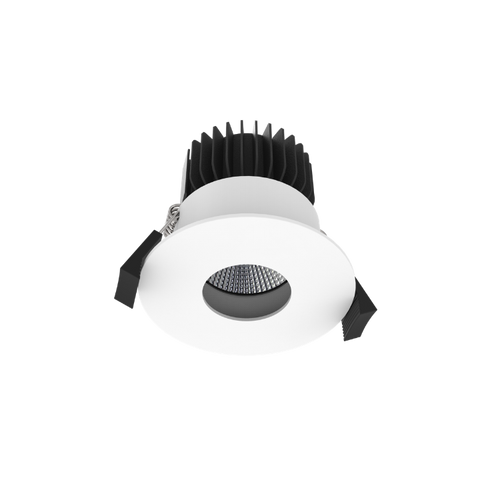

DLM Modular LED Downlight Series - 13W Pinhole 70-80mm

  • Sale



The DLM modular series are the latest edition to the Integrated Power downlight range. The multiple trim & colour options allow for the DLM series to be adapted to a wide range of indoor applications. Whether it's to wallwash an art piece, create some feature lighting using various trim options, or just to be used as a standard high quality downlight, the DLM series has got your requirements covered. A perfect choice for both retrofits and new installations.



Features

  • Modular design
  • Multiple trim styles, colours & cutouts
  • Highly adaptable for upgrades or new installs.
  • Aluminum heatsink provides excellent heat dissipation
  • High Output Citizen COB LED chips
  • Quality mains dimmable driver
  • Low glare design



Applications

  • Offices
  • Galleries
  • Retail Displays
  • Hotels
  • Foyers



Standard Specifications

Input Voltage: 220 - 240 Vac Rated Input Power: 13W
Lumen Output: 1200-1490lm Beam Angle: Pinhole
Colour Temperature: 4000K (3000K/5000K optional) CRI Rating: CRI>80
IP Rating: IP20 SDCM Rating: <6

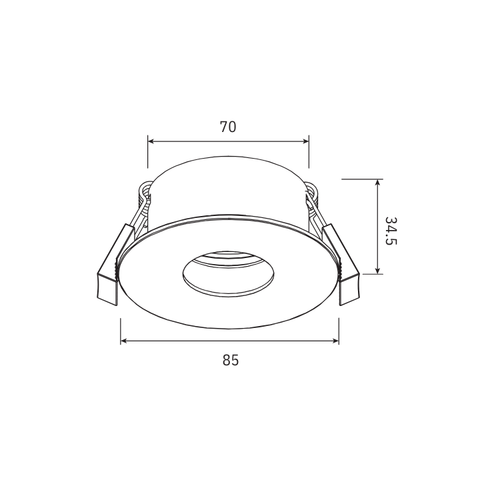

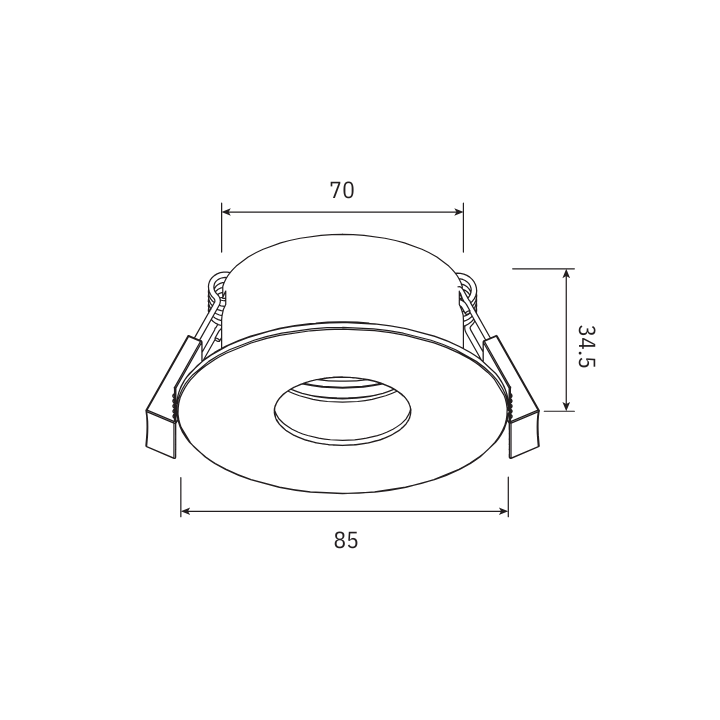

Trim Cutout: 70-80mm Trim Dimensions: Ø85*34.5mm
Trim Colour: White Fitting Weight: 0.28kg



Options (add option to end of stock code)

Trim Colour - Black /BK
Trim Colour - Silver /SI
DALI Dimming /DALI



Model Links

13W Round Trim 75-80mm / 60° 4000K DLM13SI4KD01 + DLMADP01
13W Round Trim 90-95mm / 60° 4000K  DLM13SI4KD01 + DLMADP02
13W Round Pinhole 70-80mm / 60° / 4000K DLM13SI4KD01 + DLMADP04

13W Round Wallwash 90-95mm / 60° / 4000K

DLM13SI4KD01 + DLMADP05
13W Round Gimbal 70-80mm / 60° / 4000K DLM13SI4KD01 + DLMADP06
13W Round Gimbal 90-95mm / 60° / 4000K DLM13SI4KD01 + DLMADP07
13W Square Trim 90-95mm / 60° / 4000K DLM13SI4KD01 + DLMADP08
13W Square Gimbal 95-100mm / 60° / 4000K DLM13SI4KD01 + DLMADP09



IES Files

IES DLM13SI3KD01 13W 60deg 3000K
IES DLM13SI4KD01 13W 60deg 4000K
IES DLM13SI5KD01 13W 60deg 5000K



Models

Model Option Stock Code Availability
13W Round Trim 70-80mm / Pinhole / 3000K DLM13SI3KD01 + DLMADP04 Stock Item
13W Round Trim 70-80mm / Pinhole / 4000K DLM13SI4KD01 + DLMADP04 Stock Item
13W Round Trim 70-80mm / Pinhole / 5000K DLM13SI5KD01 + DLMADP04 Special Order
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
