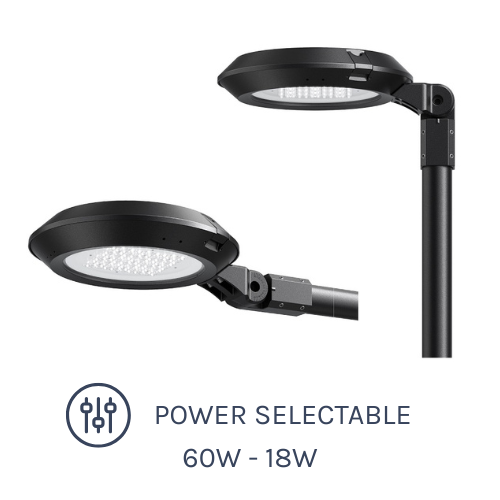

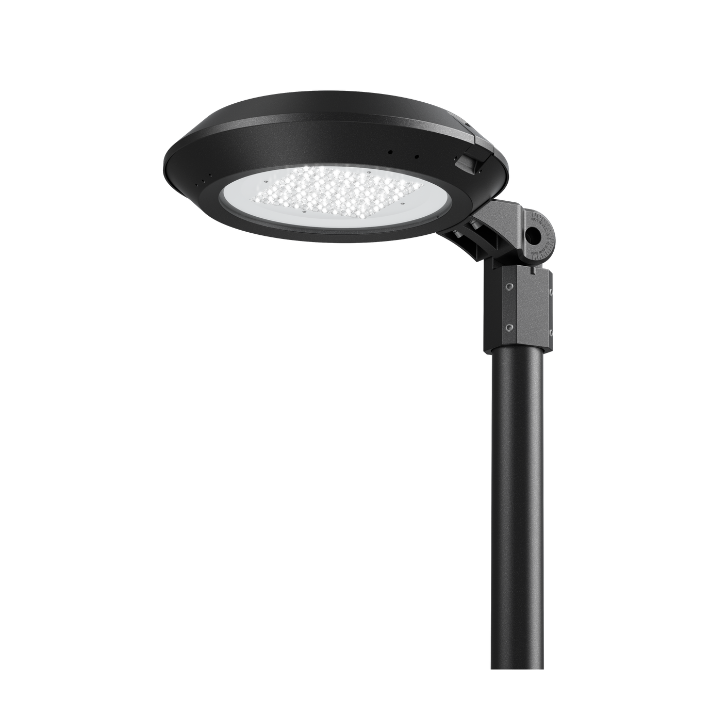

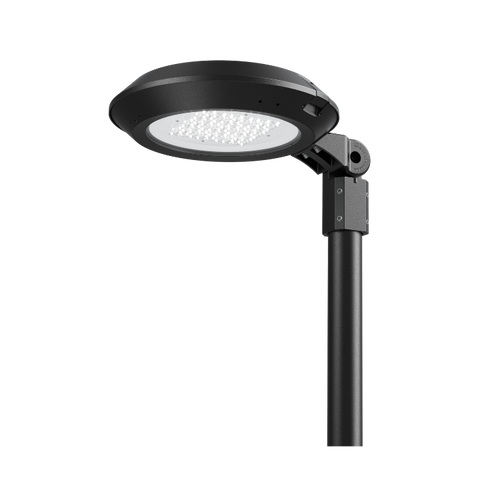

PT5 Series LED Poletop Lights - 60W Slipfitter

  • Sale
  • Regular price


The PT Series LED poletops package the latest LED chipsets and drivers in an expanding range of heritage and contemporary designs. The PT5 is the latest edition to our PT Series. Offering 6 different mounting options, 4 power output options, colour selectability and a wide range of optics, makes this our most project adaptable pole top model to date.


Features

  • Output selectable
  • Colour temperature selectable
  • Large range of asymmetric & symmetric optics
  • Multiple mounting styles available
  • High quality LED chips and drivers
  • Durable powder coated finish
  • Robust cast aluminium construction
  • Toll free maintenance
  • suits 60mm vertical spigot, square & round poles


Applications

  • Parks
  • Walkways
  • Carparks
  • Education Campus'
  • Council Facilities
  • Courtyards
  • Estates


Standard Specifications

Rated Input Power: 60W/45W/30W/18W Lumen Output: 9,000lm - 2,700lm
Colour Temp: 3000K/4000K/5000K CRI: CRI>80
Operating Temperature: -30/+45°C Service Life: 50,000hrs @ 25°C
Ingress Protection: IP66 IK Rating: IK08
Dimensions: Ø 400mm x 81mm (head only) Fitting Weight: 6.8kg - 9.4kg



Options (add option to end of stock code)

0-10V Dimming /0-10V
7-pin NEMA Socket /NEMA
PE Cell /PE
DALI Dimming /DALI



Other Models

Type A Single Arm Mount - 60mm spigot
Type B Twin Arm Mount - 60mm spigot
Type C Straight Arm Mount - round/square pole
Type D Slipfitter - 60mm spigot
Type E Gooseneck Adaptor - 60mm spigot


Accessories

76mm-60mm Pole Adaptor - Black PTADP76-60B



IES Files

IES PT560BK4KN01 60W
IES PT560BK4KN02 60W
IES PT560BK4KN03 60W
IES PT560BK4KN04 60W
IES PT560BK4KN05 60W
IES PT560BK4KN06 60W



Models

Model Option Stock Code Availability
Black / Type V Symmetric PT560BKXKN01D Stock Item
Black / Type I Short Asymmetric PT560BKXKN02D Special Order
Black / Type II Short Asymmetric PT560BKXKN03D Special Order
Black / Type III Short Asymmetric PT560BKXKN04D Special Order
Black / Type II Medium Asymmetric PT560BKXKN05D Special Order
Black / Type III Medium Asymmetric PT560BKXKN06D Special Order
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
