DLM Modular LED Downlight Series - 18W Black Round Trim 90-95mm

  • Sale
  • Regular price

The DLM modular series are the latest edition to the Integrated Power downlight range. The multiple trim & colour options allow for the DLM series to be adapted to a wide range of indoor applications. Whether it's to wallwash an art piece, create some feature lighting using various trim options, or just to be used as a standard high quality downlight, the DLM series has got your requirements covered. A perfect choice for both retrofits and new installations.


  • Modular design
  • Multiple trim styles, colours & cutouts
  • Highly adaptable for upgrades or new installs.
  • Aluminum heatsink provides excellent heat dissipation
  • High Output Citizen COB LED chips
  • Quality mains dimmable driver
  • Low glare design



  • Offices
  • Galleries
  • Retail Displays
  • Hotels
  • Foyers


Standard Specifications

Rated Input Power: 18W Lumen Output: 1930 - 2130lm
Beam Angle: 60° Colour Temperature: 4000K (3000K/5000K optional)
CRI Rating: CRI>80 IP Rating: IP20
SDCM Rating: <6
Trim Cutout: 90-95mm

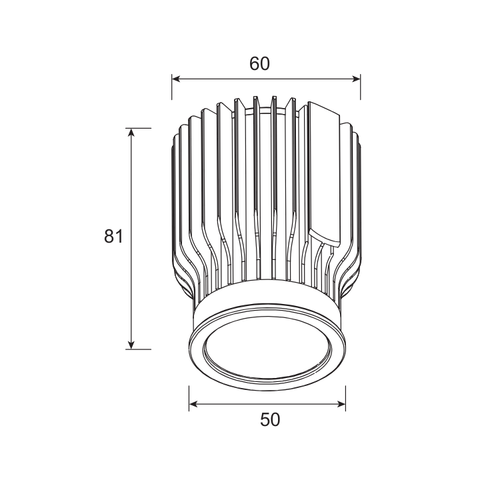

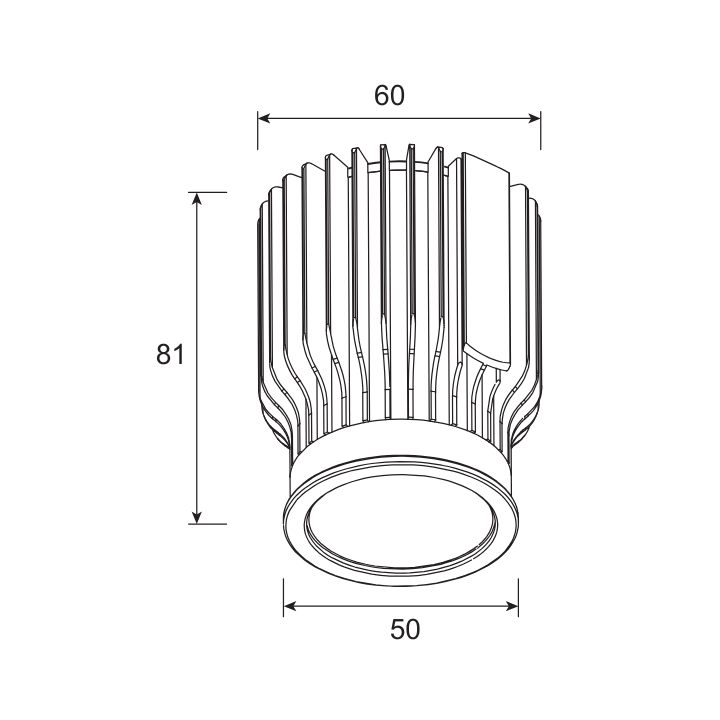

Trim Dimensions: Ø100*45.8mm Trim Colour: Black


Options (add option to end of stock code)

Trim Colour - Silver /SI
Trim Colour - White /WH
DALI Dimming /DALI

Model Links

18W Black Round Trim 90-95mm / 60° 4000K  DLM18SI4KD01 + DLMADP02B


IES Files

IES DLM18SI3KD01 18W 60deg 3000K
IES DLM18SI4KD01 18W 60deg 4000K
IES DLM18SI5KD01 18W 60deg 5000K



Model Option Stock Code Availability
18W Round Trim 90-95mm / 60° / Black / 3000K DLM18SI3KD01 + DLMADP02 Special Order
18W Round Trim 90-95mm / 60° / Black / 4000K DLM18SI4KD01 + DLMADP02 Stock Item
18W Round Trim 90-95mm / 60° / Black / 5000K DLM18SI5KD01 + DLMADP02 Special Order
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
