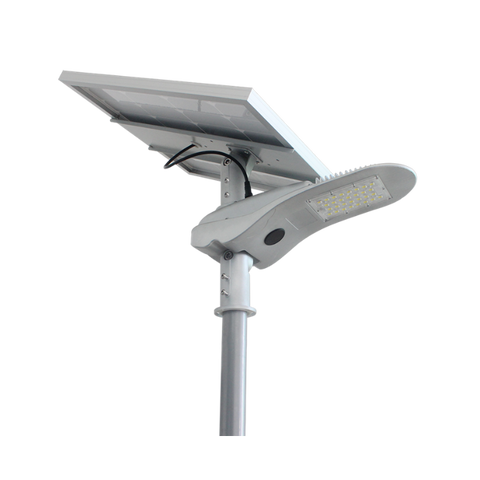

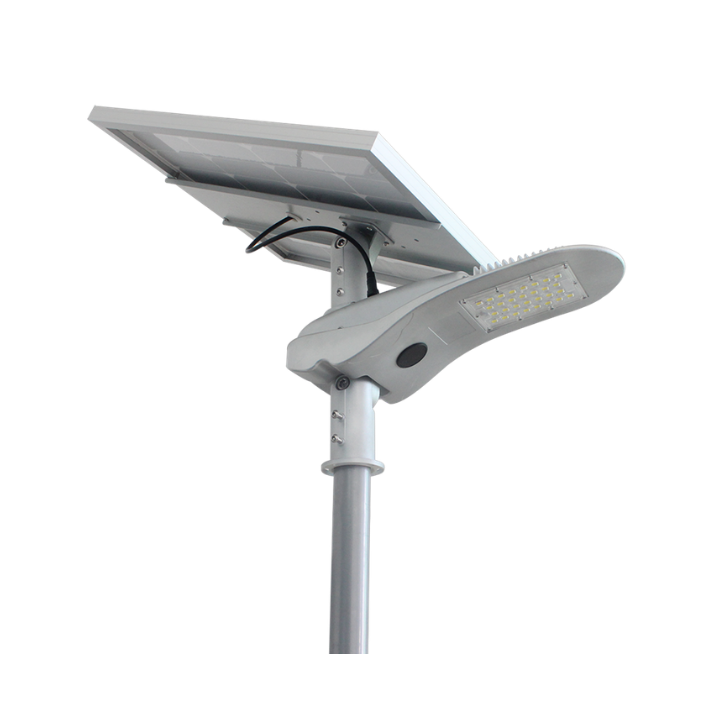

The SS Series LED solar streetlights are the ultimate in flexible standalone streetlighting. The battery and control gear is contained inside the light fitting with the solar panel separate. This allows for full panel orientation to maximise the charge from the sun. This way the light can operate to its full potential for longer periods of time, unlike many other solar streetlights on the market with built-in solar panels, which can dramatically limit the performance.
Features
- IP65 Weatherproof
- CREE LED Chips
- Aluminium and stainless steel construction
- Adjustable horizontal or vertical spigot arm
- Full panel orientation
- 3 days bad weather redundancy
- High quality LiFeP04 battery
- Default mode - 100% dusk to dawn
- Motion sensor mode*
- Programmable via remote* (not included)
Applications
- Carparks
- Walkways
- Estates
- Parks
- Showgrounds
- Temporary Lighting
Standard Specifications
| Rated Input Power: 20W | Lumen Output: 2800lm |
| Colour Temperature: 4000K | CRI Rating: CRI>80 |
| Control: PIR (optional setting) | Battery : LiFePO4 323WH |
| Panel: 90W Monocrystalline | Fitting Dimensions: 60*27*26cm |
| Panel Dimensions: 76*67*4cm | Fitting Weight: 28kg (Fitting+ Panel) |
| Spigot Size: 65mm OD |
IES Files
| IES SS320GR5KN01 20W |
Photometric Chart
 |
Models
| Model Option | Availability | |
|---|---|---|
Silver / 4000K / PIR Stock Code: SS320GR4KN04 |
On Order (check lead times) | |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
NOTE: Recommend a maximum mount height of 6M for projects using the PIR motion functions.
Accessories
| Commissioning Remote | SS3REM04 |
