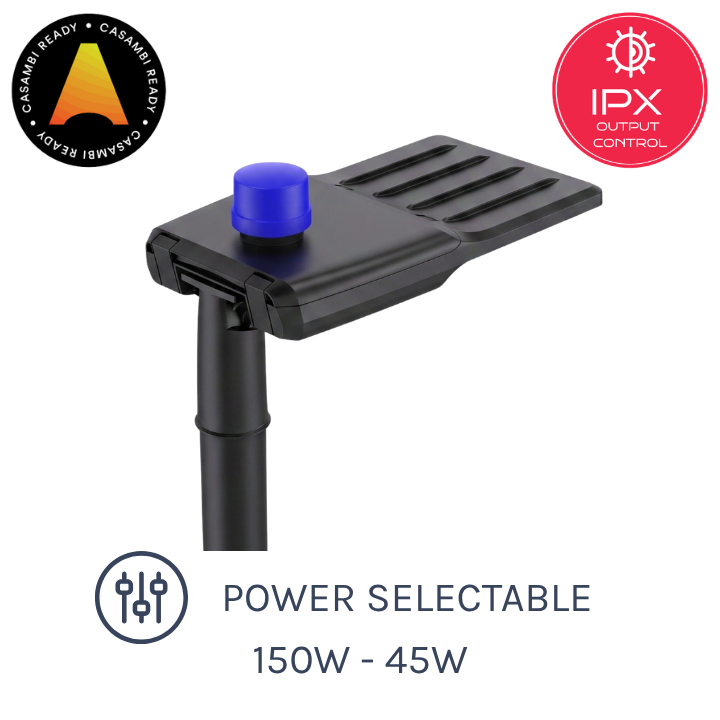

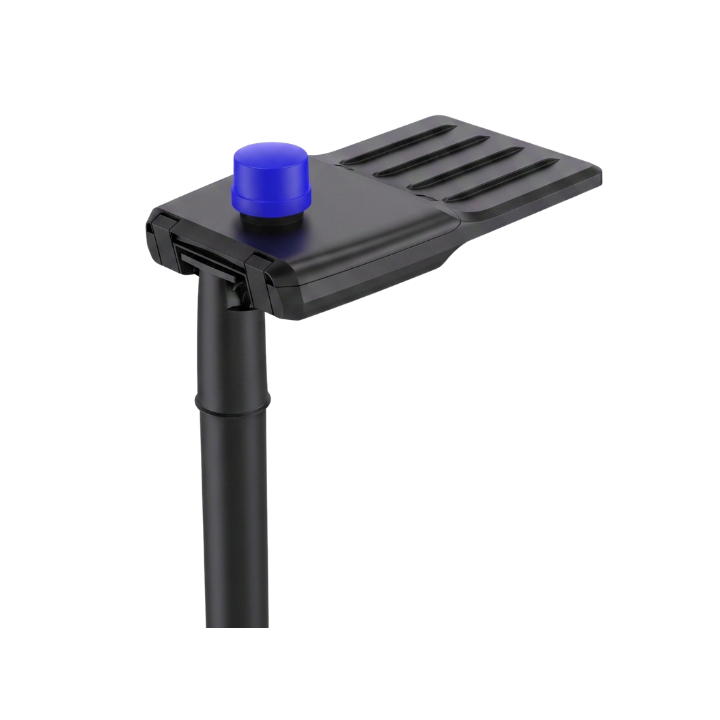

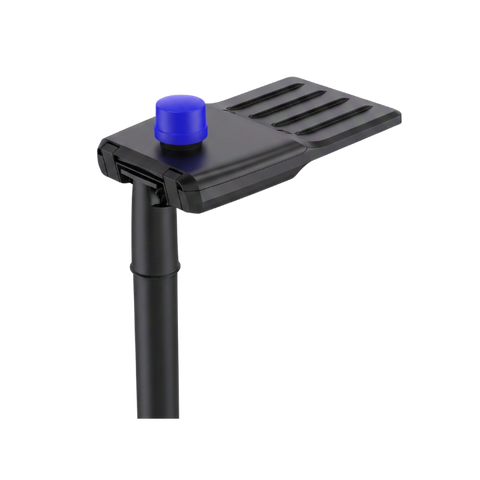

The SL5 Series LED Streetlight by Integrated Power is a compact, field-adjustable LED fitting engineered for a range of outdoor applications including roadways, pathways and carparks. Designed for quick installation, the SL5 includes tool-free access, a 15° tilt-adjustable / reversible spigot arm and a fast plug cabling system. With the addition of Casambi wireless control, users are easily able to interact with and customise their lighting environment.
Features
- Compact design
- PE Cell included
- Robust aluminium alloy construction
- High efficiency, up to 140lm/W
- 2CCT colour selectable
- Polycarbonate optical lens
- Power selectable (45W - 150W)
- 1-10V dimmable driver
- Adjustable 60mm arm for horizontal & vertical spigots
- Casambi ready (Casambi module required)
- IPX output control compatible
- Fast plug cabling system
- 1m lead with moulded plug
- Includes separate 1m lead with moulded socket
Applications
- Roadways
- Car Parks
- Walkways
- Car Yards
- Parks
Standard Specifications
| Input Voltage: 220 - 240 Vac | Rated Input Power: 150W / 115W / 75W / 45W |
| Lumen Output: 21000lm - 19500lm / 16100lm - 14950lm / 10500lm - 9750lm / 6300lm - 5850lm | Colour Temperature: 3000K / 4000K |
| CRI Rating: CRI>80 | Control: 1 - 10V Dimming |
| SDCM Rating: < 5 | Operating Temperature: -30/+50° C |
| EPA (Sail Area): 0.14m² | Service Life: L90B50 / >52,700hrs @ 25°C Ta |
| IP Rating: IP66 | IK Rating: IK09 |
| Fitting weight: 4.4kg +/- 0.3kg |
IES Files
| IES SL5150SI3KD01 150W 3000K |
| IES SL5150SI4KD01 150W 4000K |
| IES SL5150SI3KD01 115W 3000K |
| IES SL5150SI4KD01 115W 4000K |
| IES SL5150SI3KD01 75W 3000K |
| IES SL5150SI4KD01 75W 4000K |
| IES SL5150SI3KD01 45W 3000K |
| IES SL5150SI4KD01 45W 4000K |
Photometric Charts
| 96 x 157° Type II Medium |
 |
Models
| Model Option | Availability | |
|---|---|---|
Black / 2CCT / Power Selectable / PE Cell / Type II Medium Stock Code: SL5P150BKXKD01 |
On Order (check lead times) | |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
Options (add option to end of stock code)
| DALI Dimming | / DALI |
| IPX Output Control (additional hardware required) | / IPX |
| Casambi | / CAS |
Accessories
| 6M Extension Lead | SL5EXT3P06M |
| Spigot Arm Adaptor - 76mm Black | SL5ADP76B |
| 42mm to 34mm Spigot Arm Sleeve | SL5ADP42-34 |
| Rear Glare Shield | SL5150BKGS01 |
| Bridging Cap | SL2BC01 |
