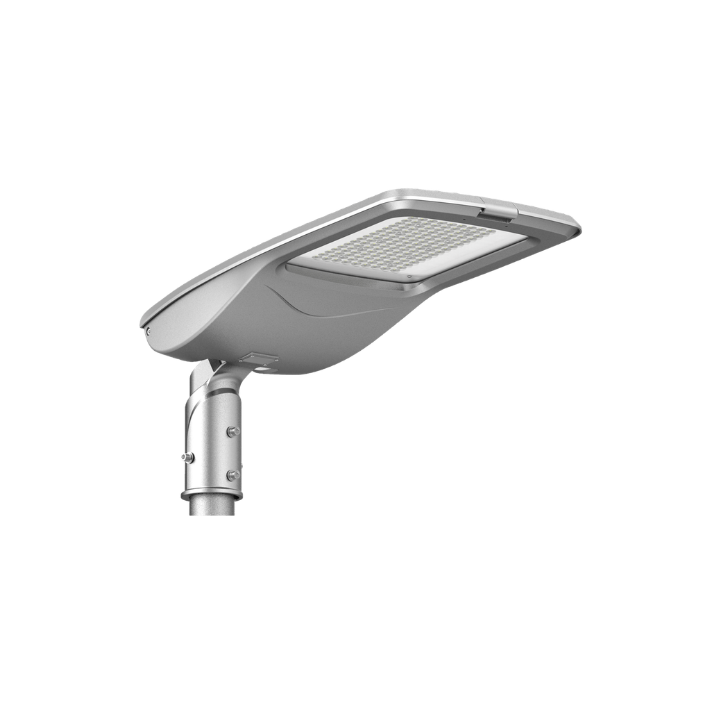

SL2 Series LED Streetlight - 30W Silver

  • Sale

The SL2 Series LED streetlight range offer a reliable and modular LED solution for new installations and retrofits. The high output Nichia LED chips can utilise a ‘Batwing’ distribution lens system to ensure a wide and even spread of light, which is perfect for carparks and roadways. The smooth top surface limits the build up of dirt and debris.


Features

  • High output Nichia LEDs
  • All aluminium and stainless steel fitting construction
  • Tool free, easy fitting access
  • Reversible arm for horizontal and vertical spigots
  • Suits 60mm OD spigot (other sizes available)
  • Auto isolation system
  • PE cell and smart streetlighting options
  • IPX output control compatible


Applications

  • Roadways
  • Carparks
  • Walkways
  • Caryards
  • Parks


Standard Specifications

Rated Input Power: 30W Lumen Output: 3,750lm
Colour Temp Options: 3000K/4000K/5000K CRI Rating: CRI>80
SDCM Rating: < 3 Operating Temperature: -30/+50° C
EPA (Sail Area): 0.136m² Service Life: L90B10 / >50,000hrs @ 63° JT
IP Rating: IP66 IK Rating: IK08
Fitting weight: 4.1kg


Options (add option to end of stock code)

DALI Dimming  /DALI
0-10V Dimming  /0-10
Casambi   /CAS
IPX Output Control (additional hardware required)  /IPX


Accessories

Spigot Arm Adaptor - 34mm SL2ADP34
Spigot Arm Adaptor - 42mm SL2ADP42
Spigot Arm Adaptor - 76mm SL2ADP76
Wall Mount Bracket SL2WADP01
Right Angle Pole Adaptor - 90mm SL2ADP90
Dual Spigot Adaptor - 60mm  SL2ADP60D
Dual Spigot Adaptor - 76mm SL2ADP76D
100mm Square Pole Adaptor - Single Spigot SL2ADP100SQS
100mm Square Pole Adaptor - Double Spigot SL2ADP100SQD
Corner Bracket Adaptor SL2ADPCB01


IES Files

IES SL230SI5KD01 75x150deg 30W
IES SL230SI5KD02 45x155deg 30W
IES SL230SI5KD03 45x145deg 30W


Models

Model Option Stock Code Availability
Silver / 5000K / 75x150 degree SL230SI5KD01 Special Order
Silver / 5000K / 45x155 degree SL230SI5KD02 Special Order
Silver / 5000K / 45x145 degree SL230SI5KD03 Special Order
Silver / 5000K / 50x60 degree SL230SI5KD04 Special Order
Silver / 4000K / 75x150 degree SL230SI4KD01 Stock Item
Silver / 4000K / 45x155 degree SL230SI4KD02 Special Order
Silver / 4000K / 45x145 degree SL230SI4KD03 Special Order
Silver / 4000K / 50x60 degree SL230SI4KD04 Special Order
Silver / 3000K / 75x150 degree SL230SI3KD01 Special Order
Silver / 3000K / 45x155 degree SL230SI3KD02 Special Order
Silver / 3000K / 45x145 degree SL230SI3KD03 Special Order
Silver / 3000K / 50x60 degree SL230SI3KD04 Special Order
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
