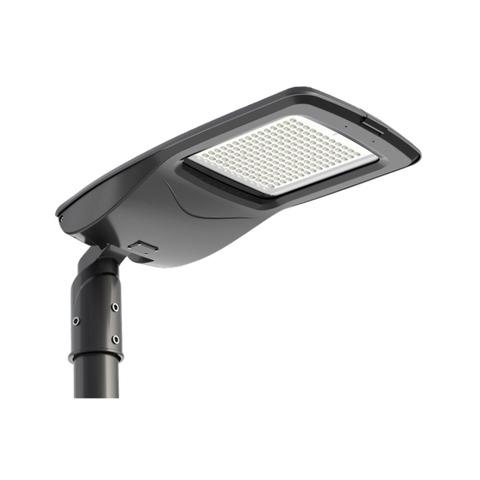

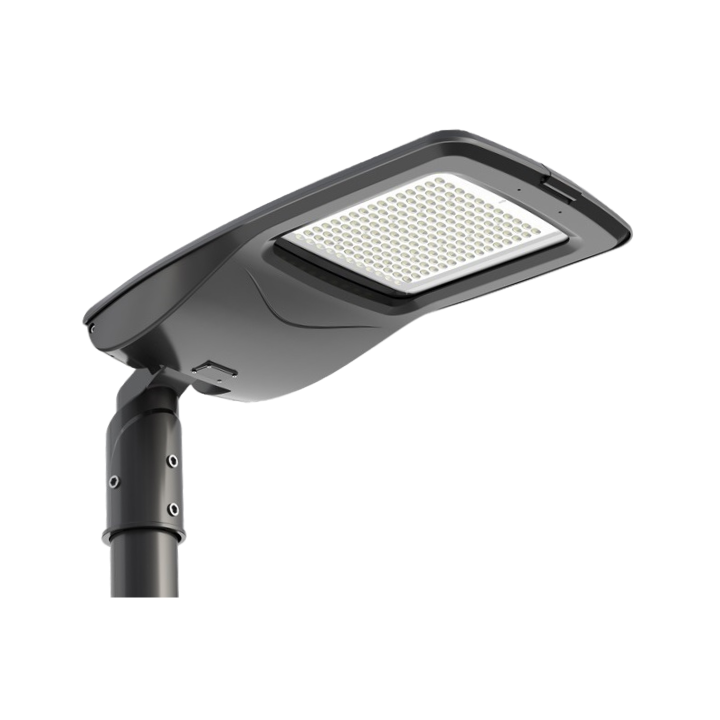

SL2 Series LED Streetlight - 150W Black

  • Sale
  • Regular price


The SL2 Series LED streetlight range offer a reliable and modular LED solution for new installations and retrofits. The high output Nichia LED chips can utilise a ‘Batwing’ distribution lens system to ensure a wide and even spread of light, which is perfect for carparks and roadways. The smooth top surface limits the build up of dirt and debris.

Features

  • High output Nichia LEDs
  • All aluminium and stainless steel fitting construction
  • Tool free, easy fitting access
  • Reversible arm for horizontal and vertical spigots
  • Suits 60mm OD spigot (other sizes available)
  • Auto isolation system
  • PE cell and smart streetlighting options
  • IPX output control compatible


Applications

  • Roadways
  • Carparks
  • Walkways
  • Caryards
  • Parks


Standard Specifications

Rated Input Power: 150W Lumen Output: 19,500lm
Colour Temp Options: 3000K/4000K/5000K CRI Rating: CRI>80
SDCM Rating: < 3 Operating Temperature: -30/+50° C
EPA (Sail Area): 0.269m² Service Life: L90B10 / >50,000hrs @ 63° Tj
IP Rating: IP66 IK Rating: IK08
Fitting weight: 9.2kg



Options (add option to end of stock code)

DALI Dimming  /DALI
0-10V Dimming  /0-10
Casambi   /CAS
IPX Output Control (additional hardware required) /IPX


Accessories

Spigot Arm Adaptor - 34mm Black SL2ADP34B
Spigot Arm Adaptor - 42mm Black SL2ADP42B
Spigot Arm Adaptor - 76mm Black SL2ADP76B
Wall Mount Bracket SL2WADP01
Right Angle Pole Adaptor - 90mm SL2ADP90
Dual Spigot Adaptor - 60mm SL2ADP60D
Dual Spigot Adaptor - 76mm SL2ADP76D
100mm Square Pole Adaptor - Single Spigot SL2ADP100SQS
100mm Square Pole Adaptor - Double Spigot SL2ADP100SQD
Corner Bracket Adaptor SL2ADPCB01


IES Files

IES SL2150SI5KN01 75x150deg 150W
IES SL2150SI5KN02 45x155deg 150W
IES SL2150SI5KN03 45x145deg 150W


Models

Model Option Stock Code Availability
Black / 5000K / 75x150 Degree SL2150BK5KN01 Special Order
Black / 5000K / 45x155 Degree SL2150BK5KN02 Special Order
Black / 5000K / 45x145 Degree SL2150BK5KN03 Special Order
Black / 5000K / 50x60 Degree SL2150BK5KN04 Special Order
Black / 4000K / 75x150 Degree SL2150BK4KN01 Stock Item
Black / 4000K / 45x155 Degree SL2150BK4KN02 Special Order
Black / 4000K / 45x145 Degree SL2150BK4KN03 Special Order
Black / 4000K / 50x60 Degree SL2150BK4KN04 Stock Item
Black / 3000K / 75x150 Degree SL2150BK3KN01 Special Order
Black / 3000K / 45x155 Degree SL2150BK3KN02 Special Order
Black / 3000K / 45x145 Degree SL2150BK3KN03 Special Order
Black / 3000K / 50x60 Degree SL2150BK3KN04 Special Order
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
