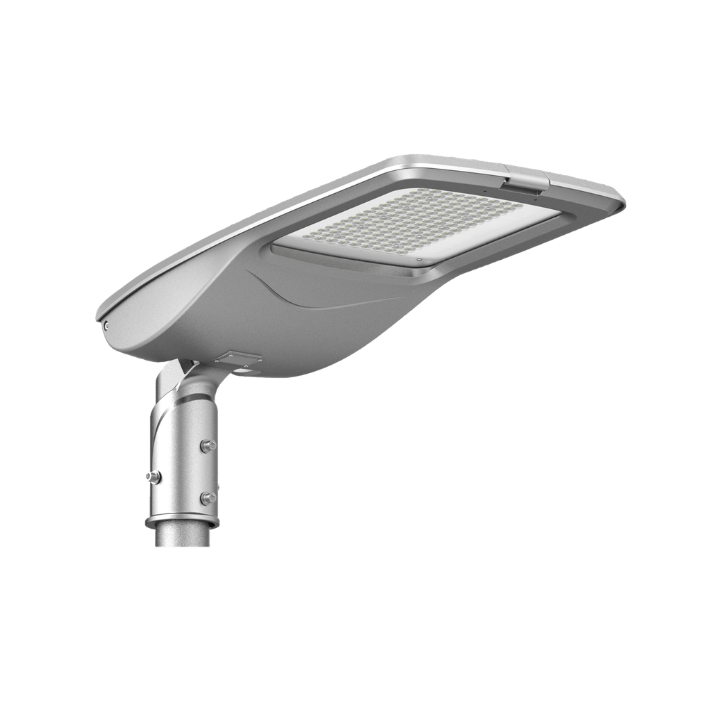

SL2 Series LED Streetlight - 150W Silver

  • Sale
  • Regular price


The SL2 Series LED streetlight range offer a reliable and modular LED solution for new installations and retrofits. The high output Nichia LED chips can utilise a ‘Batwing’ distribution lens system to ensure a wide and even spread of light, which is perfect for carparks and roadways. The smooth top surface limits the build up of dirt and debris.

Features

  • High output Nichia LEDs
  • All aluminium and stainless steel fitting construction
  • Tool free, easy fitting access
  • Reversible arm for horizontal and vertical spigots
  • Suits 60mm OD spigot (other sizes available)
  • Auto isolation system
  • PE cell and smart streetlighting options


Applications

  • Roadways
  • Carparks
  • Walkways
  • Caryards
  • Parks


Standard Specifications

Rated Input Power: 150W Lumen Output: 17,250lm
Colour Temp Options: 3000K/4000K/5000K CRI Rating: CRI>80
Operating Temperature: -30/+50 deg C EPA (Sail Area): 0.269m²
Service Life: L90B10 / >50,000hrs @ 63deg JT Ingress Protection: IP66
IK Rating: IK08 Fitting weight: 9.2kg



Options (add option to end of stock code)

DALI Dimming  /DALI
0-10V Dimming  /0-10



Accessories

Spigot Arm Adaptor - 34mm SL2ADP34
Spigot Arm Adaptor - 42mm SL2ADP42
Spigot Arm Adaptor - 76mm SL2ADP76
Wall Mount Bracket SL2WADP01
Right Angle Pole Adaptor - 90mm SL2ADP90
Dual Spigot Adaptor - 60mm SL2ADP60D
Dual Spigot Adaptor - 76mm SL2ADP76D
100mm Square Pole Adaptor - Single Spigot SL2ADP100SQS
100mm Square Pole Adaptor - Double Spigot SL2ADP100SQD
Corner Bracket Adaptor SL2ADPCB01



IES Files

IES SL2150SI5KN01 75x150deg 150W
IES SL2150SI5KN02 45x155deg 150W
IES SL2150SI5KN03 45x145deg 150W



Models

Model Option Stock Code Availability
Silver / 5000K / 75x150 Degree SL2150SI5KN01 Stock Item
Silver / 5000K / 45x155 Degree SL2150SI5KN02 Special Order
Silver / 5000K / 45x145 Degree SL2150SI5KN03 Special Order
Silver / 5000K / 50x60 Degree SL2150SI5KN04 Special Order
Silver / 4000K / 75x150 Degree SL2150SI4KN01 Special Order
Silver / 4000K / 45x155 Degree SL2150SI4KN02 Special Order
Silver / 4000K / 45x145 Degree SL2150SI4KN03 Special Order
Silver / 4000K / 50x60 Degree SL2150SI4KN04 Special Order
Silver / 3000K / 75x150 Degree SL2150SI3KN01 Special Order
Silver / 3000K / 45x155 Degree SL2150SI3KN02 Special Order
Silver / 3000K / 45x145 Degree SL2150SI3KN03 Special Order
Silver / 3000K / 50x60 Degree SL2150SI3KN04 Special Order
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
