PT9 Series LED Poletop Light - 60W

  • Sale
  • $0.00

The PT9 Series poletops are the latest addition to Integrated Power’s LED poletop range, offering high performance lighting in a sleek, architectural design. Built with flexibility in mind, this series features 3CCT selection and 0 - 10V dimming, giving you full control over your desired lighting result. This stylish new pole top is the perfect choice for commercial outdoor applications, matching existing fittings or new installations.

Features

  • Tri-colour selectable
  • High lumen efficiency
  • 0-10V dimmable
  • Suits 60mm pole spigot
  • Durable powdercoated finish
  • High quality LED chips & drivers
  • Robust aluminium alloy construction
  • 6m 5 core cable
  • C3 corrosion classification (ISO1294)
  • Casambi Ready (Casambi module required)
  • IPX output control compatible


Applications

  • Parks
  • Walkways
  • Education Campus'
  • Council Facilities
  • Courtyards
  • Private Estates
  • Villas


    Standard Specifications

    Input Voltage: 120 - 240 Vac Rated Input Power: 60W
     Lumen Output: 8,100lm Colour Temperature: 3000K/ 4000K/ 5000K
    CRI Rating: CRI>80 Beam Angle: Symmetric
    Control: 0 - 10V Dimming IP Rating: IP66
    IK Rating: IK09 Operating Temperature: -30°C ~ 50°C

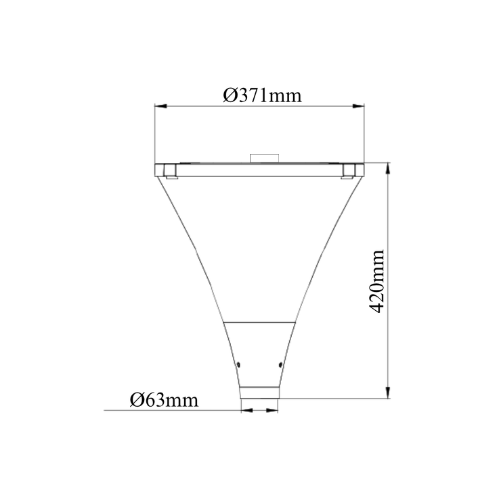

    Service Life: L90 / 54,000 Product Dimensions: Ø371mm x 420mm
    Fitting Weight: 4.6kg ± 0.3kg Zhaga Book 18 interface




    Options List

    Casambi  / CAS
    DALI Dimming / DALI
    IPX Output Control (additional hardware required) / IPX




    Accessories

    76mm-60mm Pole Adaptor - Black PTADP76-60B
    90mm-60mm Pole Adaptor - Black PTADP90-60B



    IES Files

    IES PT960BK4KD01C 60W 4000K



    Photometric Charts





    Models

    Model Option Stock Code Availability
    Black / 3CCT / Type V Short PT960BKXKD01C On Order (check lead times)
    Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm.
