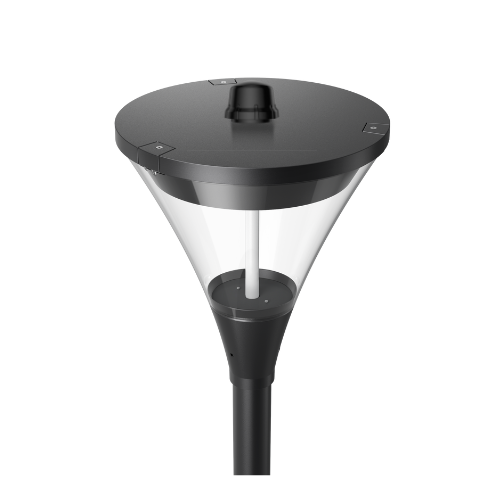

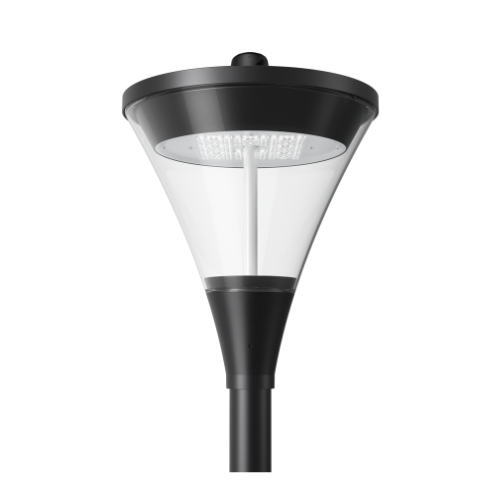

The PT9 Series poletops are the latest addition to Integrated Power’s LED poletop range, offering high performance lighting in a sleek, architectural design. This stylish new pole top is the perfect choice for commercial outdoor applications, matching existing fittings or new installations. The addition of Casambi wireless control allows users to experience smart lighting via the Casambi App giving you full control right at your fingertips.
Features
- Tri-colour selectable
- High lumen efficiency
- Suits 60mm pole spigot
- Durable powdercoated finish
- High quality LED chips & drivers
- Robust aluminium alloy construction
- 6m 5 core cable
- C3 corrosion classification (ISO1294)

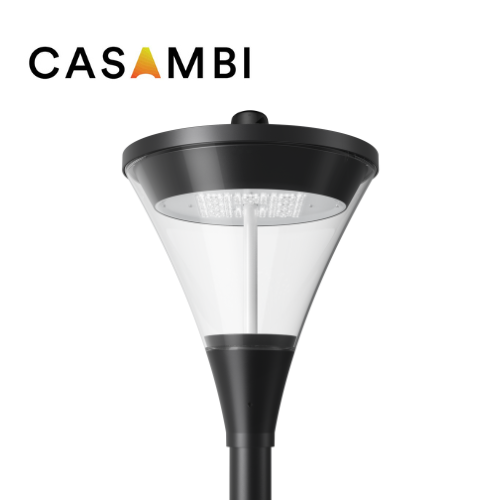

- Casambi enabled
Applications
- Parks
- Walkways
- Education Campus'
- Council Facilities
- Courtyards
- Private Estates
- Villas
Standard Specifications
| Input Voltage: 120 - 240 Vac | Rated Input Power: 60W |
| Lumen Output: 8,100lm | Colour Temperature: 3000K/ 4000K/ 5000K |
| CRI Rating: CRI>80 | Beam Angle: Symmetric |
| Control: Casambi | IP Rating: IP66 |
| IK Rating: IK09 | Operating Temperature: -30°C ~ 50°C |

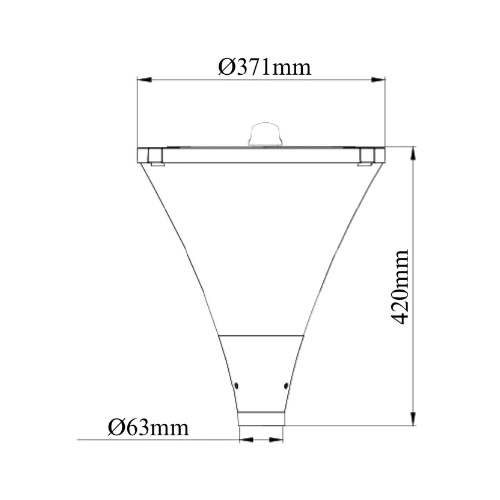

| Service Life: L90 / 54,000 | Product Dimensions: Ø371mm x 420mm |
| Fitting Weight: 4.6kg ± 0.3kg | Zhaga Book 18 interface to Casambi |
Accessories
| 76mm-60mm Pole Adaptor - Black | PTADP76-60B |
| 90mm-60mm Pole Adaptor - Black | PTADP90-60B |
IES Files
| IES PT960BK4KD01C 60W 4000K |
Photometric Charts
 |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| Black / 3CCT / Type V Short / Casambi | PT9C60BKXKD01 | On Order (check lead times) |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
