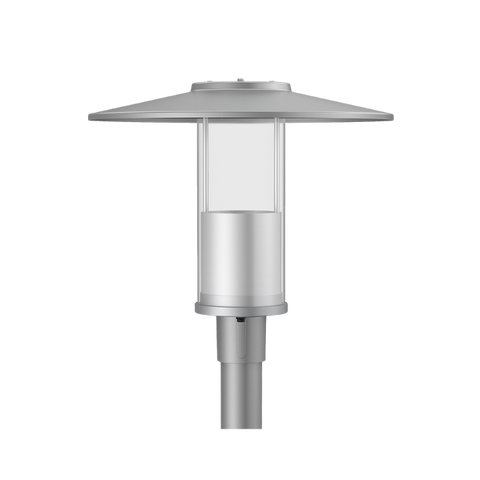

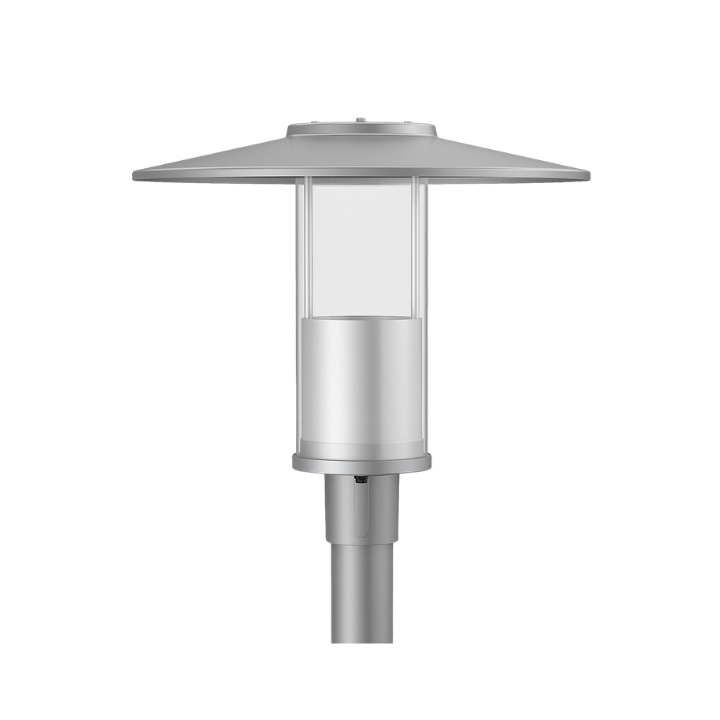

The PT7 Series 1 is the newest edition to Integrated Power's family of heritage and contemporary designed poletop fittings. With its classic look and indirect lighting, the PT7 aids with visual comfort. Available with wide and narrow symmetrical distribution options.
Features
- Classic design
- Robust materials and build quality
- Durable powder coat finish
- Wide symmetrical optics
- Comfortable indirect lighting
- 76mm spigot adaptor
- 0-10V dimming
- Colour temperature selectable
- Fitting with 6m, 5-core cable
- IPX output control compatible
Applications
- Parks
- Walkways
- Education Campus
- Council Facilities
- Courtyards
- Private Estates
Standard Specifications
| Input Voltage: 100 - 240 Vac, 50/60Hz | Rated Input Power: 40W |
| Lumen Output: 4400lm | Beam Angle: Symmetric |
| Colour Temperature: 3CCT (3000K, 4000K, 5000K) | CRI Rating: CRI>80 |
| SDCM Rating: < 5 | IP Rating: IP66 |
| IK Rating: IK08 | Operating Temperature: -30°C to 50°C |
| Service Life: >93,000hrs (L80 @ Ta 25°C) | Fitting Weight: 4.66kg |
| Dimensions: 550 x 550 x 505mm |
Option List
| IPX Output Control (additional hardware required) | /IPX |
IES Files
| IES PT740SI4KD01 4000K 40W |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| Silver / 3CCT / Symmetric | PT740SIXKD01 | Stock Item |
| Special order products typically have an 12-14 week lead time. Minimum order qty's may apply. | ||
