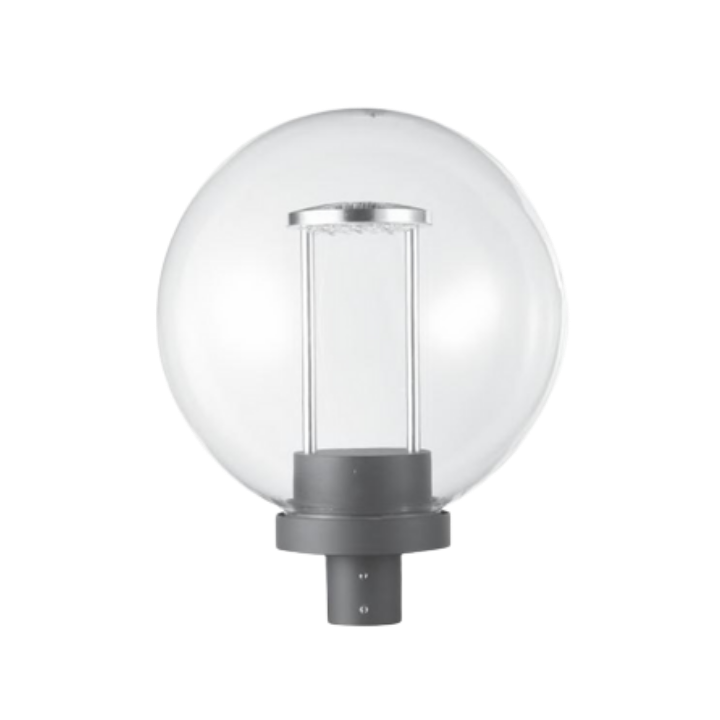

PT6 Series LED Poletop Lights Clear Diffuser - 45W

  • Sale
  • Regular price

The PT6 Series is a stylish edition to Integrated Power's family of heritage and contemporary designed poletop fittings. With its classic look and indirect lighting, the PT6 provides visual comfort and easy viewing. The PT6 allows for the base and gear compartment to be removed for easy access to the driver.


  • Classic design
  • Robust materials and build quality
  • UV resistant powder coat finish
  • Corrosion resistant high pressure aluminium
  • Comfortable visual effect
  • 76mm spigot adaptor (60mm optional)
  • Opal polycarbonate diffuser
  • Standard Colour: RA7022
  • IPX output control compatible


  • Parks
  • Walkways
  • Education Campus
  • Council Facilities
  • Courtyards
  • Private Estates
  • Caravan Parks

Standard Specifications

Rated Input Power: 45W Lumen Output: 5250lm
Colour Temperature: 4000K (3000K, 5000K optional)  CRI Rating: CRI>80
IP Rating: IP66 IK Rating: IK10



Spigot Adaptor - 60mm / Silver PT6ADP60

Option List

0 - 10V Dimming /DIM
DALI Dimming  /DALI
IPX Output Control (additional hardware required) /IPX

IES Files

IES PT645GR3KD01 45W 3000K
IES PT645GR4KD01 45W 4000K
IES PT645GR5KD01 45W 5000K


Model Option Stock Code Availability
Grey / 3000K / Clear Diffuser PT645GR3KD01 Special Order
Grey / 4000K / Clear Diffuser PT645GR4KD01 Special Order
Grey / 5000K / Clear Diffuser PT645GR5KD01 Special Order
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
