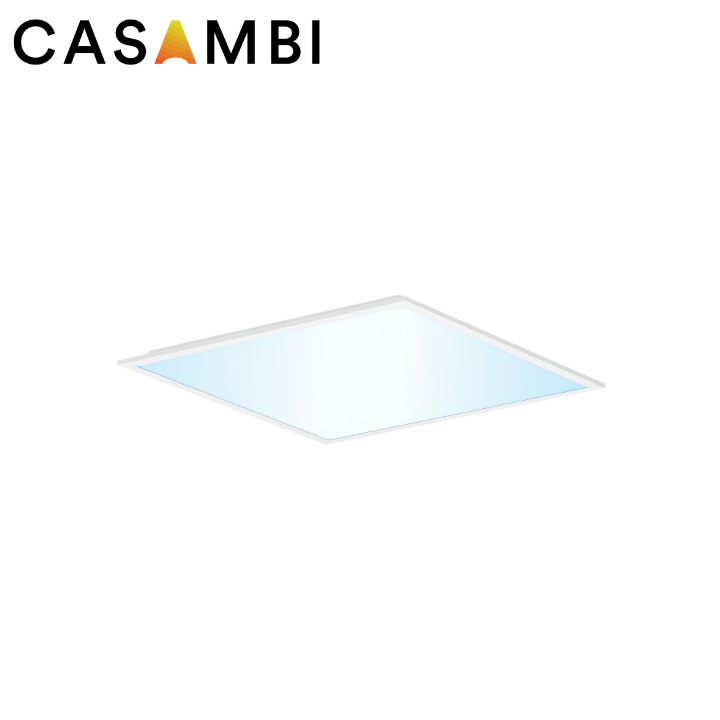

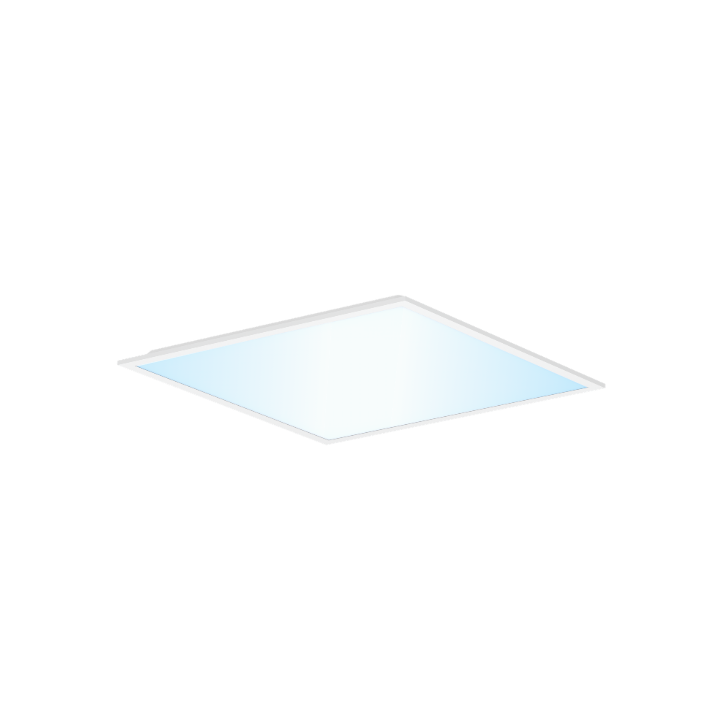

PB Series Casambi RGB Tuneable White LED Panels 40W - 600x600mm

  • Sale
  • Regular price


The PB Series RGB tuneable white LED Panels by Integrated Power invite you into the world of smart controlled lighting. They are a stylish troffer replacement for standard grid ceilings as they balance a high output with a clean, even light distribution, and full colour control. Perfect for either retrofits or new buildings. Through the power of Casambi smart technology, users are able to customise their desired outcome though luminaire dimming, grouping, scheduling and so much more.


Features

  • RGB colour plus tuneable white
  • High quality LED chips & drivers
  • Wide beam SMD LED technology
  • Multiple mounting options
  • Human centric lighting capable
  • UGR<19 low glare available
  • Casambi wireless smart control
  • Casambi module and power supply are a required accessory

Applications

  • Offices
  • Foyers
  • Schools
  • Retail Stores
  • Shopping Centres
  • Commercial Buildings
  • Gyms
  • Therapy Rooms


Standard Specifications

Rated Input Power: 40W Lumen Output: 3600lm (CW)
Colour Temperature: 2700K - 6500K + RGB CRI Rating: CRI>80
SDCM Rating: <6 Beam Angle: 120° (90° Low Glare)
IP Rating: IP20 Operating Temperature: -20°C ~ 45°C
Dimensions: 595 x 595 x 30mm Fitting Weight: 1.72kg ± 0.3kg
Smart Control: Casambi


About Casambi

The Casambi solution is based on Bluetooth Low Energy, the state-of-the-art wireless technology and the only low power wireless technology in all modern smartphones and tablets, making it the only mainstream and future-proof low power radio technology in the world.

 For more information on Casambi visit - www.casambi.com

Options

Low Glare /PBC172WHRGBTW02


Accessories

Single Panel Control Kit
4 x Panel Control Kit
50W Power Supply 24Vdc
200W Power Supply 24Vdc
2M Extension Lead SP2MRGBEXT6C01
Casambi PWM-5 Pro PWM5-PRO
Casambi Single Kinetic Switch CASKS1WH01
Casambi Double Kinetic Switch CASKS2WH01
Surface Mount Kit PB1WHN03
Recessed Kit PA1WHN04


IES Files

PB172WHRGBTW01 600x600 3000K 40W
PB172WHRGBTW01 600x600 4000K 40W
PB172WHRGBTW01 600x600 5000K 40W





Models

Model Option Stock Code Availability
White / RGBTW / Standard Special Order
White / RGBTW / Low Glare Special Order
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
