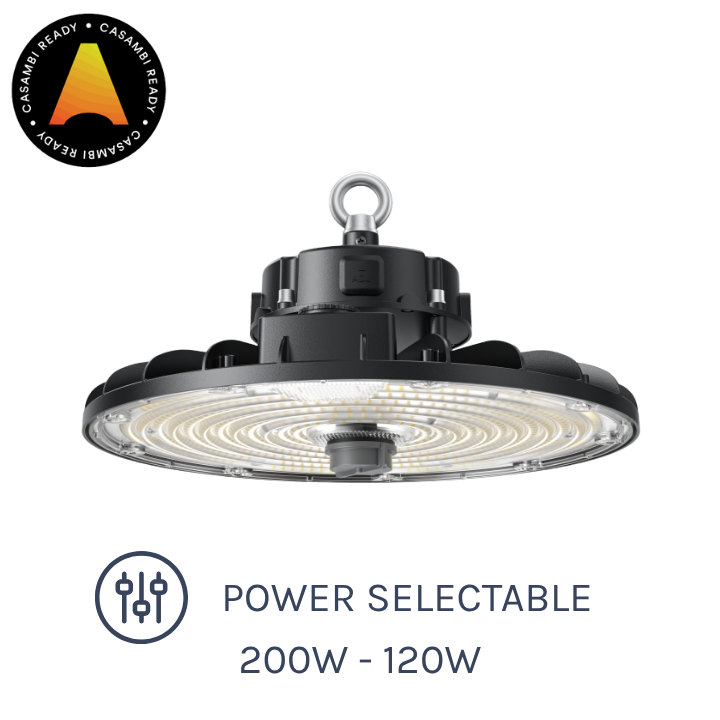

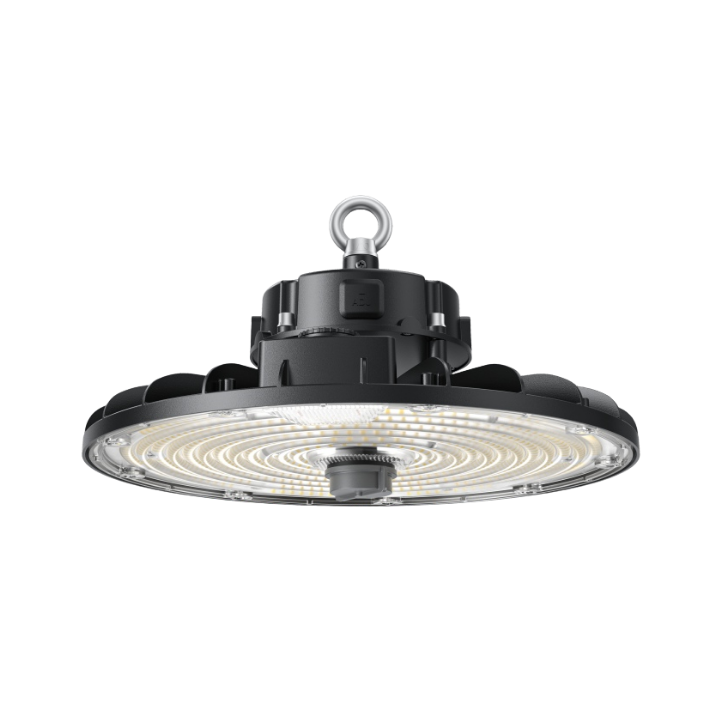

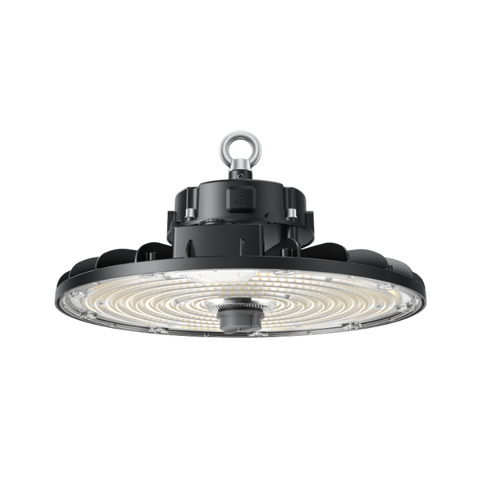

The HBM Series 3 LED highbay from Integrated Power is the ideal solution for industrial spaces. Engineered with built-in DIP switches for flexible power, colour temperature and beam angle control, this versatile fixture dramatically reduces the need for customised products. Delivering up to a remarkable 170lm/W luminous efficacy, this highbay adapts to your space dynamically.
Features
- High output 170lm/W LED chips
- Polycarbonate optical lens
- Robust aluminium alloy construction
- Power selectable driver
- Beam adjustable lens
- 3CCT colour selectable
- Zhaga Book 18 interface
- 1.5m cable with Australian plug
- Casambi Ready (module required)
Applications
- Warehouses
- Factories
- Gymnasiums
- Workshops
- Showrooms
Standard Specifications
| Rated Input Voltage: 220 - 240 Vac | Rated Input Power: 200W / 160W / 120W |
| Lumen Output: 31,500lm - 34,000lm @ 200W | Colour Temperature: 3000K / 4000K / 5000K |
| CRI Rating: CRI>80 | SDCM Rating: < 5 |
| Beam Angle: 115° / 85° / 70° | Control: 0 - 10V Dimming (Zhaga Socket) |
| IK Rating: IK08 | IP Rating: IP65 |
| Operating Temp: 0°C to 50°C | Service Life: 72,300hrs (@25° - L90B50) |

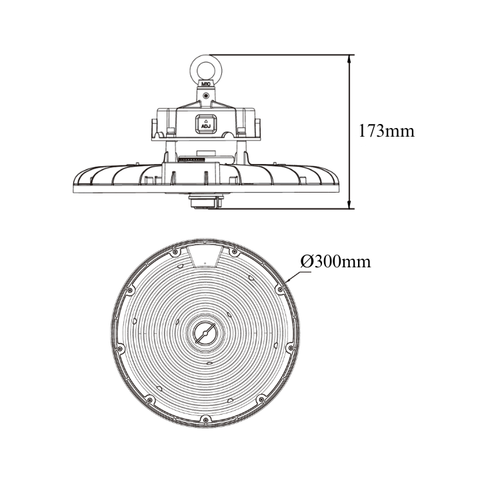

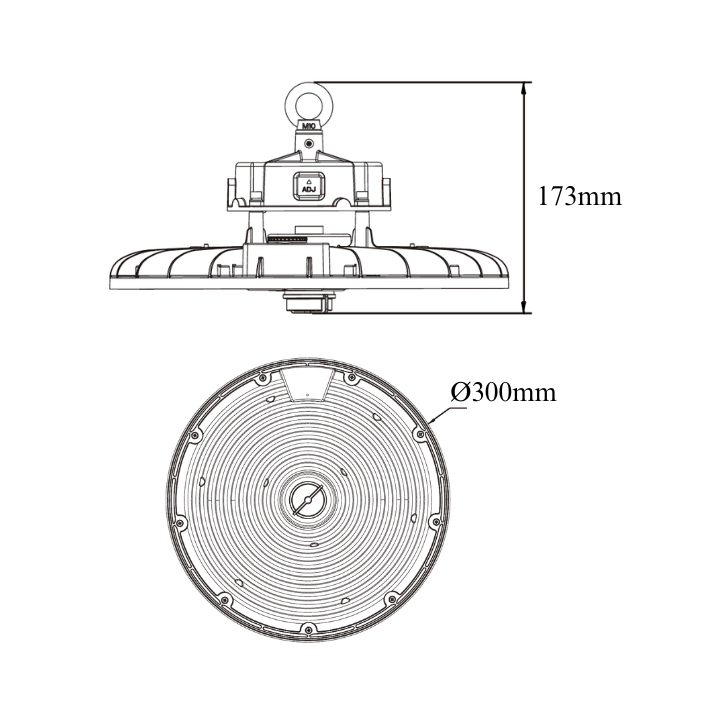

| Dimensions: ⌀300 x 173mm | Fitting Weight: 2.1kg (±0.3kg) |
IES Files
| IES HBM3200BK5KD01 115 Deg - 200W |
| IES HBM3200BK5KD01 85 Deg - 200W |
| IES HBM3200BK5KD01 70 Deg - 200W |
| Please contact us for IES Files |
Photometric Charts
| 115° | 85° |
 |
|
| 70° | |
 |
|
Models
| Model Option | Availability | |
|---|---|---|
Black / 3CCT / 200W Stock Code: HBM3200BKXKD01 |
Stock Item | |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
Accessories
| Polycarbonate Diffuser Kit | HBM1DK01 |
