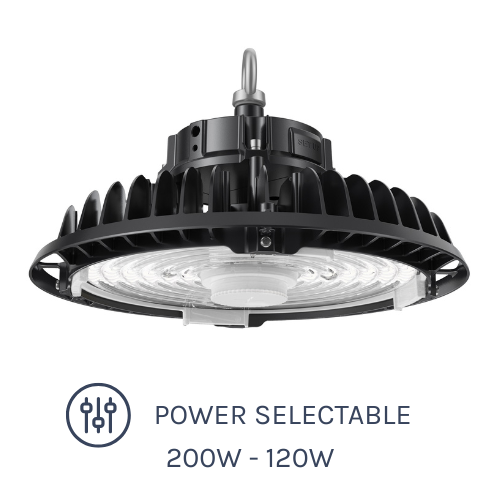

Integrated Power's HBM Series 2 LED highbays are the latest edition to the highbay range. Designed with power, colour and beam angle selections as a standard feature, gives you 18 different options in 1 model. The HBM highbay can be adjusted from 200W down to 120W with wide, medium and narrow beam angles to suit most warehouse lighting requirements.
Features
- High output 150lm/W LED chips
- Power selectable driver
- High lumen efficiency
- Adjustable lens (Wide/Medium/Narrow)
- 2CCT selectable
- 1.5m cable with Australian plug
- Carabiner clip included
- Plug n Play motion sensor option
Applications
- Warehouses
- Factories
- Gymnasiums
- Workshops
Standard Specifications
| Rated Input Voltage: 100 - 240 Vac | Rated Input Power: 200W / 160W / 120W |
| Lumen Output: 30,000lm @ 200W | Colour Temperature: 4000K / 5000K |
| CRI Rating: CRI>80 (CRI>85 / GS) | SDCM Rating: < 5 (*SDCM < 3 / GS) |
| Beam Angle: 105° / 85° / 70° | IK Rating: IK08 |
| IP Rating: IP65 | Operating Temp: 0°C to 50°C |
| Service Life: 83,000hrs (25°C@L80) | Dimensions: ⌀295 x 187mm |
| Fitting Weight: 3.6kg (±0.3kg) |
IES Files
| IES HBM2200BK5KD01 105 Deg - 200W |
| IES HBM2200BK5KD01 85 Deg - 200W |
| IES HBM2200BK5KD01 60 Deg - 200W |
Photometric Charts
| 105° |
 |
| 85° |
 |
| 60° |
 |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| 200W / 2CCT Selectable | HBM2200BKXKD01 | Stock Item |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
Accessories
| Polycarbonate Diffuser Kit | HBM2DK01 |
|
Adjustable Tilt Bracket |
HBM2BL01 |
| Microwave Motion Sensor | HBM2MS01 |
| Motion Sensor Remote | HBM2MSR01 |
Option List
| DALI Dimming | / DALI |
| Greenstar Specification* | / GS |
