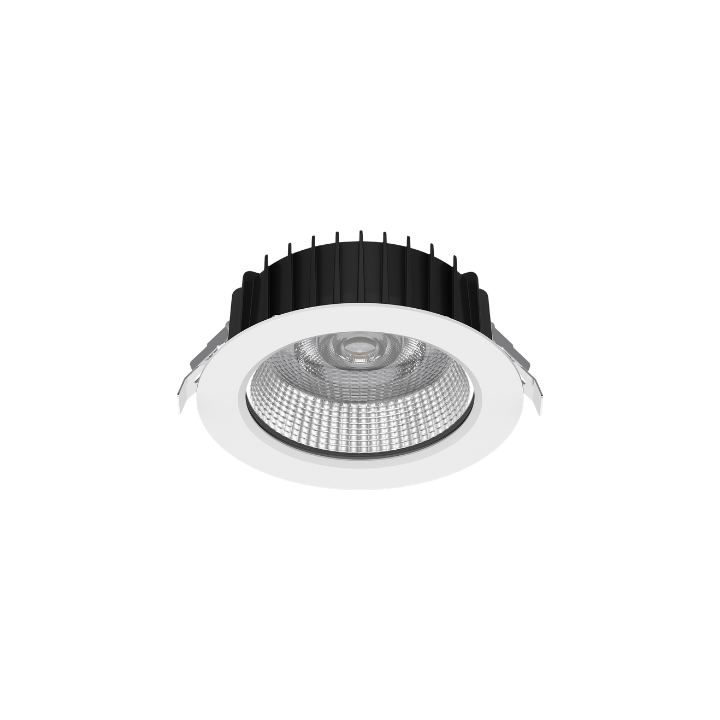

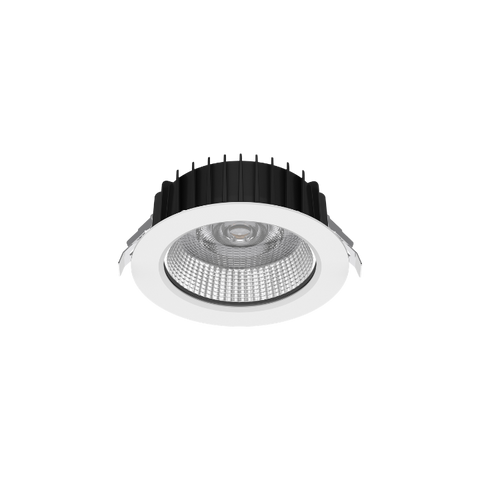

Introducing the DLP Series, Integrated Powers' latest addition to their downlight range. This downlight features a traditional deep reflector design, ensuring high lumen efficiency without compromising performance. With excellent colour rendering (CRI80) and robust, IP65 waterproof protection, it is an ideal choice for commercial and versatile lighting applications.
Features
- High lumen efficiency
- Flicker free driver
- High quality COB LED driver
- Tempered glass cover
- Cyanosis option available
- Waterproof design
- Aluminium die-casting materials
- Dimming options
Applications
- Offices
- Supermarkets
- Retail
- Indoor Swimming Pools
- Shopping Malls
- Food Processing Plants
Standard Specifications
| Input Voltage: 220 - 240 Vac | Rated Input Power: 10W |
| Lumen Output: 850lm - 1050lm | Colour Temperature: 3000K / 4000K / 5000K |
| Beam Angle: 60° (24°, 36° options available) | Control: Triac Dimming |
| CRI Rating: CRI>80 | COI Rating: COI<3.3 (cyanosis only) |
| SDCM Rating: <6 | UGR Capacity: UGR <24 |
| IP Rating: IP65 | IK Rating: IK06 |
| Operating Temperature: - 20°C ~ 45°C | Cutout: ⌀90 - 95mm |

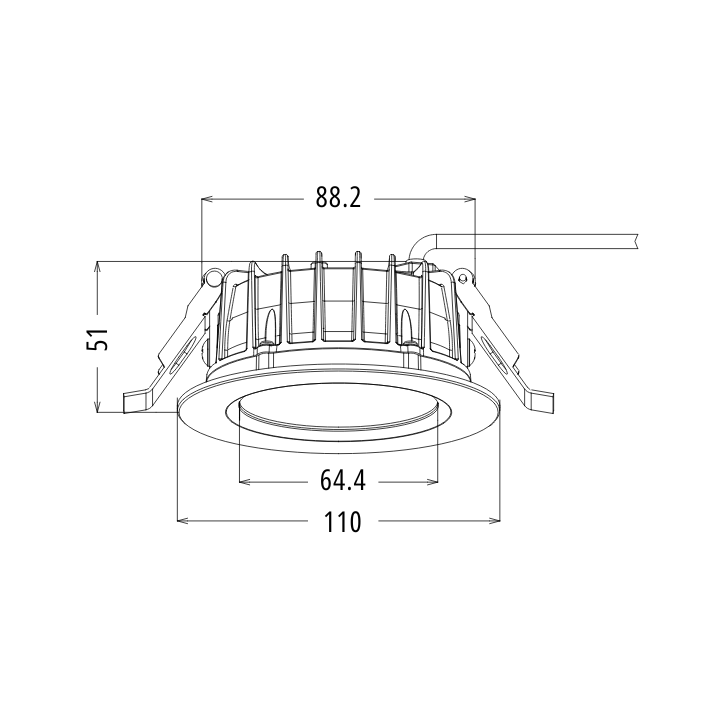

| Dimension: ⌀110*51mm | Fitting Weight: 0.34kg ± 0.3kg |
IES Files
| IES DLP10WH4KD01 10W 4000K 60D |
Photometric Chart
| 60° |
 |
Models
| Model Option | Availability | |
|---|---|---|
White / 4000K / 60 DEG Stock Code: DLP10WH4KD01 |
On Order (check lead times) | |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
Options (add option to end of stock code)
| DALI Dimming | /DALI |
| Cyanosis | /CY |
