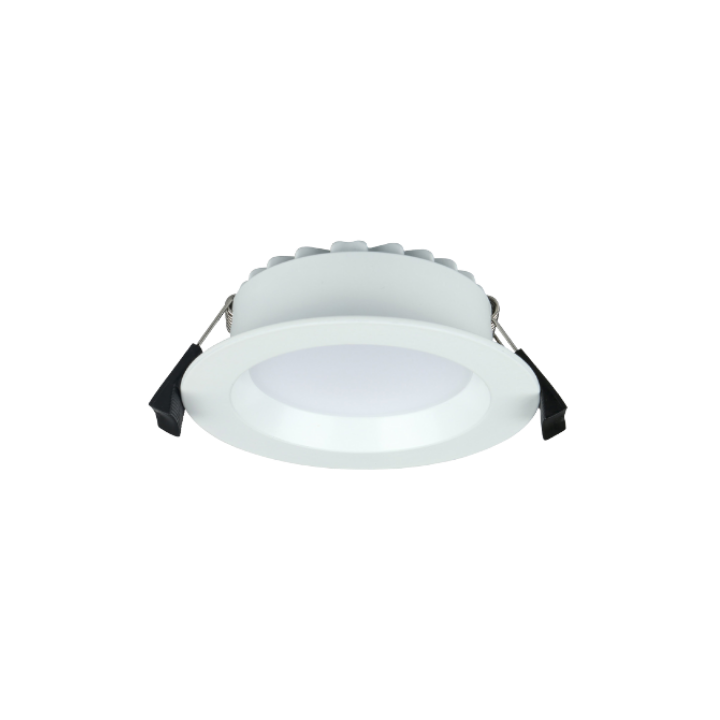

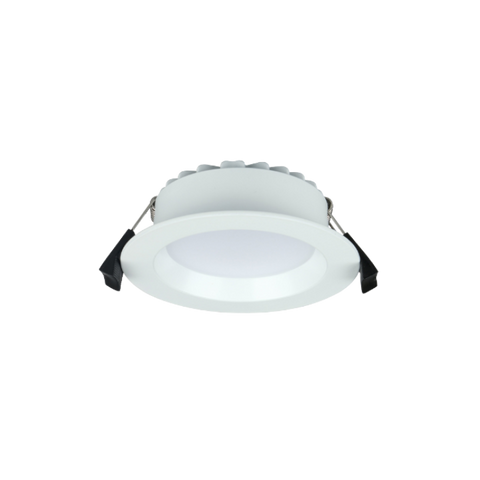

Integrated Power’s DLB Series LED downlights are a cost effective and functional tri-colour downlight. With great colour rendition (CRI80+) and compatibility with a wide range of Australian dimmers, they are the perfect choice for a wide range of lighting applications.
Features
- Wide beam SMD LED technology
- High output Samsung LED chips
- High quality separate dimmable driver
- IP54 when installed
- Remote driver option up to 10m (With optional DC extension cable)
- IC-4 compliant (can be covered in non-flammable insulation)
Applications
- Residential
- Offices
- Foyers
- Passageways
- Bathrooms
- Patios
Standard Specifications
| Input Voltage: 200 - 240 Vac | Rated Input Power: 10W |
| Lumen Output: 900-1120lm | Beam Angle: 90° |
| Colour Temperature: 3000K /4000K /5700K | CRI Rating: CRI>80 |
| SDCM Rating: < 6 | Operating Temperature: -20°C ~ 45°C |
| IC Rating: IC-4 | IP Rating: IP54 |
| Cutout: Ø90-95mm | Dimensions: Ø110 x 38mm |
| Fitting Weight: 0.30kgs |
Accessories
| 10M DC Extension Cable | DLB10DCEXT10M |
IES Files
| IES files available on request |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| White / 3CCT | DLB10WHXKD01 | Stock Item |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
