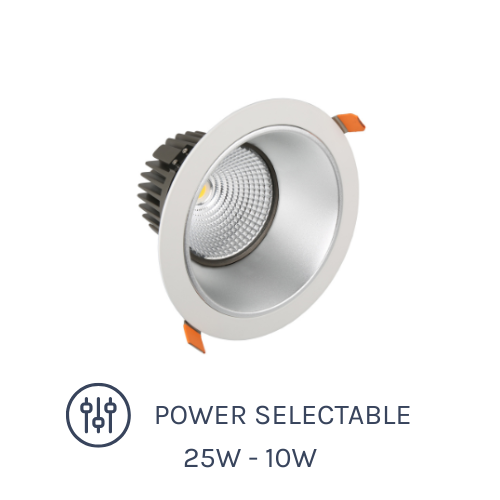

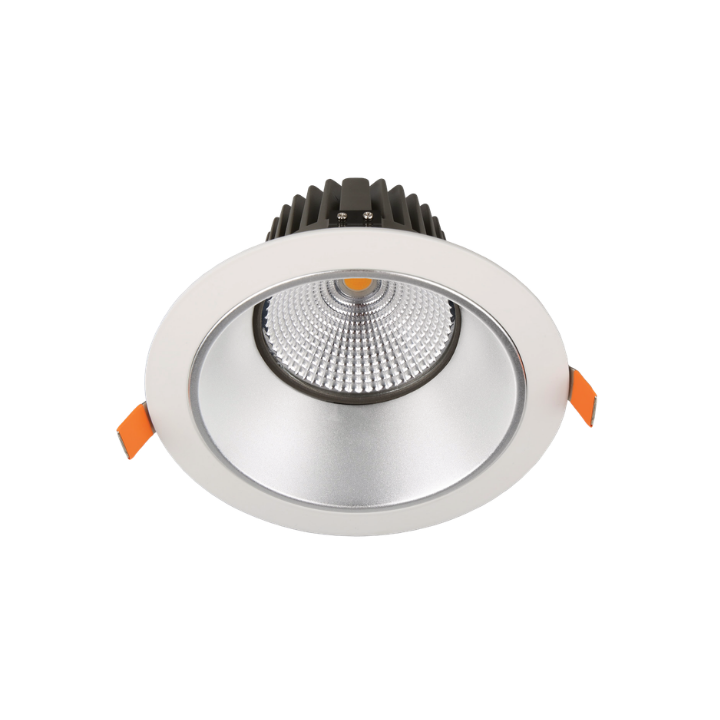

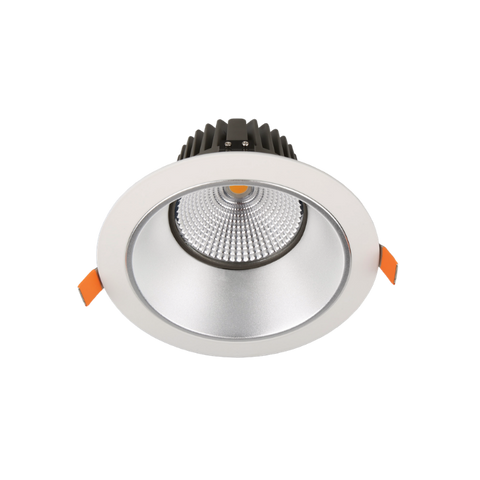

Integrated Power's DLA Series LED downlights offer a high spec, low glare option in a compact, stylish fitting. With great colour rendition (CRI80+) they are the perfect choice for commercial lighting applications with low glare requirements. Now more project adaptable than ever, the power selectable driver allows lower output with the larger cutout.
Features
- Low Glare Design
- UGR <19 Capable
- High Quality Citizen LED chips
- Dimmable
- Power Selectable 10W - 25W
Applications
- Offices
- Libraries
- Foyers
- Passageways
Standard Specifications
| Input Voltage: 200 - 240 Vac | Rated Input Power: 10W - 25W |
| Lumen Output: 2025lm - 2295lm | Beam Angle: 36° |
| Colour Temperature: 3000K/4000K/5000K | CRI Rating: CRI>80 |
| SDCM Rating: <6 | Operating Temperature: -20°C ~ 45°C |
| IP Rating: IP20 | Cutout: 165-180mm |

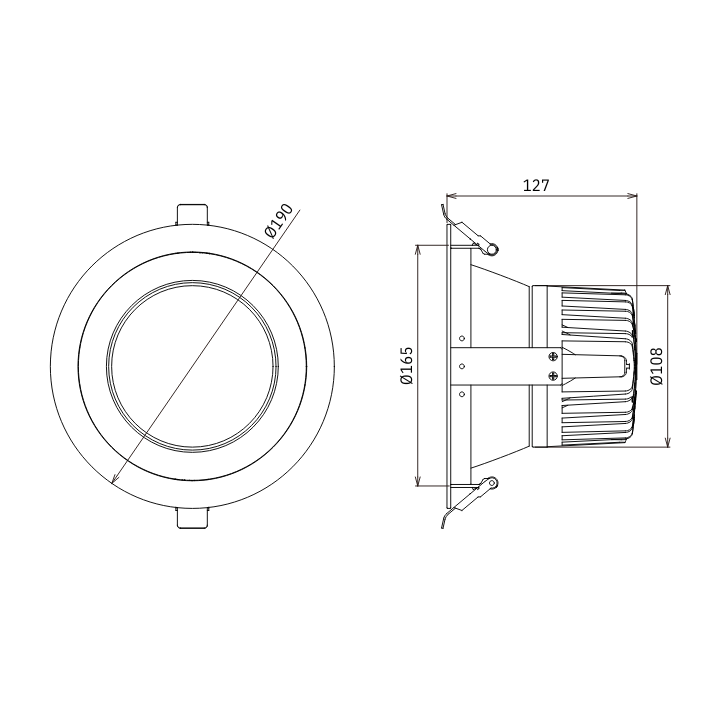

| Dimensions: ⌀190*127mm | Fitting Weight: 0.85kg (± 0.3kg) |
IES Files
| IES DLA25WH4KN01 25W |
Photometric Chart
 |
Models
| Model Option | Availability | |
|---|---|---|
White / 3000K Stock Code: DLA25WH3KD02 |
Special Order | |
White / 4000K Stock Code: DLA25WH4KD02 |
Stock Item | |
White / 5000K Stock Code: DLA25WH5KD02 |
Special Order | |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
Options (add option to end of stock code)
| DALI Dimming | /DALI |
