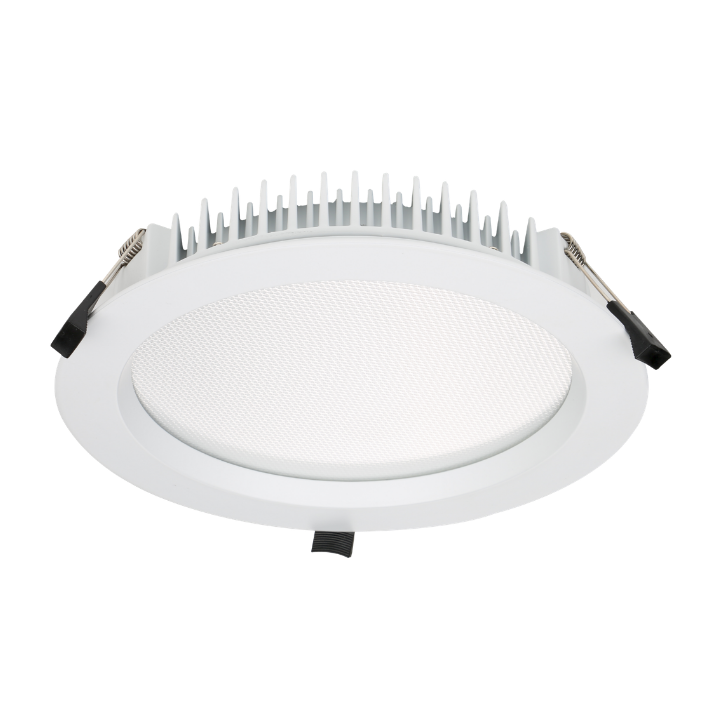

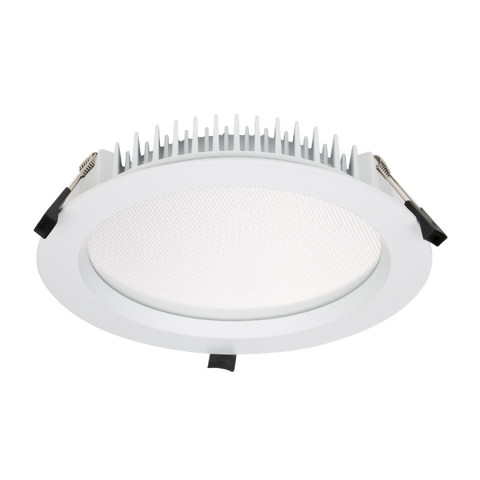

Integrated Power’s DL Series LED downlights offer high spec features in a compact, stylish fitting. With great colour rendition (CRI80+) and compatibility with a wide range of Australian dimmers, they are the perfect choice for a wide range of lighting applications.
Features
- Wide beam SMD LED technology
- High output LED chips
- Power Selectable
- IP54 when installed
- Flicker free driver
- Tri-colour selectable
Applications
- Residential
- Offices
- Foyers
- Passageways
- Bathrooms
Standard Specifications
| Input Voltage: 200 - 240 Vac | Rated Input Power: 20W - 45W |
| Lumen Output: 3820lm - 4450lm | Colour Temperature: 3000K / 4000K / 5700K |
| Beam Angle: 90° | CRI Rating: CRI>80 (*CRI > 85 / GS) |
| SDCM Rating: < 3 (lower bins available) | IP Rating: IP54 |

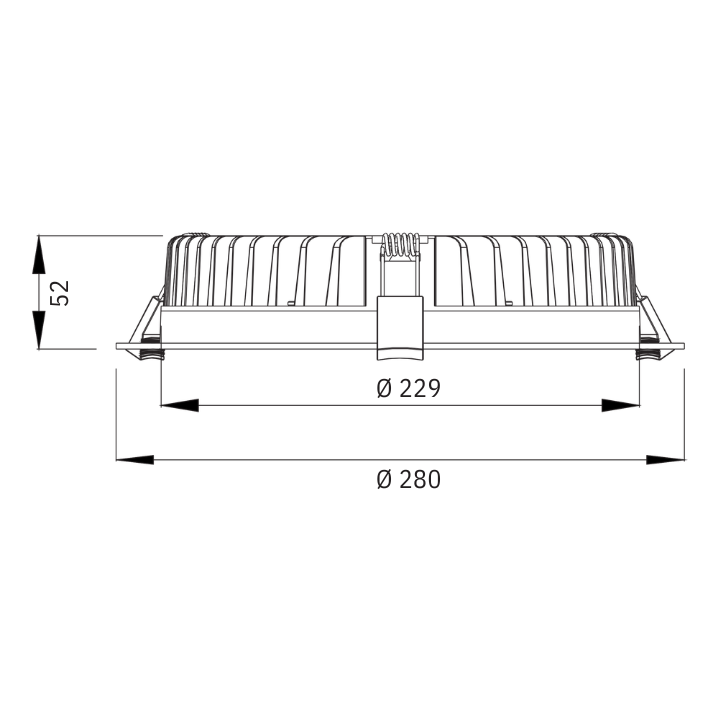

| Cutout: 230 - 260mm | Dimension: ⌀280x52mm |
| Fitting Weight: 1.7kgs |
Options (add option to end of stock code)
| Mains Dimmable | /DIM |
| DALI Dimming | /DALI |
| Greenstar Specifications | /GS |
Accessories
IES Files
| IES DL45WH3KN01 45W 3000K |
| IES DL45WH4KN01 45W 4000K |
| IES DL45WH5KN01 45W 5700K |
Photometric Chart
 |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| White / 3CCT Selectable | DL45WHXKN01 | Stock Item |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
