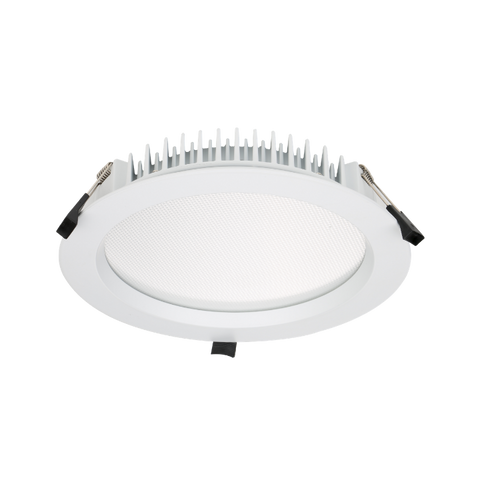

Integrated Power’s DL Series LED downlights offer high spec features in a compact, stylish fitting. With great colour rendition (CRI80+) and compatibility with a wide range of Australian dimmers, they are the perfect choice for a wide range of lighting applications.
Features
- Wide beam SMD LED technology
- High output LED chips
- Mains dimmable driver
- IP 54 when installed
- Flicker free driver
- Colour selectable
Applications
- Residential
- Offices
- Foyers
- Passageways
- Bathrooms
Standard Specifications
| Input Voltage: 200 - 240 Vac | Rated Input Power: 35W |
| Lumen Output: 2840lm - 3570lm | Beam Angle: 90° |
| Colour Temperature: 3000K / 4000K / 5700K | CRI Rating: CRI>80 (*CRI > 85 / GS) |
| SDCM Rating: < 4 (*SDCM < 3 / GS) | IP Rating: IP54 |

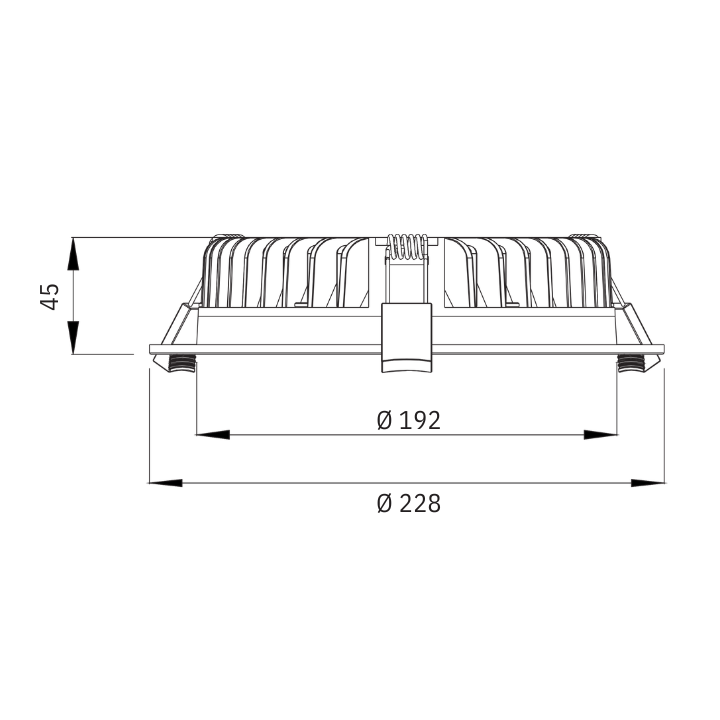

| Cutout: 200 - 210mm | Dimension: ⌀228*45mm |
| Fitting Weight: 1.1kgs |
Options (add option to end of stock code)
| Greenstar Specification* | / GS |
| DALI Dimming | / DALI |
Accessories
IES Files
| IES DL35WH3KD01 35W 3000K |
| IES DL35WH4KD01 35W 4000K |
| IES DL35WH5KD01 35W 5700K |
Photometric Chart
 |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| White / 3CCT Selectable | DL35WHXKD01 | Stock Item |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
