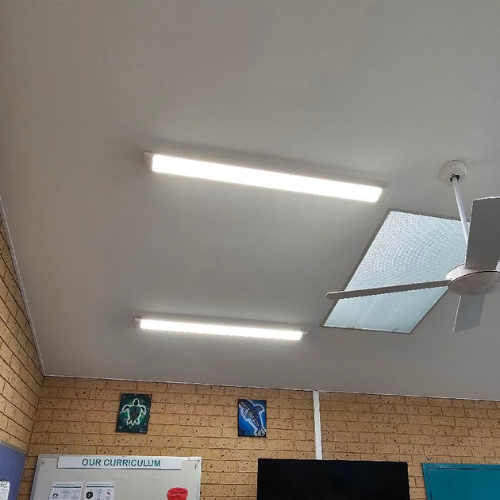

Integrated Power's BW Series wide body LED battens are specifically designed to upgrade existing lighting with large footprints to minimise the need for patching and painting. Their wide beam distribution makes them the perfect LED alternative to upgrade existing wide body fluorescent lighting in both offices and schools.
Features
- Wide beam SMD LED technology
- High lumen efficiency
- Wide body for upgrading large fluorescent battens
- Surface mounted
- Large terminal block for easy fit off
- Tri colour selectable
- Replaces 2x 36W double fluorescent
Applications
- Offices
- Schools
- Workshops
- Stairwells
- Bathrooms
Standard Specifications
| Rated Input Power: 40W | Lumen Output: 4350 - 4750lm |
| Colour Temperature: 3000K/4000K/5700K | CRI Rating: CRI>80 |
| SDCM Rating: <6 | Beam Angle: 120° |
| Operating Temperature: 0/+40°C | IK Rating: IK08 |
| IP Rating: IP40 | Dimensions: 1200*207*80mm |
| Fitting Weight: 2.60kg |
Option List
| 1 - 10V Dimming | / 1 - 10V |
| DALI Dimming | / DALI |
IES Files
| IES BW40WHXKN02 40W 3000K |
| IES BW40WHXKN02 40W 4000K |
| IES BW40WHXKN02 40W 5700K |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| White / 3CCT Selectable | BW40WHXKN02 | Stock Item |
| Special order products typically have an 12-14 week lead time. Minimum order qty's may apply. | ||
