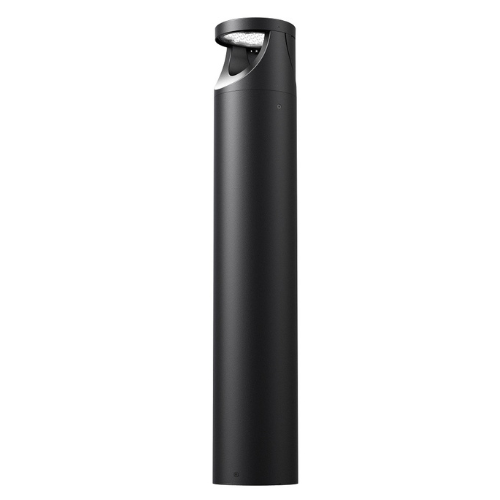

BL Series LED Bollards 22W with Power Selectable options
BL Series LED 22W Bollards with colour and power selectable features supplied in Malaga, Perth

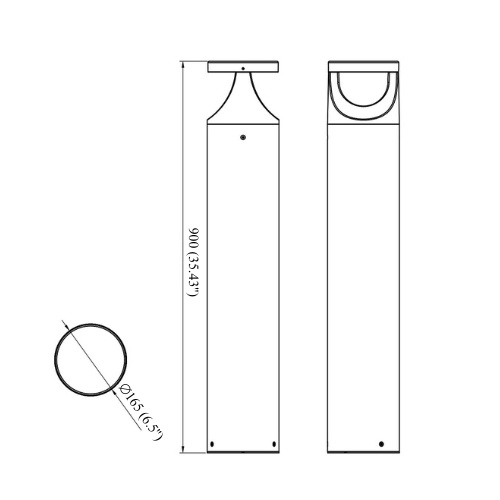

Dimensions of the BL Series LED Bollard 22W with power and colour selectable features
BL Series LED Bollard 22W with visor control options

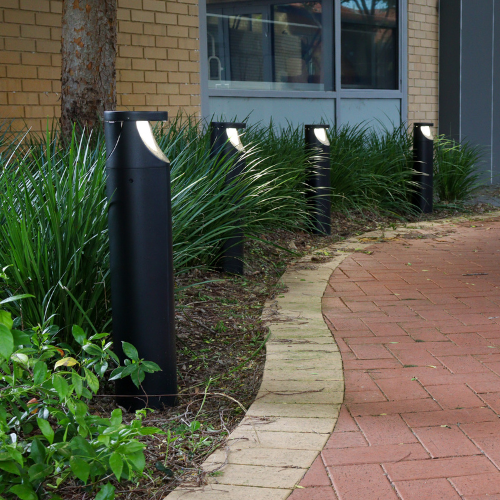

Pathway lighting supplied by BL Series LED Bollards at Penrhos College

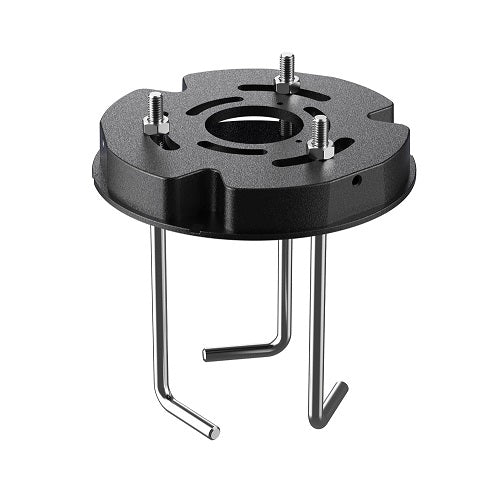

BL Series LED Bollard includes a ragbolt assembly kit

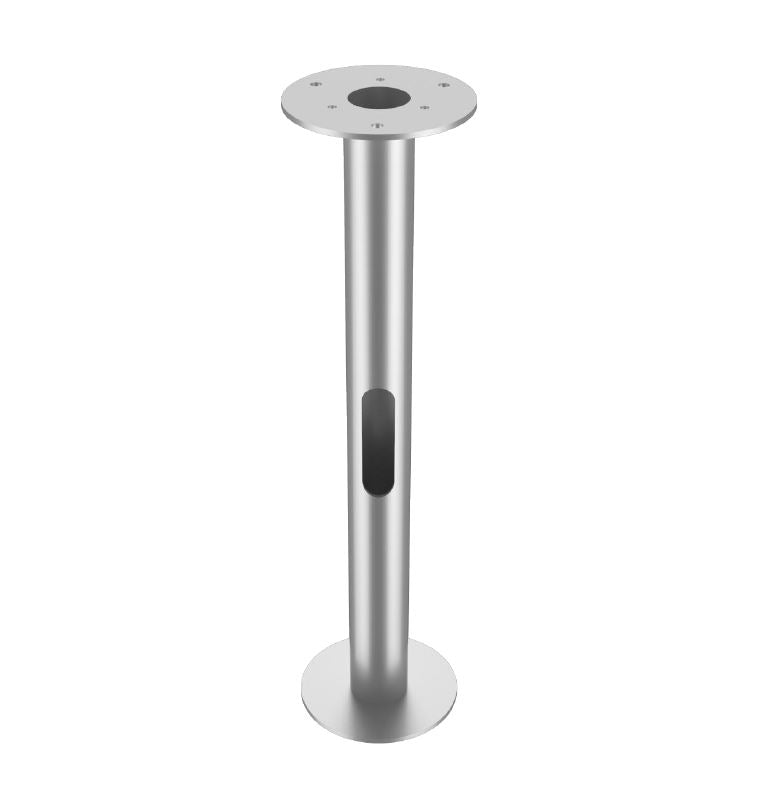

BL-Series LED Bollards Backfill Anchor

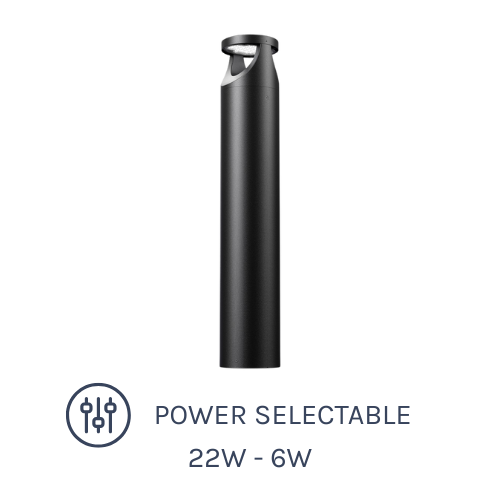

BL Series LED Bollards 22W with Power Selectable options

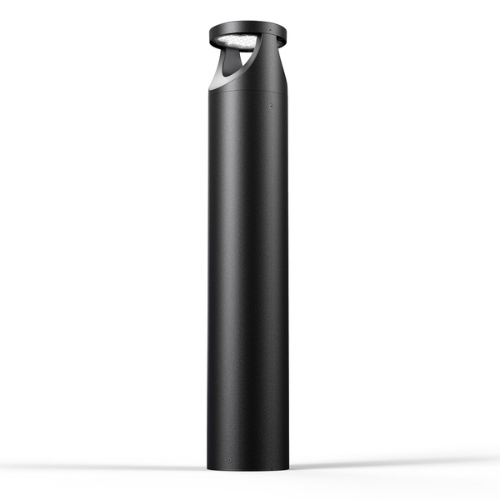

BL Series LED 22W Bollards with colour and power selectable features supplied in Malaga, Perth
Dimensions of the BL Series LED Bollard 22W with power and colour selectable features
BL Series LED Bollard 22W with visor control options
Pathway lighting supplied by BL Series LED Bollards at Penrhos College
BL Series LED Bollard includes a ragbolt assembly kit
BL-Series LED Bollards Backfill Anchor

BL Series LED Bollards - 22W, 900mm

  • Sale
  • $0.00

Integrated Power welcomes a new range of LED Bollards to the family. Built tough with a high impact resistance and water protection, the BL Series combines durability and style in this contemporary, architectural fitting. Designed for versatility, this bollards features colour temperature and power selection options. Its robust aluminium alloy construction and durable powder-coated finish ensure long-lasting performance in any environment. This series is the perfect choice for a range of applications including parks, walkways and more.

Features

  • Contemporary, architectural design
  • Double and single sided illumination options
  • High specification LED chips & driver
  • Durable powder coated finish
  • Power selectable
  • Colour temperature selectable
  • Robust aluminium alloy construction
  • Includes ragbolt mounting kit


Applications

  • Parks
  • Walkways
  • Gardens
  • Sidewalks
  • Entrances


Standard Specifications

Input Voltage: 120 - 277 Vac Rated Input Power: 22W/ 16W/ 12W/ 6W
Lumen Output: 2420lm  Colour Temperature: 3000K - 5000K
Beam Angle: Symmetric  CRI Rating: CRI>80
SDCM Rating: < 3 IP Rating: IP66
IK Rating: IK10 Operating Temperature: -30°C to 50°C
Service Life: L90 @ 57,000hrs Dimensions: ⌀165 x 900mm
Fitting Weight: 6.16kgs ± 0.3kgs


Options (add option to end of stock code)

DALI Dimming / DALI


Accessories

Visor BLVISORBK01
Backfill Anchor BL01BA02


IES Files

IES BL22BK4KN01 900mm 4000K 22W
IES BL22BK4KN01 900mm 4000K 16W
IES BL22BK4KN01 900mm 4000K 12W
IES BL22BK4KN01 900mm 4000K 6W



Photometric Chart



Models

Model Option Stock Code Availability
Black / 3CCT / Symmetric BL22BKXKN01 On Order (check lead times)
Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm.
