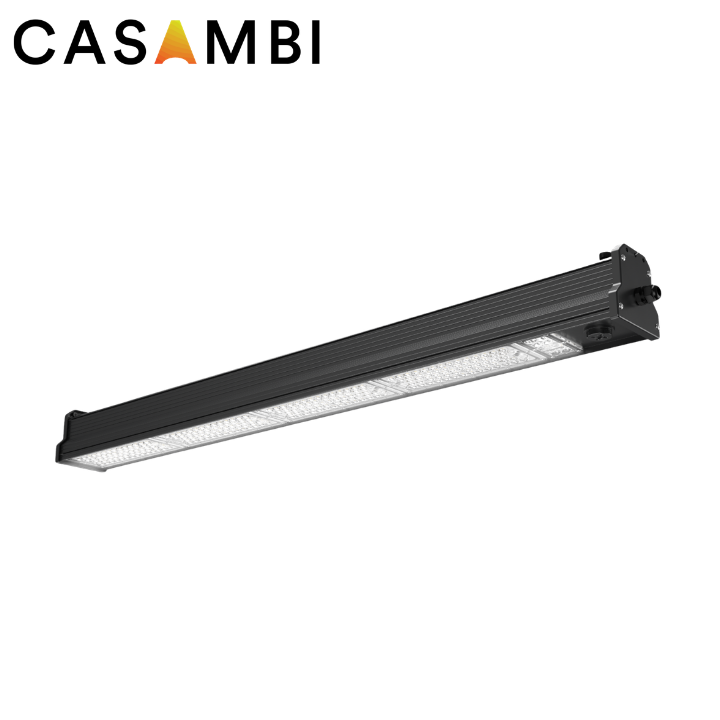

LHB Series Casambi Linear LED Highbay - 200W

  • Sale

The LHB Series linear highbays are the latest addition to Integrated Power's highbay collection. Their high lumen output provides a cost-effective and efficient lighting result. The wide range of available optics ensure for precise lighting for all types of warehouse layouts and applications. The addition of Casambi wireless control allows users to experience smart lighting via the user friendly Casambi App and multiple smart control options, giving full control right at your fingertips.

Features

  • Wide range of optics
  • Aluminium alloy finish
  • Flicker free driver
  • Polycarbonate optical lens
  • Durable, lightweight design
  • High lumen output
  • Zhaga Book 18 interface
  • Suspension kit included
  • Casambi ready

Applications

  • Shopping Centres
  • Supermarkets
  • Warehouses
  • Factories
  • Retail
  • Corridors
  • Stations

Standard specifications

Input Voltage: 120 - 240 Vac Rated Input Power - 200W
Lumen Output: 34,000lm (170lm/W) Colour Temperature: 5000K (3000K/4000K optional)
Beam Angle: : 30°x70°, 50°x90°, 120°, 40°x120°, 90°, Tilt 40° CRI Rating: CRI>80 (*CRI>85 / GS)
SDCM Rating: < 3 IK Rating: IK08
IP Rating: IP65 LED Lifespan: L80/ 86,800@Ta=25°C
Fitting Weight: 3.44kg Dimensions: 1024mm*102mm*100mm
Casambi Control



About Casambi

The Casambi solution is based on Bluetooth Low Energy, the state-of-the-art wireless technology and the only low power wireless technology in all modern smartphones and tablets, making it the only mainstream and future-proof low power radio technology in the world.

For more information on Casambi visit - www.casambi.com


Options (add option to end of stock code)

Greenstar Specifications / GS


Accessories

Adjustable Surface Mount Bracket LHB1BL01



IES Files

IES LHB200BK5KD01 5000K 200W 30*70°
IES LHB200BK5KD02 5000K 200W 50*90°
IES LHB200BK5KD03 5000K 200W 120°
IES LHB200BK5KD04 5000K 200W 40*120°
IES LHB200BK5KD05 5000K 200W 90°
IES LHB200BK5KD06 5000K 200W Tilt 40°



Photometric Chart

 30°x70°
50°x90°
120°
40°x120°
90°
Tilt 40°



Models

Models

Model Option Availability

Black / 5000K / 30* 70° Optic


Stock Code: LHBC200BK5KD01		 Special Order

Black / 5000K / 50* 90° Optic


Stock Code: LHBC200BK5KD02		 Special Order

Black / 5000K / 120°


Stock Code: LHBC200BK5KD03		 Special Order

Black / 5000K / 40* 120°


Stock Code: LHBC200BK5KD04		 Special Order

Black / 5000K / 90°


Stock Code: LHBC200BK5KD05		 Special Order

Black / 5000K / Tilt 40°


Stock Code: LHBC200BK5KD06		 Special Order
Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm.
