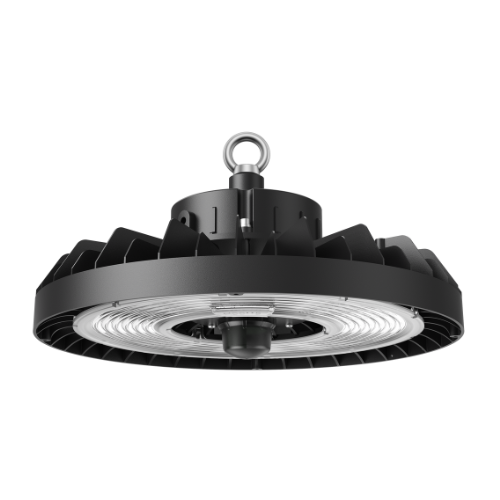

The HBX Series 3 LED smart highbay delivers high-performance lighting in a high-spec compact, high quality luminaire. Designed for efficiency and versatility, the HBX Series offers tailored solutions for open warehouses, narrow aisles and so much more. With Casambi smart technology, this series offers seamless wireless control over luminaire grouping, dimming and more, providing complete flexibility across your projects.
Features
- High quality Philips LED chips
- High lumen efficacy
- Multiple optics available
- Excellent heat dissipation
- Robust aluminium powder coating
- Anti-debris build-up design
- Output selectable driver (excludes DALI)
- 1.5m cable with Australian plug

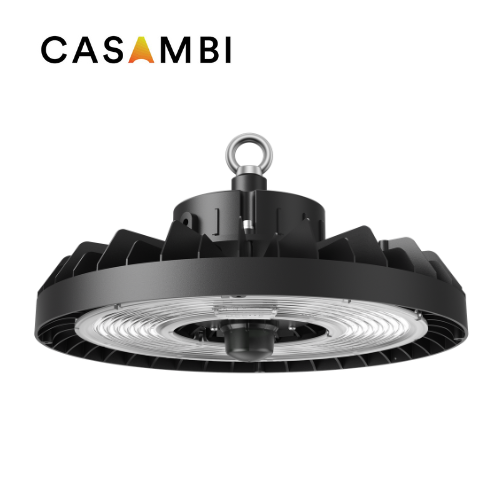

- Casambi enabled (Casambi module included)
Applications
- Exhibition Centres
- Warehouses
- Showrooms
- Museums
- Factories
- Gymnasiums
- Workshops
- Retail Outlets
Standard Specifications
| Input Voltage: 220 - 240 Vac | Rated Input Power: 200W |
| Lumen Output: 28,000lm | Colour Temperature: 4000K (3000K/5000K options) |
| Control: Casambi | CRI Rating: CRI>80 |
| SDCM Rating: < 3 | Beam Angle: 120° (40°, 60°, 90°, Aisle Optic options) |
| IP Rating: IP65 | IK Rating: IK08 |
| UGR Capacity: UGR<25 (select optics only) | Operating Temp: 0°C to 50°C |
| Service Life: L80 / 110,000hrs | Fitting Weight: 4.3kg (+/- 0.3kg) |

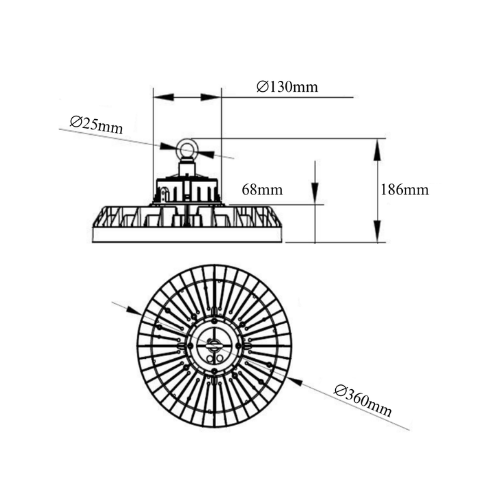

| Dimensions: ⌀360 * 186mm |
About Casambi
The Casambi solution is based on Bluetooth Low Energy, the state-of-the-art wireless technology and the only low power wireless technology in all modern smartphones and tablets, making it the only mainstream and future-proof low power radio technology in the world.
For more information on Casambi visit - www.casambi.com
IES Files
| IES file available on request |
Photometric Charts
|
40° Optic
|
60° Optic
|
 |
 |
|
90° Optic
|
120° Optic
|
 |
 |
|
Aisle Optic
|
|
 |
|
Models
| Model Option | Availability | |
|---|---|---|
4000K / 120° / Black Stock Code: HBX3200BK4KD01C/CAS |
||
4000K / 40° / Black Stock Code: HBX3200BK4KD02C/CAS |
||
4000K / 60° / Black Stock Code: HBX3200BK4KD03C/CAS |
||
4000K / 90° / Black Stock Code: HBX3200BK4KD04C/CAS |
||
4000K / Aisle Optic / Black Stock Code: HBX3200BK4KD05C/CAS |
||
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
Option List
| Casambi Motion Sensor | / MCAS |
| Quick Connector Driver Replacement System | / QC |
Accessories
| Polycarbonate Diffuser Kit |
HBX2DK01 |
| Aluminium 90° Reflector Kit/ Black | HBX2RK01B |
| Aluminium 90° Reflector Kit/ Silver | HBX2RK01 |
| Tilt Adjustable Bracket | HBX2BL01 |
