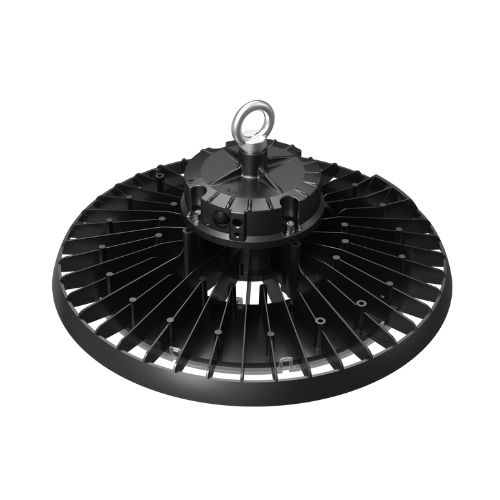

Introducing the HBX Series 2 highbay, Integrated Power's latest addition to our CASAMBI LED smart lighting range. The powerful Casambi application gives you all the control with groups, dimming, time schedules and much more. The HBX Series 2 highbay includes a range of features in a compact, high quality, high efficiency luminaire.
Features
- User friendly App interface
- Wide lighting distribution
- High efficacy 150lm/W LED chips
- Output selectable
- Flicker free driver
- Multiple optics available
- 1.5m cable with Australian plug
- Casambi smart controls via App
Applications
- Exhibition Centres
- Warehouses
- Showrooms
- Museums
- Factories
- Gymnasiums
- Workshops
Standard Specifications
| Input Voltage: 200 - 240 Vac | Rated Input Power: 200W/150W/120W/100W |
| Lumen Output: 30,000lm (200W) | Colour Temperature: 5000K (3000K/4000K optional) |
| CRI Rating: CRI>80 (*CRI>85 / GS) | SDCM Rating: < 3 |
| Control: Casambi | Beam Angle: 120° (30°, 60°, 90°, Aisle Optic) |
| IP Rating: IP65 | IK Rating: IK08 |
| Operating Temp: 0°C to 50°C | Service Life: 64,000hrs / L80 |
| Fitting Weight: 2.9kg (+/- 0.3kg) |
About Casambi
The Casambi solution is based on Bluetooth Low Energy, the state-of-the-art wireless technology and the only low power wireless technology in all modern smartphones and tablets, making it the only mainstream and future-proof low power radio technology in the world.
For more information on Casambi visit - www.casambi.com
Option List
| Greenstar Specification* | / GS |
Accessories
| Polycarbonate Diffuser Kit | HBX2DK01 |
| Surface Adjustable Bracket |
HBX2BL01 |
| Aluminium 90° Reflector Kit / Black | HBX2RK01B |
| Aluminium 90° Reflector Kit / Silver | HBX2RK01 |
IES Files
Photometric Charts
| 30° |
 |
| 60° |
 |
| 90° |
 |
| 120° |
 |
| Aisle Optic |
 |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| 4000K / 120° / Black | HBX2C200BK4KD01 | Special Order |
| 4000K / 30° / Black | HBX2C200BK4KD02 | Special Order |
| 4000K / 60° / Black | HBX2C200BK4KD03 | Special Order |
| 4000K / 90° / Black | HBX2C200BK4KD04 | Special Order |
| 4000K / Aisle Optic / Black | HBX2C200BK4KD05 | Special Order |
| 5000K / 120° / Black | HBX2C200BK5KD01 | Stock Item |
| 5000K / 30° / Black | HBX2C200BK5KD02 | Special Order |
| 5000K / 60° / Black | HBX2C200BK5KD03 | Special Order |
| 5000K / 90° / Black | HBX2C200BK5KD04 | Special Order |
| 5000K / Aisle Optic / Black | HBX2C200BK5KD05 | Special Order |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
