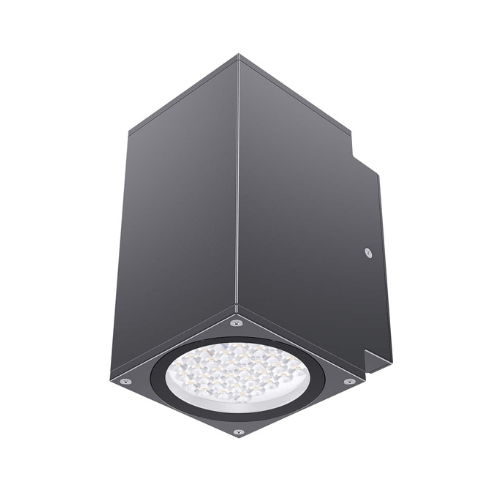

WLV Series LED Up-Down Wall Pack Light - 40W

  • Sale

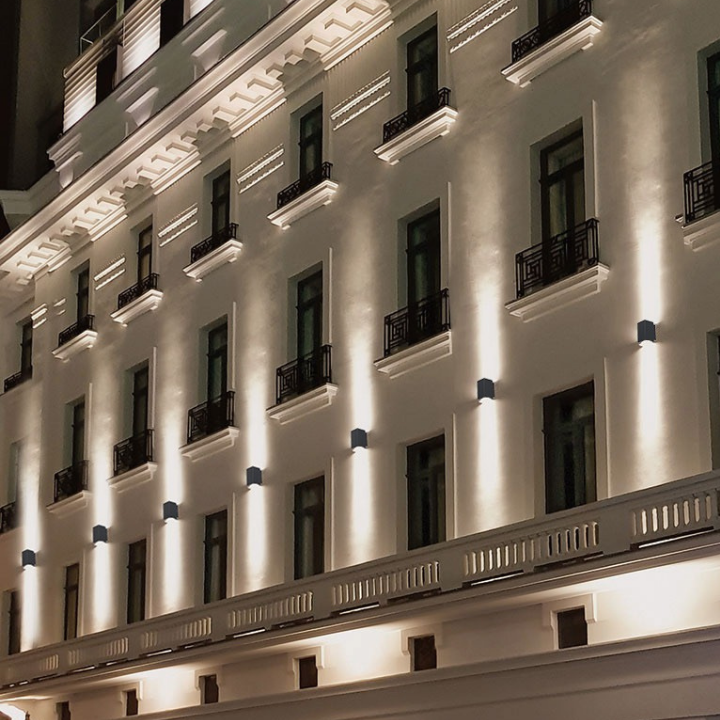

Introducing the WLV Series LED up-down wall pack light, the latest addition to Integrated Power’s wall light range. This series features customisable CCT and power selection, allowing you to adapt the luminaire to suit your desired environment easily. Blending strength and style, this series delivers dependable lighting in a compact form, built with a durable die-cast aluminium body, tempered glass cover, and C3 corrosion protection. It’s directional lighting design ensures both decorative and functional lighting across applications such as hotels, facades and walkways is optimised.


Features

  • Diecast aluminium housing
  • Durable powder coated finish
  • Polycarbonate opal diffuser
  • Tempered glass cover
  • Weather resistant
  • Switchable colour temperatures

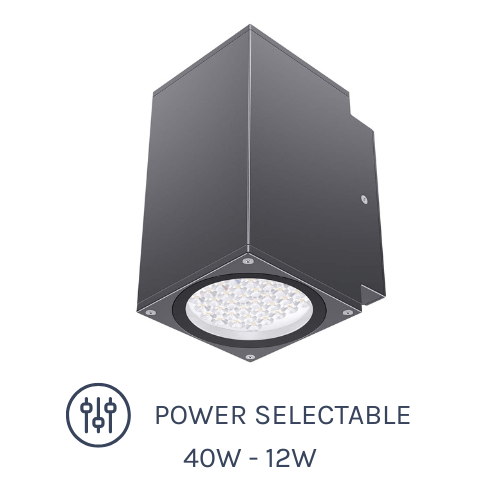

  • Power selectable
  • 20W Up / 20W Down model
  • 20W Down only model



Applications

  • Hotels
  • Facades
  • Council Facilities
  • Walkways
  • Exterior Walls
  • Commercial Buildings
  • Lifestyle villages



Standard Specifications


 Input Voltage: 100 - 240 Vac Rated Input Power: 40W / 30W / 20W / 12W
  • Up: 20W / 15W / 10W / 6W
  • Down: 20W / 15W / 10W / 6W
Lumen Output: 4,800lm (@ 40W) Colour Temperature: 2700K / 3000K / 4000K
CRI Rating: CRI>80 Beam Angle: 15°, 30°, 60°
IP Rating: IP66 IK Rating: IK08
Corrision Rating: C3 (ISO 9223: 2012) Operating Temperature: 0°C ~ 50°C

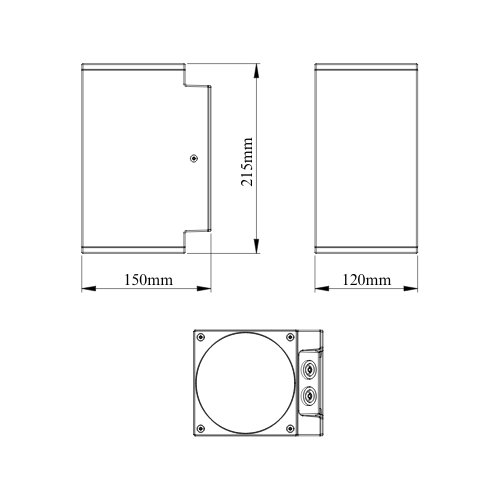

Service Life: L90 @ 110,000hrs, Ta 25°C Dimensions: 150 x 120 x 215mm
Weight: 2.96kg +/- 0.3kg



IES Files

IES WLV40BKXKN01 4000K 40W 15deg
IES WLV40BKXKN02 4000K 40W 30deg
IES WLV40BKXKN03 4000K 40W 60deg
IES WLV20BKXKN01 4000K 20W 15deg (down)
IES WLV20BKXKN02 4000K 20W 30deg (down)
IES WLV20BKXKN02 4000K 20W 60deg (down)



Photometric Charts

15°
30°
60°
15° - Down
30° - Down
60° - Down



Models

Model Option Stock Code Availability
Black / 3CCT / Power Selectable / 20W-Up-20W-Down / 15 Deg WLV40BKXKN01 Special Order
Black / 3CCT / Power Selectable / 20W-Up-20W-Down / 30 Deg WLV40BKXKN02 Special Order
Black / 3CCT / Power Selectable / 20W-Up-20W-Down / 60 Deg WLV40BKXKN03 Special Order
Black / 3CCT / Power Selectable / 20W Down / 15 Deg WLV40BKXKN01D Special Order
Black / 3CCT / Power Selectable / 20W Down / 30 Deg WLV40BKXKN02D Special Order
Black / 3CCT / Power Selectable / 20W Down / 60 Deg WLV40BKXKN03D Special Order
Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm.
