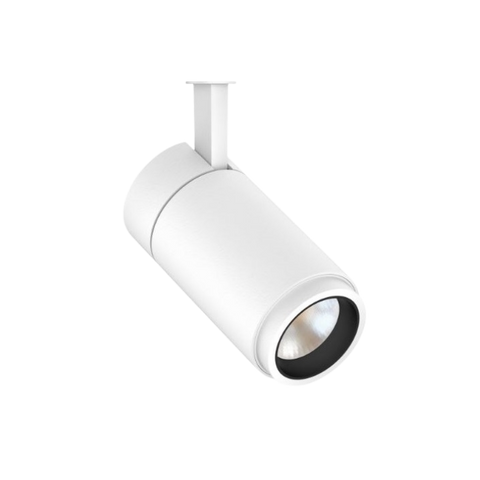

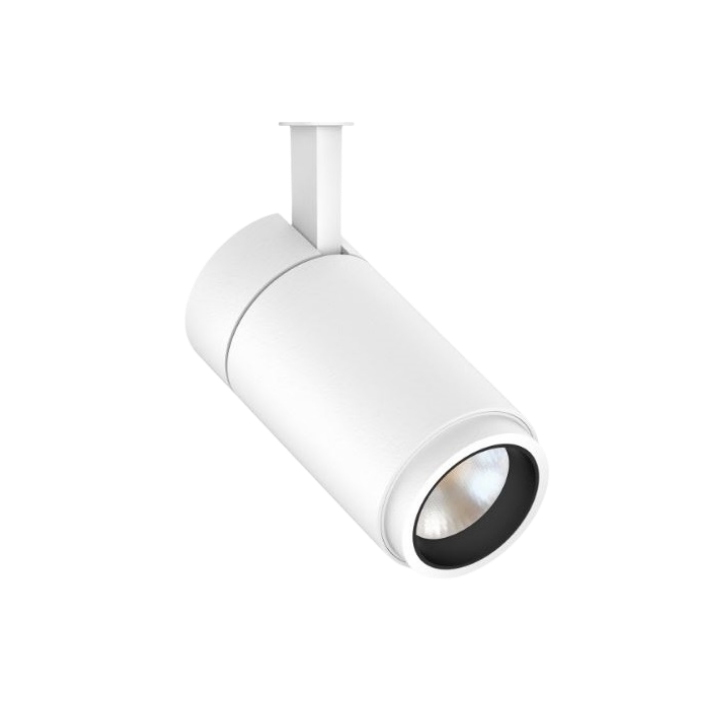

The TR Tracklight Series is specially designed to fit smoothly into restaurants, galleries, high-end shopping centres and many other retail environments. The plug and play nature of these track lights along with the manual beam angle adjustment makes the TR Series tracklights ideal for the ever changing retail and gallery displays.
Please contact us directly for specific details on our TR Tracklight Series.
Features
- High quality Citizen LED COB chips
- Adjustable beam angle 15 - 60°
- Flicker free driver
- Mains dimmable
- 3 channel switchable
- Highly adjustable orientation
- Easy installation and assembly
Applications
- Restaurants
- Shop Fronts
- Retail Stores
- Display Windows
- Museum Displays
- Galleries
Standard Specifications
| Input Voltage: 200 - 240Vac | Rated Input Power: 25W |
| Lumen Output: 2500lm (4000K) | Colour Temperature: 3000K/4000K/5000K |
| CRI Rating: CRI>90 | Beam Angle: 15° - 60° (adjustable) |
| Horizontal Orientation: 350° | Vertical Orientation: 90° |
| IP Rating: IP20 | Operating Temperature: -20°C ~ 45°C |
| Dimensions: Ø80 x 260mm | Fitting Weight: 0.91kg ± 0.3kg |
| Control: Triac dimmable |
Option List
| DALI Dimming | / DALI |
| Casambi | / CAS |
Accessories
IES Files
| IES TRS25WH4KD02 15deg 25W |
| IES TRS25WH4KD02 60deg 25W |
Photometric Charts
| 15º deg |
 |
| 60 deg |
 |
Models
Models
| Model Option | Availability | |
|---|---|---|
White / 3000K Stock Code: TRS25WH3KD02 |
Stock Item | |
White / 4000K Stock Code: TRS25WH4KD02 |
Stock Item | |
White / 5000K Stock Code: TRS25WH5KD02 |
Stock Item | |
White / 3CCT Stock Code: TRS25WHXKD02 |
Stock Item | |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
