The TR Tracklight Series is specially designed to fit smoothly into restaurants, high-end shopping centres and many other retail environments. The TR Series linear fittings can be installed as seamless linear runs, positioned individually or even mixed with spotlights and many other track mounted fittings. The plug and play versatility makes repositioning a breeze for the end user.
Features
- Easy installation
- Surge protection
- 3 Channel switchable
- High efficiency LED chips
- Seamless linear design
- Flicker free driver
- Power selectable - 45W, 50W, 55W & 60W
- Single tilt adjustment 0 - 30°
Applications
- Restaurants
- Shop Fronts
- Retail Stores
- Display Windows
- Museum Displays
- Libraries
- Galleries
Standard Specifications
| Input Voltage: 220 - 240 Vac | Rated Input Power: 60W (max) |
| Lumen Output: 10800lm @ 60W (4000K) | Colour Temperature: 4000K (3000K/ 5000K optional) |
| CRI Rating: CRI>80 (CRI>90 available) | SDCM Rating: < 3 |

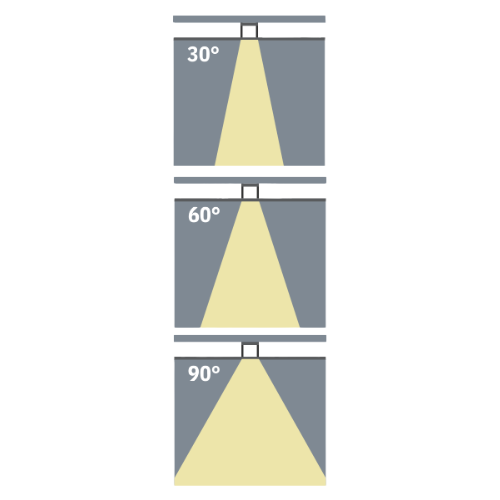

| Beam Angles: 30°, 60°, 90° | IP Rating: IP20 |
| Operating Temperature: -25° - 40°C | Service Life: L80 @ >60,000hrs |

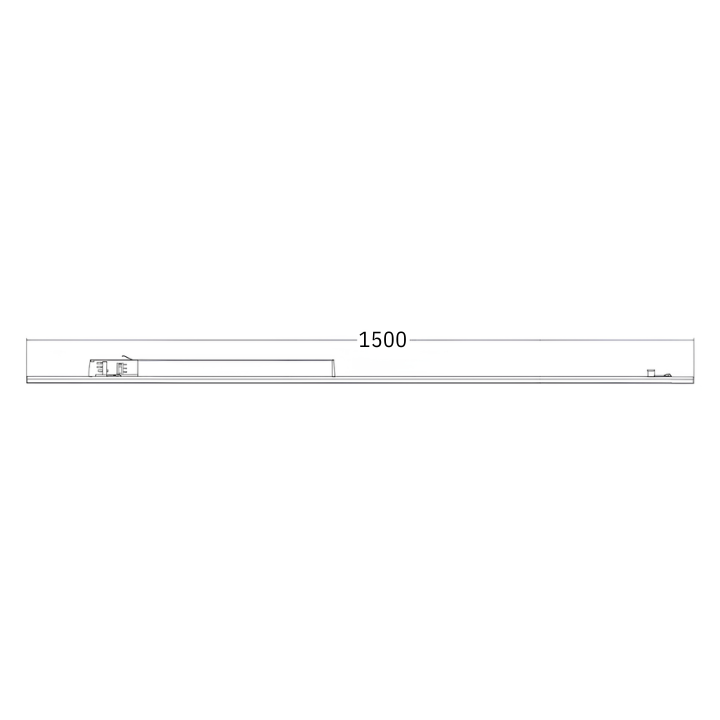

| Dimensions: 1500 x 60 x 13mm | Fitting Weight: 1.45kg ± 0.3kg |
| Compatible Track Rails: Powergear, Global, Stucchi, Unipro, Eutrac, Staff, Ivela |
IES Files
| IES TRL60WH4KN09 30° (30° tilt) 60W |
| IES TRL60WH4KN10 60° (30° tilt) 60W |
| IES TRL60WH4KN11 90° (30° tilt) 60W |
Photometric Chart
| 30° (30° tilt) | 60° (30° tilt) |
 |
 |
| 90° (30° tilt) | |
 |
|
Models
| Model Option | Availability | |
|---|---|---|
White / 30 Degree / 4000K / 3 Channel Stock Code: TRL60WH4KN09 |
Special Order | |
White / 60 Degree / 4000K / 3 Channel Stock Code: TRL60WH4KN10 |
Special Order | |
White / 90 Degree / 4000K / 3 Channel Stock Code: TRL60WH4KN11 |
Special Order | |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
Option List
| High CRI | / CRI90 |
| DALI Dimmable | / DALI |
Accessories ( Brochure )
