The TR Tracklight Series is specially designed to fit smoothly into restaurants, high-end shopping centres and many other retail environments. The TR Series linear fittings can be installed as seamless linear runs, positioned individually or even mixed with spotlights and many other track mounted fittings. The plug and play versatility make repositioning a breeze for the end user.
Features
- Easy installation
- Surge protection
- 3 Channel switchable
- High efficiency LED chips
- Seamless linear design
- Flicker free driver
- Power selectable - 45W, 50W, 55W & 60W
- Double tilting board for maximum shelf illumination
- Tilt adjustment 0 - 30°
Applications
- Restaurants
- Shop Fronts
- Retail Stores
- Displays Windows
- Museum Displays
- Libraries
- Galleries
Standard Specifications
| Input Voltage: 220 - 240 Vac | Rated Input Power: 60W (max) |
| Lumen Output: 10800lm @ 60W (4000K) | Colour Temperature: 4000K (3000K/5000K) |
| CRI Rating: CRI>80 (CRI>90 available) | SDCM Rating: < 3 |

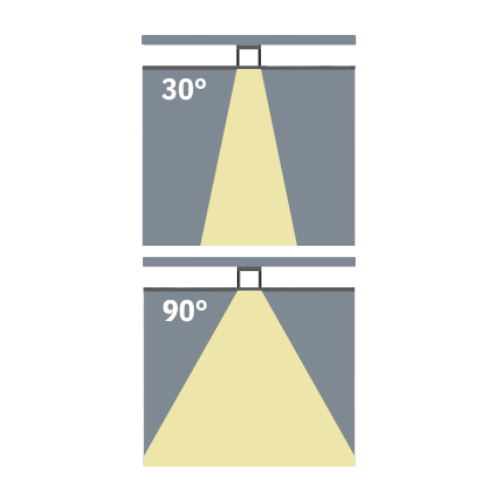

| Beam Angles: 30° x 30°, 30° x 90° | IP Rating: IP20 |
| Operating Temperature: -25° - 40° C | Service Life: L80 @ >60,000hrs |
| Dimensions: 1500 x 120 x 13mm | Fitting Weight: 2.25kg ± 0.3kg |
| Fits Track Brands: Powergear, Global, Stucchi, Unipro, Eutrac, Staff, Ivela |
Option List
| High CRI | /CRI90 |
| DALI Dimmable | /DALI |
Accessories
IES Files
| IES TRL60WH4KN03 30x30° 60W |
| IES TRL60WH4KN03 30x30° (15° Tilt) 60W |
| IES TRL60WH4KN03 30x30° (30° Tilt) 60W |
| IES TRL60WH4KN04 30x90° 60W |
| IES TRL60WH4KN04 30x90° (15° Tilt) 60W |
| IES TRL60WH4KN04 30x90° (30° Tilt) 60W |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| Black / 30x30 Degree / 4000K / 3 Channel | TRL60BK4KN03 | Special Order |
| Black / 30x90 Degree / 4000K / 3 Channel | TRL60BK4KN04 | Stock Item |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
