The OpticPro sports floodlights are the latest generation of high powered LED floodlights from Integrated Power. Their wide range of precision optics and accessories make them adaptable to even the most demanding sports lighting projects. The highly adjustable mounting bracket is cleverly designed to make installation straight forward, whether standard or underslung mounting is required.
Features
- Heavy duty construction
- High efficiency LED chips and drivers
- Large range of asymmetric & symmetric optics
- Glare and spill light shield accessories
- Top & underslung crossarm mountable
- Bird protection
- DC junction box / remote driver
- DALI2 / DMX Dimming inputs
-
DC cable required for installation *(not supplied)
- Wide voltage driver
Applications

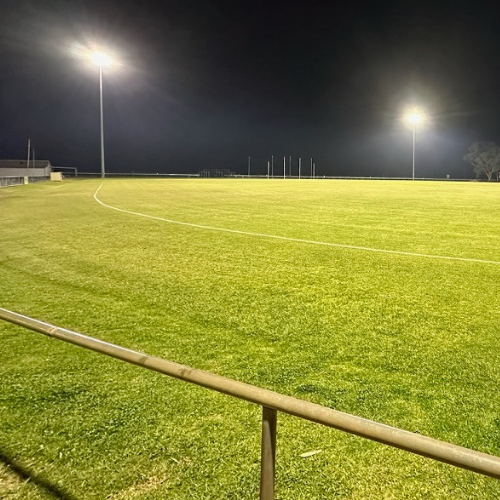

- Sports Lighting
- Hard Stands
- Industrial Sites
- Security Lighting
- Signage
Standard Specifications
| Input Voltage: AC 100 - 450Vac | Rated Input Power: 1800W |
| Lumen Output: 264,600lm | Colour Temperature: 5000K (4000K, 5700K Optional) |
| CRI Rating: CRI>80 (CRI>90 optional) | SDCM Rating: < 5 |
| IK Rating: IK09 | IP Rating: IP66 |
| EPA (Sail Area): 0.1m² 0° tilt | Service Life: L70 >100,000hrs |
| Dimensions: 817 x 138 x 977mm | Fitting Weight: 40.0kg (without driver) |
| Driver Weight: 7.0kg |
IES Files
| IES OP1800GR5KD05 60x130deg WB ASYM - 1800W |
| IES OP1800GR5KD06 40x130deg MB ASYM - 1800W |
| IES OP1800GR5KD07 25x130deg NB ASYM - 1800W |
Photometric Chart
| 60 x 130° | 40 x 130° |
 |
 |
| 25 x 130° | |
 |
|
Models
| Model Option | Availability | |
|---|---|---|
Grey / 12 deg SYM Stock Code: OP1800GR5KD01 |
Special Order | |
Grey / 16 deg SYM Stock Code: OP1800GR5KD02 |
Special Order | |
Grey / 30 deg SYM Stock Code: OP1800GR5KD03 |
Special Order | |
Grey / 60 deg SYM Stock Code: OP1800GR5KD04 |
Special Order | |
Grey / 60x130 deg WB ASYM Stock Code: OP1800GR5KD05 |
Special Order | |
Grey / 40x130 deg MB ASYM Stock Code: OP1800GR5KD06 |
Special Order | |
Grey / 25x130 deg NB ASYM Stock Code: OP1800GR5KD07 |
Special Order | |
Grey / AS-L ASYM Stock Code: OP1800GR5KD08 |
Special Order | |
Grey / AS-R ASYM Stock Code: OP1800GR5KD09 |
Special Order | |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
Option List
| 415Vac Driver | / 415V |
Accessories
| *NOTE: 2.5m² 6 Core + Earth circular cable required for DC connection between fitting and driver (not supplied) |
