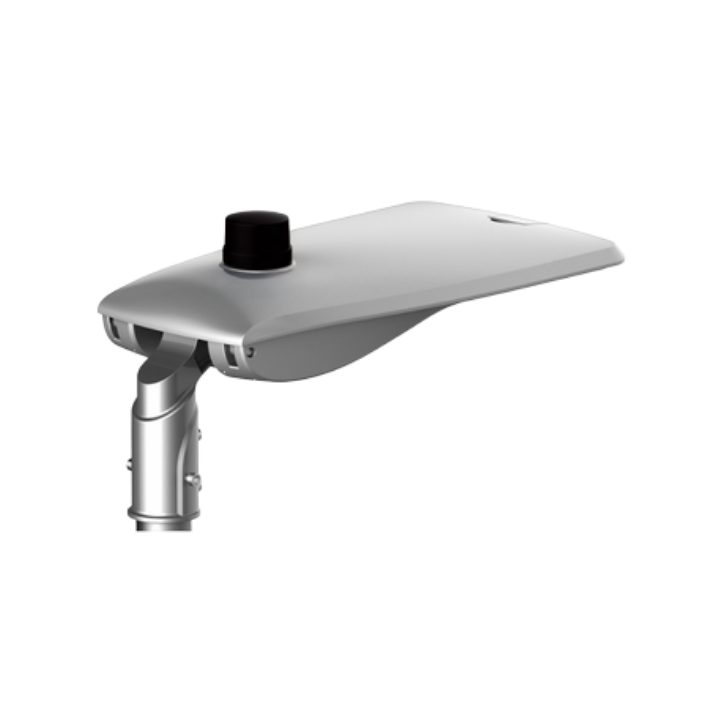

SL2 Series Casambi LED Streetlight - 90W Silver

  • Sale
  • Regular price


The SL2 Series LED streetlight range offers a reliable and modern LED solution for new installations and retrofits. With Casambi wireless controls, users are easily able to interact and customize their settings with programs of smart dimming, time scheduling, and grouping. The high output Nichia LED chips can utilise a ‘Batwing’ distribution lens system to ensure a wide and even spread of light, which is perfect for carparks and roadways. The smooth top surface limits the build up for dirt and debris.

Features

  • High output Nichia LEDs
  • Tool free, easy fitting access
  • Reversible arm for horizontal and vertical spigots
  • Different spigot size accessories available
  • Multiple optics available
  • Auto isolation system
  • NEMA socket
  • Casambi enabled (through NEMA module)


Applications

  • Roadways
  • Carparks
  • Walkways
  • Caryards
  • Parks


Standard Specifications

Rated Input Power: 90W Lumen Output: 11,700lm
Colour Temperature: 4000K (3000K/5000K optional) CRI Rating: CRI>80
SDCM Rating: <3 Operating Temperature: -30/+50°C

EPA (Sail Area):  0.195m²

Service Life:  L90B10/>50,000hrs@63°Tj
IP Rating: IP66 IK Rating: I08
Fitting Weight: 6.8kg Suits 60mm OD spigot
Casambi Wireless Range: Up to 200m in long range mode



About Casambi

The Casambi solution is based on Bluetooth Low Energy, the state-of-the-art wireless technology and the only low power wireless technology in all modern smartphones and tablets, making it the only mainstream and future-proof low power radio technology in the world.

For more information on Casambi visit - www.casambi.com


Accessories

Spigot Arm Adaptor - 34mm SL2ADP34
Spigot Arm Adaptor - 42mm SL2ADP42
Spigot Arm Adaptor - 76mm SL2ADP76
Wall Mount Bracket  SL2WADP01
Right Angle Pole Adaptor - 90mm SL2ADP90
Dual Spigot Adaptor - 60mm SL2ADP60D
Dual Spigot Adaptor - 76mm SL2AD76D
100mm Square Pole Adaptor - Single Spigot SL2ADP100SQS
100mm Square Pole Adaptor - Double Spigot SL2ADP100SQD



IES Files

IES SL290SI5KN01 75x150deg 90W
IES SL290SI5KN02 45x155deg 90W
IES SL290SI5KN03 45x145deg 90W



Models

Model Option Stock Code Availability
Silver / 3000K / 75x150 Degree SL2C90SI3KD01 Special Order
Silver / 3000K / 45x155 Degree SL2C90SI3KD02 Special Order
Silver / 3000K / 45x145 Degree SL2C90SI3KD03 Special Order
Silver / 4000K / 75x150 Degree SL2C90SI4KD01 Special Order
Silver / 4000K / 45x155 Degree SL2C90SI4KD02 Special Order
Silver / 4000K / 45x145 Degree SL2C90SI4KD03 Special Order
Silver / 5000K / 75x150 Degree SL2C90SI5KD01 Special Order
Silver / 5000K / 45x155 Degree SL2C90SI5KD02 Special Order
Silver / 5000K / 45x145 Degree SL2C90SI5KD03 Special Order
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
