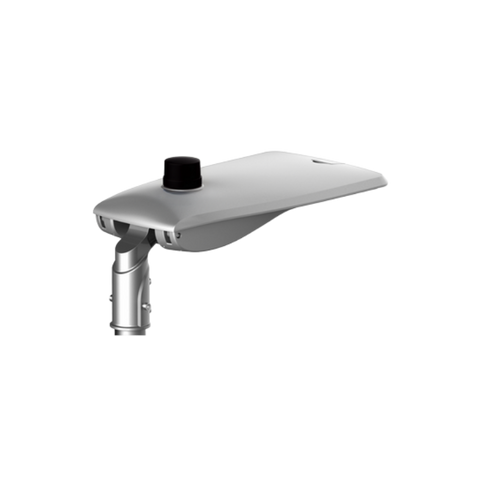

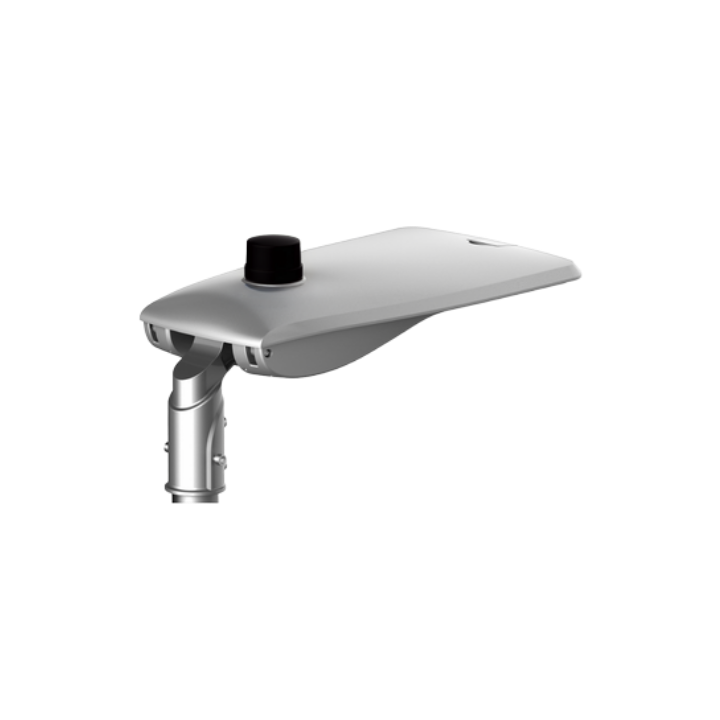

SL2 Series Casambi LED Streetlight - 30W Silver

  • Sale
  • Regular price


The SL2 Series LED streetlight range offers a reliable and modern LED solution for new installations and retrofits. With Casambi wireless controls, users are easily able to interact and customize their settings with programs of smart dimming, time scheduling, and grouping. The high output Nichia LED chips can utilise a ‘Batwing’ distribution lens system to ensure a wide and even spread of light, which is perfect for carparks and roadways. The smooth top surface limits the build up for dirt and debris.

Features

  • All aluminium and stainless fitting construction
  • Tool free, easy fitting access
  • Reversible arm for horizontal and vertical spigots
  • Different spigot size accessories available
  • Multiple optics available
  • Auto isolation system
  • NEMA socket
  • Casambi enabled


Applications

  • Roadways
  • Carparks
  • Walkways
  • Caryards
  • Parks


Standard Specifications

Rated Input Power: 30W Lumen Output: 3,750lm
Colour Temperature: 4000K (3000K/ 5000K optional)  CRI Rating: CRI>80
SDCM Rating: < 3 Operating Temperature: -30/+50° C
EPA (Sail Area): 0.136m² Service Life: L90B10 / >50,000hrs @ 63° Tj
IP Rating: IP66 IK Rating: IK08
Fitting weight: 4.1kg Suits 60mm OD spigot
Casambi Wireless Range: Up to 200m in long range mode



About Casambi

The Casambi solution is based on Bluetooth Low Energy, the state-of-the-art wireless technology and the only low power wireless technology in all modern smartphones and tablets, making it the only mainstream and future-proof low power radio technology in the world.

For more information on Casambi visit - www.casambi.com

Accessories

Spigot Arm Adaptor - 34mm SL2ADP34
Spigot Arm Adaptor - 42mm SL2ADP42
Spigot Arm Adaptor - 76mm SL2ADP76
Wall Mount Bracket SL2WADP01
Right Angle Pole Adaptor - 90mm SL2ADP90
Dual Spigot Adaptor - 60mm  SL2ADP60D
Dual Spigot Adaptor - 76mm SL2ADP76D
100mm Square Pole Adaptor - Single Spigot SL2ADP100SQS
100mm Square Pole Adaptor - Double Spigot SL2ADP100SQD
Corner Bracket Adaptor SL2ADPCB01



IES Files

IES SL230SI5KN01 75x150deg 30W
IES SL230SI5KN02 45x155deg 30W
IES SL230SI5KN03 45x145deg 30W



Models

Model Option Stock Code Availability
Silver / 3000K / 75x150 degree SL2C30SI3KD01 Special Order
Silver / 3000K / 45x155 degree SL2C30SI3KD02 Special Order
Silver / 3000K / 45x145 degree SL2C30SI3KD03 Special Order
Silver / 4000K / 75x150 degree SL2C30SI4KD01 Special Order
Silver / 4000K / 45x155 degree SL2C30SI4KD02 Special Order
Silver / 4000K / 45x145 degree SL2C30SI4KD03 Special Order
Silver / 5000K / 75x150 degree SL2C30SI5KD01 Special Order
Silver / 5000K / 45x155 degree SL2C30SI5KD02 Special Order
Silver / 5000K / 45x145 degree SL2C30SI5KD03 Special Order
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
