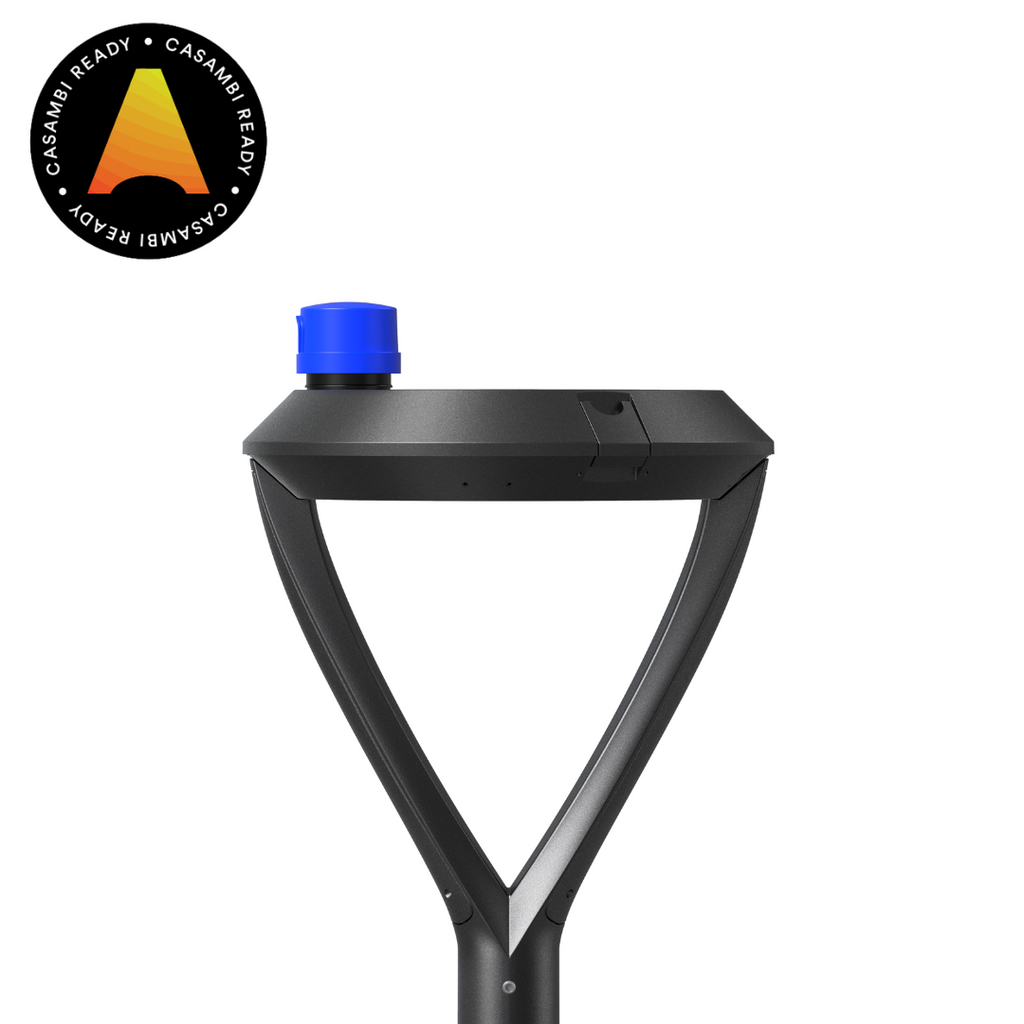

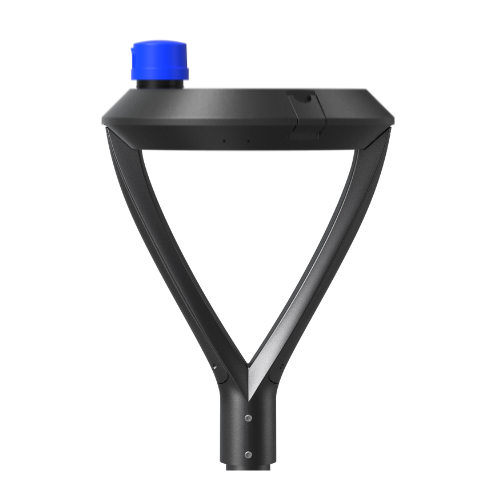

The PT5 Series LED poletops package the latest LED chipsets and drivers in an expanding range of heritage and contemporary designs. The PT5 is the latest edition to our PT Series. Offering 6 different mounting options, 1-10V dimming, colour selectability and a wide range of optics, makes this our most project adaptable pole top model to date. With the addition of a Casambi wireless unit, users can customize for their desired lighting outcome via smart dimming, grouping and time scheduling and more.
Features
- Colour temperature selectable
- Large range of asymmetric & symmetric optics
- Multiple mounting styles available
- High quality LED chips and drivers
- Durable powder coated finish
- Robust cast aluminium construction
- 7 Pin NEMA socket with PE Cell
- Suits 60mm vertical spigot
- 1-10V dimmable
- Casambi ready (Casambi module required)
Applications
- Parks
- Walkways
- Carparks
- Education Campus'
- Council Facilities
Standard Specifications
| Input Voltage: 100 - 240 Vac | Rated Input Power: 60W |
| Lumen Output: 2,700lm - 9,000lm | Colour Temperature: 3000K/ 4000K/ 5000K |
| CRI Rating: CRI>80 | SDCM Rating: < 5 |
| Beam Angle: Symmetric | Control: 1 - 10V Dimming |
| Operating Temperature: -30°C ~ 45°C | Service Life: 50,000hrs @ 25°C |
| IP Rating: IP66 | IK Rating: IK08 |

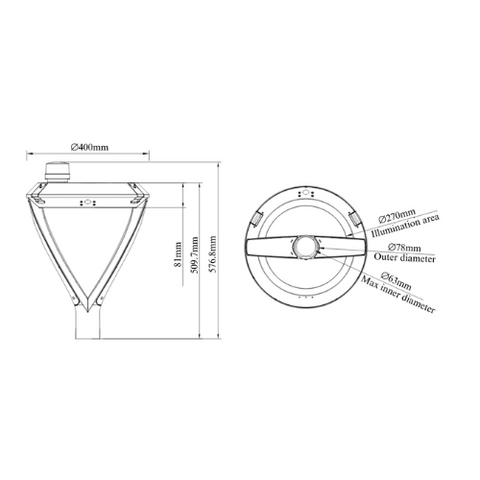

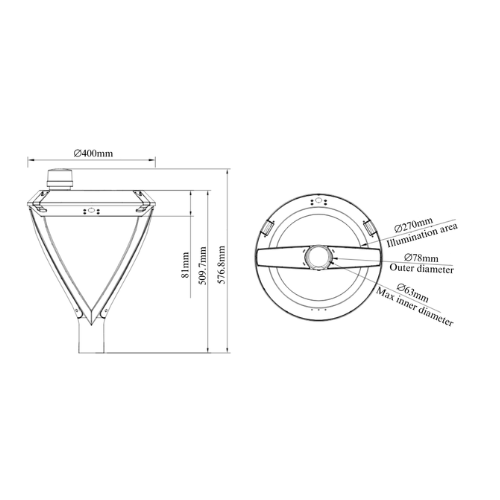

| Fitting Weight: 6.8kg - 9.4kg | Dimensions: Ø 400mm x 81mm (head only) |
Option List
| Casambi Module | / CAS |
| DALI Dimming | / DALI |
| Nema Socket Bridging Cap | / BC |
Other PT5 Models
| Type A | Single Arm Mount - 60mm spigot |
| Type B | Twin Arm Mount - 60mm spigot |
| Type C | Straight Arm Mount - round/square pole |
| Type D | Slipfitter - 60mm spigot |
| Type E |
Gooseneck Adaptor - 60mm spigot |
Accessories
| 76mm-60mm Pole Adaptor - Black | PTADP76-60B |
| 90mm-60mm Pole Adaptor - Black | PTADP90-60B |
IES Files
| IES PT560BK4KN01 60W |
| IES PT560BK4KN02 60W |
| IES PT560BK4KN03 60W |
| IES PT560BK4KN04 60W |
| IES PT560BK4KN05 60W |
| IES PT560BK4KN06 60W |
Photometric Charts
| Type V Symmetric |
 |
| Type I Short Asymmetric |
 |
| Type II Short Asymmetric |
 |
| Type III Short Asymmetric |
 |
| Type II Medium Asymmetric |
 |
| Type III Medium Asymmetric |
 |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| Black / 3CCT / Type V Symmetric / PE Cell | PT5P60BKXKD01B | Special Order |
| Black / 3CCT / Type I Short Asymmetric / PE Cell | PT5P60BKXKD02B | Special Order |
| Black / 3CCT / Type II Short Asymmetric / PE Cell | PT5P60BKXKD03B | Stock Item |
| Black / 3CCT / Type III Short Asymmetric / PE Cell | PT5P60BKXKD04B | Special Order |
| Black / 3CCT / Type II Medium Asymmetric / PE Cell | PT5P60BKXKD05B | Special Order |
| Black / 3CCT / Type III Medium Asymmetric / PE Cell | PT5P60BKXKD06B | Special Order |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
