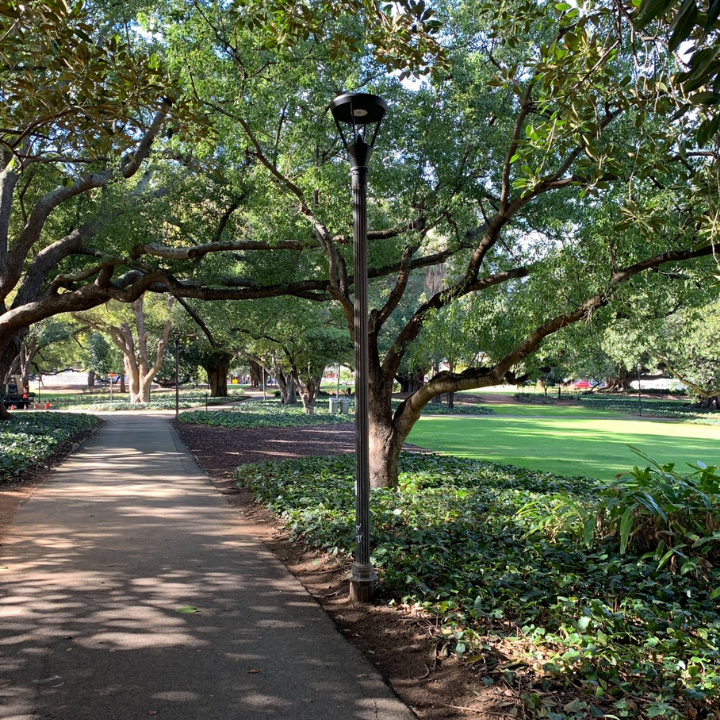

PT1 Series LED Poletop Lights - 40W

  • Sale
  • Regular price


The PT Series LED post top range package the latest LED chipsets and drivers in an array of both heritage and contemporary designs. With numerous styles and mounting options available, there is a PT series fitting to suit your next outdoor lighting project.


Features

  • CREE XPG LEDS
  • Philips Xitanium Drivers
  • Robust aluminium and polycarbonate construction
  • Dimming and smart lighting control options
  • Durable powder coat finish
  • suits 76mm OD pole spigot


Applications

  • Parks
  • Walkways
  • Education Campus'
  • Council Facilities
  • Estates


Standard Specifications

Rated Input Power: 40W Lumen Output: 4,162lm (4000K)
Colour Temp: 3000K, 4000K or 5000K CRI Rating: CRI>75
IP Rating: IP65 Operating Temperature: -30/+45°C
Fitting Weight: 6.5kg



Options (add option to end of stock code)

DALI Dimming /DALI
0-10V dimming /DIM



IES Files

IES PT140BK3KN01 40W 3000K
IES PT140BK4KN01 40W 4000K
IES PT140BK5KN01 40W 5000K



Models

Model Option Stock Code Availability
Black / 4000K PT140BK4KN01 Stock Item
Black / 3000K PT140BK3KN01 Stock Item
White / 4000K PT140WH4KN01 Special Order
White / 3000K PT140WH3KN01 Special Order
Silver / 4000K PT140SI4KN01 Special Order
Silver / 3000K PT140SI3KN01 Special Order
Green / 4000K PT140GR4KN01 Special Order
Green / 3000K PT140GR3KN01 Special Order
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
