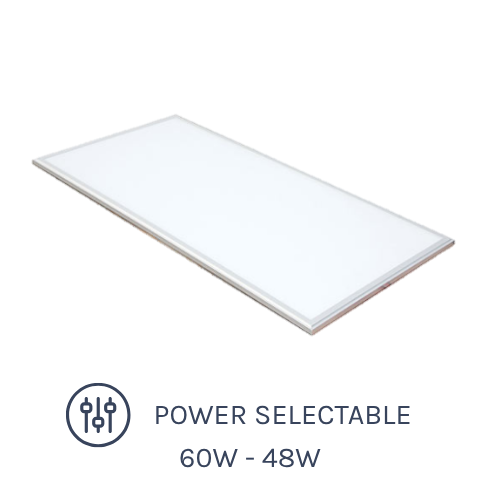

The PB Series LED Panels balance high output with clean, even light distribution. They are a stylish troffer replacement for standard grid ceilings. Perfect for either retrofits or new buildings, they are fast to install and a perfect choice for both retail and office environments. These panels can be manually switched during installation to your chosen colour temperature which includes warm 3000K, natural 4000K & cool 5700K.
Features
- High quality LED chips & drivers
- Wide beam SMD LED technology
- Flicker free driver
- Power selectable (standard driver only)
- Selectable colour temperature
- Low glare option
- Large 1200mm x 600mm panel size
- Replaces 4x 36W fluorescent troffer
Applications
- Offices
- Conference Rooms
- Schools
- Retail Stores
- Shopping Centres
- Foyers
Standard Specifications
| Input Voltage: 220 - 240 Vac | Rated Input Power: 48W - 60W |
| Lumen Output: 5760lm - 6000lm | Lumen Efficiency: 120lm/W |
| Colour Temperature: 3000K - 5700K (*Single CCT / GS) | CRI Rating: CRI>80 (*CRI>85 / GS) |
| SDCM Rating: <6 (*SDCM < 3 / GS) | Beam Angel: 120° |
| IP Rating: IP20 | Dimensions: 1195 x 595 x 25mm |
| Fitting Weight: 2.90 ± 0.3kg |
IES Files
| IES PB260WHXKN01 1200x600mm 60W 3000K |
| IES PB260WHXKN01 1200x600mm 60W 4000K |
| IES PB260WHXKN01 1200x600mm 60W 5700K |
| IES PB260WHXKN02 1200x600mm UGR 60W 3000K |
| IES PB260WHXKN02 1200x600mm UGR 60W 4000K |
| IES PB260WHXKN02 1200x600mm UGR 60W 5700K |
| Please contact us for the additional IES Files |
Photometric Chart
 |
Models
| Model Option | Availability | |
|---|---|---|
White / 3CCT Selectable Stock Code: PB260WHXKN01C |
On Order (check lead times) | |
White / 3000K Stock Code: PB260WH3KN01C |
On Order (check lead times) | |
White / 4000K Stock Code: PB260WH4KN01C |
On Order (check lead times) | |
White / 5700K Stock Code: PB260WH5KN01C |
On Order (check lead times) | |
White / UGR<19 Low Glare Stock Code: PB260WHXKN02C |
On Order (check lead times) | |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
*NOTE: Add any required prefix from option list to end of model number. Example: PB260WHXKN01C / DALI (DALI Panel)
Options (add option to end of stock code)
| Mains Dimmable | / DIM |
| DALI Dimmable | / DALI |
| Cyanosis / Medical | / CY |
| Greenstar Specification* | / GS |
| Low Glare UGR<19 Capable |
/ UGR |
