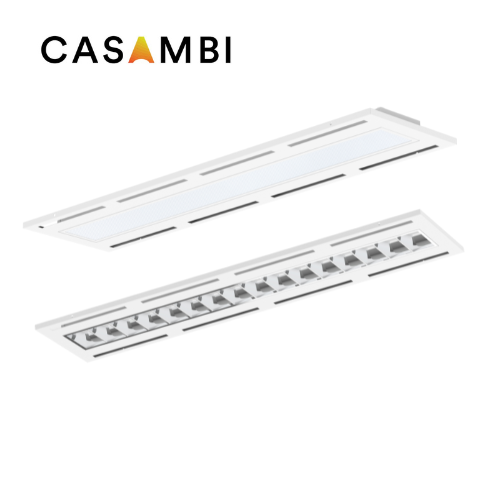

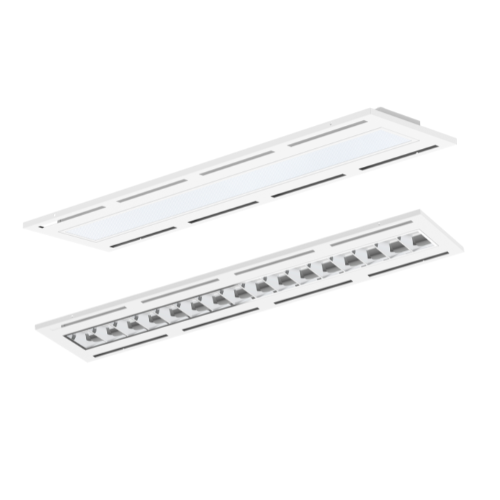

Integrated Power's PL Series air handling LED panels offer a stylish look with a soft, balanced output. These panels not only reduce glare but also provide optimal ventilation and excellent dissipation. Designed as a direct replacement for fluorescent troffers in standard grid ceilings, they are ideal for both retrofit projects and new builds. Through the power of Casambi smart technology, users are able to customise their desired outcome through luminaire dimming, grouping, scheduling and so much more.
Features
- High quality LED chips & drivers
- Wide beam SMD LED technology
- Flicker free driver
- Tuneable white colour temperature
- Human centric lighting capable
- UGR<19 Low glare capable
- Designed for standard grid ceilings
- Low glare design
- Prismatic diffuser or louver option

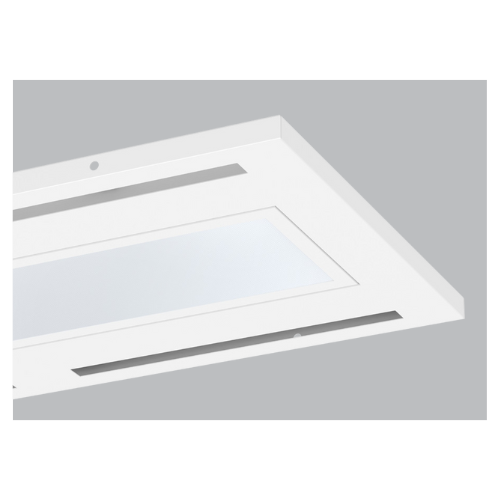

- Air return slot option
- Casambi wireless smart control
Applications
- Libraries
- Offices
- Conference Rooms
- Schools
- Retail Stores
- Shopping Centres
Standard Specifications
| Input Voltage: 220 - 240 Vac | Rated Input Power: 28W |
| Lumen Output: 2520lm - 2860lm | Colour Temperature: 3000K - 5700K |
| CRI Rating: CRI>90 | SDCM Rating: <6 |
| Beam Angle: 90° | IP Rating: IP20 |
| UGR Capacity: UGR<19 | Operating Temperature: -10°C ~ 40°C |

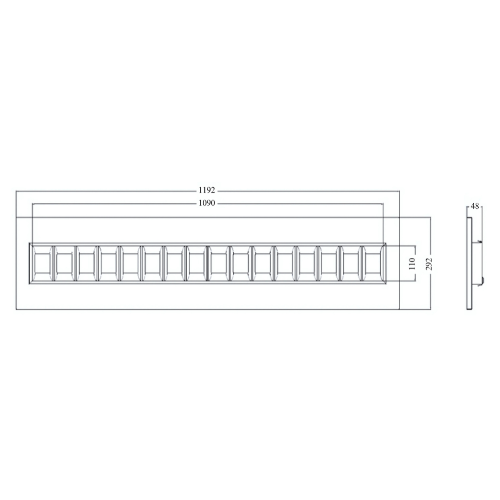

| Dimensions: 1192 x 292 x 48mm | Fitting weight: 3.85kg ( ± 0.3kg ) |
| Control: Casambi |
Option List
| Air Return Slot | / AR |
Accessories
| Casambi Single Kinetic Switch | CASKS1WH01 |
| Casambi Double Kinetic Switch | CASKS2WH01 |
| Surface Mount Kit | PB1WHN01 |
| Recessed Kit | PA1WHN02 |
IES Files
| IES PL28WH3KN01 1200x300 28W 90° 3K |
| IES PL28WH4KN01 1200x300 28W 90° 4K |
| IES PL28WH5KN01 1200x300 28W 90° 5K |
Photometric Charts
| Prismatic Diffuser |
 |
| Louver Panel |
 |
Models
| Model Option | Stock Code | Availability |
|---|---|---|

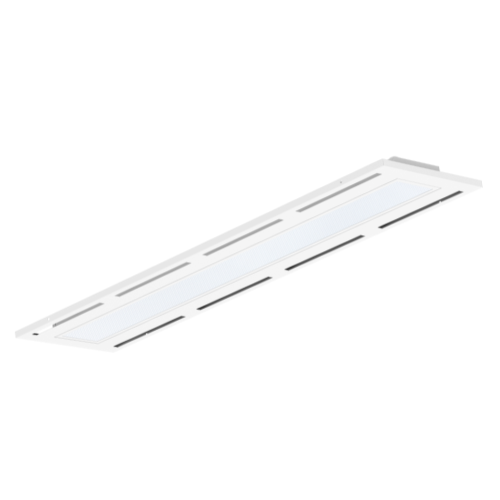

| Casambi / Low Glare Prismatic Diffuser / Tuneable White | PLC28WHXKD01 | Special Order |
| Casambi / Low Glare Prismatic Diffuser / Tuneable White / Air Return Slot | PLC28WHXKD01 / AR | Special Order |
| Casambi / Louver / Tuneable White | PLC28WHXKD02 | Special Order |

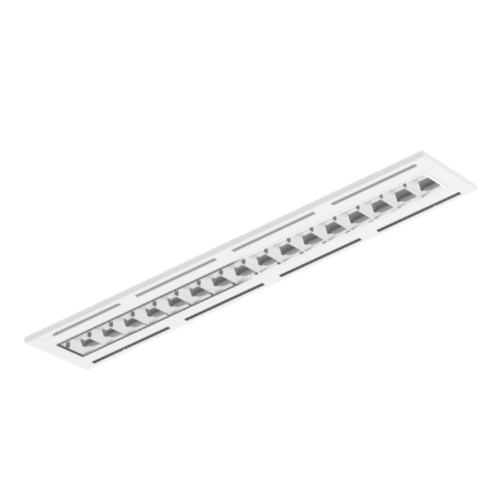

| Casambi / Louver / Tuneable White / Air Return Slot | PLC28WHXKD02 / AR | Special Order |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
