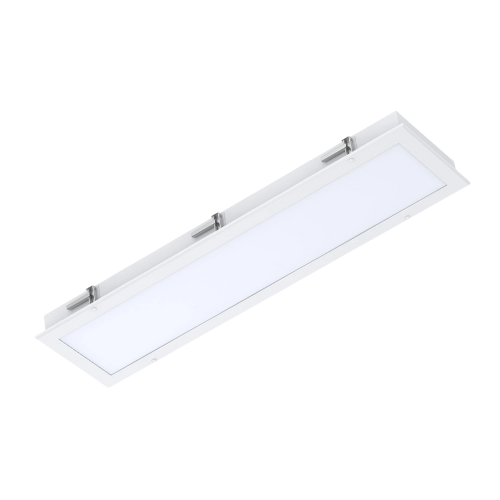

PCR Series Low Glare LED Cleanroom Panels - 52W

  • Sale

download pdf datasheet

The PCR Series low glare clean room panels deliver exceptional performance and a sleek design making them the ideal choice for clean room environments. With flicker free drivers and reduced glare, these panels enhance visual comfort while maintaining the high output lighting required for precision tasks. Their even light distribution ensures a clean, efficient illumination suitable for sterile and controlled spaces.


Features

  • Low glare design
  • High lumen efficiency
  • High quality LED chips & drivers
  • Wide beam SMD LED technology
  • Flicker free driver
  • UGR<19 low glare
  • Power selectable
  • Cyanosis option
  • DALI dimming option


Applications

  • Hospitals
  • Medical Centres
  • Laboratories
  • Retail
  • Kitchens
  • Childcare Centres



Standard Specifications

Input Voltage: 220 - 240 Vac Rated Input Power: 40W / 45W / 48W / 52W
Lumen Output: : 3400lm - 6300lm Colour Temperature: 4000K
CRI Rating: CRI>90 SDCM Rating: <3
Beam Angle: 90° IP Rating: IP65
IK Rating: IK08 Operating Temperature: -10°C ~ 40°C
Fitting Weight: 6.86kg ( ± 0.3kg ) (PCR52WH4KN02) Fitting weight: 5.48kg ( ± 0.3kg ) (PCR152WH4KN02)
Dimensions: 592 x 592 x 81mm (PCR52WH4KN02) Dimensions: 1230 x 325 x 81mm  (PCR152WH4KN02)


IES Files

IES PCR52WH4KN02 1230x325mm 40W 4000K
IES PCR52WH4KN02 1230x325mm 45W 4000K
IES PCR52WH4KN02 1230x325mm 48W 4000K
IES PCR52WH4KN02 1230x325mm 52W 4000K


IES PCR152WH4KN02 600x600mm 40W 4000K
IES PCR152WH4KN02 600x600mm 45W 4000K
IES PCR152WH4KN02 600x600mm 48W 4000K
IES PCR152WH4KN02 600x600mm 52W 4000K



Photometric Charts

 1230 x 325mm 600 x 600mm

Models

Model Option Availability

Low Glare / 1230 x 325 / 4000K / White


Stock Code: PCR52WH4KN02		 Stock Item

Low Glare / 592 x 592 / 4000K / White


Stock Code: PCR152WH4KN02		 Special Order
Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm.

Option List

DALI Dimmable  / DALI
Cyanosis / CY
