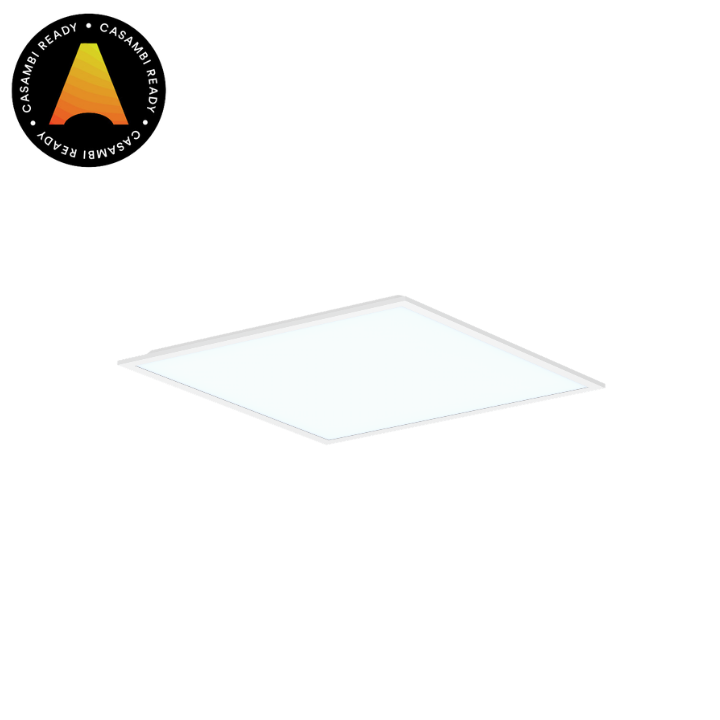

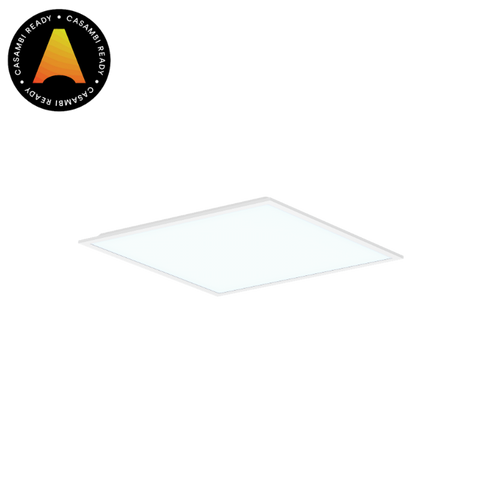

The PB Series LED Panels balance high output with clean, even light distribution and numerous installation options. They are a stylish troffer replacement for standard grid ceilings. These panels can be manually switched during installation to your chosen colour temperature which includes a warm 3000K, a natural 4000K and a cool 5700K. By adding Casambi wireless control, users can experience smart lighting via the user friendly Casambi App and multiple smart control options, giving full control at your fingertips.
Features
- High quality LED chips & drivers
- Wide beam SMD LED technology
- Flicker free driver
- Selectable colour temperatures
- low glare option
- Multiple mounting options
- Replaces 4 x 18W fluorescent troffer
- Casambi ready (Casambi driver required)
Applications
- Offices
- Conference Rooms
- Schools
- Retail Stores
- Shopping Centres
- Foyers
Standard Specifications
| Input Voltage: 220 - 240 Vac | Rated Input Power: 36W |
| Lumen Output: 3950lm - 4500lm | Lumen Efficiency: 120lm /W |
| Colour Temperature: 3000K - 5700K (*Single CCT /GS) |
CRI Rating: CRI>80 (*CRI>85 / GS) |
| SDCM Rating: <6 (*SDCM < 3 / GS) | Beam Angle: 120° |
| IP Rating: IP20 | Dimensions: 595 x 595 x 25mm |
| Fitting Weight: 1.72kg ± 0.3kg |
Options
| Mains Dimmable | / DIM |
| DALI Dimmable | / DALI |
| Casambi Control | / CAS |
| Power Selectable | / PS |
| Cyanosis / Medical | / CY |
| Greenstar Specification* | / GS |
| Low Glare UGR < 19 | / UGR |
Accessories
| Surface Mount Kit | PB1WHN03 |
| Recessed Kit | PA1WHN04 |
| Wire Suspension Kit | PA1SIN01 |
IES Files
| IES PB136WHXKN01 600x600 36W 3000K |
| IES PB136WHXKN01 600x600 36W 4000K |
| IES PB136WHXKN01 600x600 36W 5700K |
Models
NOTE: Add any required prefix to model number from option list above. Example: PB136WHXKN01C /DALI ( DALI Panel )
| Model Option | Stock Code | Availability |
|---|---|---|
| White / 3CCT Selectable | PB136WHXKN01C | Stock Item |
| White / 3000K | PB136WH3KN01C | Stock Item |
| White / 4000K | PB136WH4KN01C | Stock Item |
| White / 5700K | PB136WH5KD01C | Stock Item |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
