The OpticPro sports floodlights are the latest generation of high powered LED floodlights from Integrated Power. Their wide range of precision optics and accessories make them adaptable to even the most demanding sports lighting projects. The highly adjustable mounting bracket is cleverly designed to make installation straight forward, whether standard or underslung mounting is required.
Features
- Heavy duty construction
- High efficiency LED chips and drivers
- Large range of asymmetric & symmetric optics
- Glare and spill light shield accessories
- Top & underslung crossarm mountable
- Bird protection
- Integral driver standard
Applications
- Sports Lighting
- Hard Stands
- Industrial Sites
- Security Lighting
- Signage
Standard Specifications
| Input Voltage: AC 100 - 277V | Rated Input Power: 600W |
| Lumen Output: 88,200lm | Colour Temperature: 5000K (4000K, 5700K optional) |
| CRI Rating: CRI>80 (CRI>90 optional) | SDCM Rating: < 5 |
| Control: 0 - 10V Dimming | IK Rating: IK09 |
| IP Rating: IP66 | EPA (Sail Area): 0.07m² @ 0° tilt |

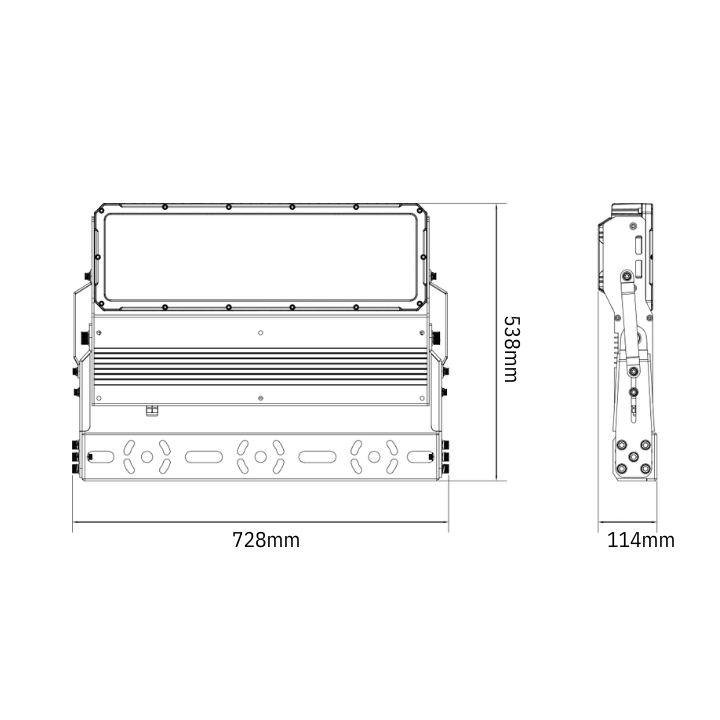

| Service Life: L70 >100,000hrs | Dimensions: 728 x 114 x 538mm |
| Fitting Weight: 12.8kg (remote driver) | Fitting Weight: 15.88kg (with driver) |
| Fitting Weight: 21.8kg (integral driver) |
Options (add option to end of stock code)
| 415Vac LED Driver |
/415V |
| Remote Driver | /REMDR |
Accessories
| NOTE: 2.5m² 2 Core + Earth circular cable required for DC connection between fitting and driver for remote driver installation (not supplied). |
IES Files
| IES OP600GR5KD01 12deg SYM - 600W |
| IES OP600GR5KD02 16deg SYM - 600W |
| IES OP600GR5KD03 30deg SYM - 600W |
| IES OP600GR5KD04 60deg SYM - 600W |
| IES OP600GR5KD05 60x130deg WB ASYM - 600W |
| IES OP600GR5KD06 40x130deg MB ASYM - 600W |
| IES OP600GR5KD07 25x130deg NB ASYM - 600W |
| IES OP600GR5KD08 AS-L ASYM - 600W |
| IES OP600GR5KD09 AS-R ASYM - 600W |
| IES OP600GR5KD10 AS-LR ASYM - 600W |
Photometric Charts
| 60 x 130° |
 |
| 40 x 130° |
 |
| 25 x 130° |
 |
Models
Models
| Model Option | Availability | |
|---|---|---|
Grey / 12 deg SYM Stock Code: OP600GR5KD01 |
Special Order | |
Grey / 16 deg SYM Stock Code: OP600GR5KD02 |
Special Order | |
Grey / 30 deg SYM Stock Code: OP600GR5KD03 |
Special Order | |
Grey / 60 deg SYM Stock Code: OP600GR5KD04 |
Special Order | |
Grey / 60x130 deg WB ASYM Stock Code: OP600GR5KD05 |
Special Order | |
Grey / 40x130 deg MB ASYM Stock Code: OP600GR5KD06 |
Special Order | |
Grey / 25x130 deg NB ASYM Stock Code: OP600GR5KD07 |
Special Order | |
Grey / AS-L ASYM Stock Code: OP600GR5KD08 |
Special Order | |
Grey / AS-R ASYM Stock Code: OP600GR5KD09 |
Special Order | |
Grey / AS-LR ASYM Stock Code: OP600GR5KD10 |
Special Order | |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
