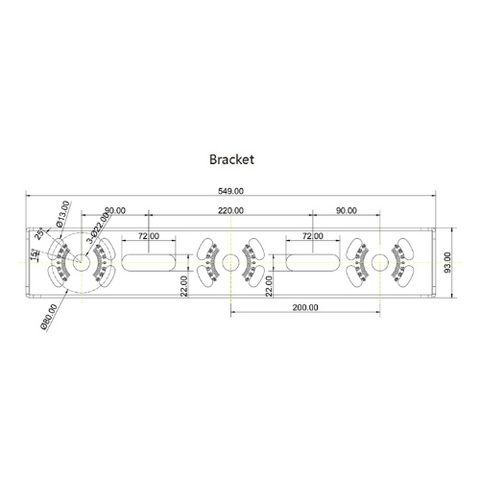

The OpticPro sports floodlights are the latest generation of high powered LED floodlights from Integrated Power. Their wide range of precision optics and accessories make them adaptable to even the most demanding sports lighting projects. The highly adjustable mounting bracket is cleverly designed to make installation straight forward, whether standard or underslung mounting is required.
Features
- Heavy duty construction
- High efficiency LED chips and drivers
- Large range of asymmetric & symmetric optics
- Glare and spill light shield accessories
- Top & underslung crossarm mountable
- Bird protection
- Integral driver
Applications
- Sports Lighting
- Hard Stands
- Industrial Sites
- Security Lighting
- Signage
Standard Specifications
| Input Voltage: AC 100 - 277V | Rated Input Power: 480W |
| Lumen Output: 58,080lm | Colour Temperature: 4000K (5000K, 5700K optional) |
| CRI Rating: CRI>80 (CRI>90 optional) | SDCM Rating: < 5 |
| Control: 0 - 10V Dimming | EPA (Sail Area): 0.043m² @ 0° tilt |
| IK Rating: IK09 | IP Rating: IP66 |
| Service Life: L70 >100,000hrs | Fitting Weight: 19kg |

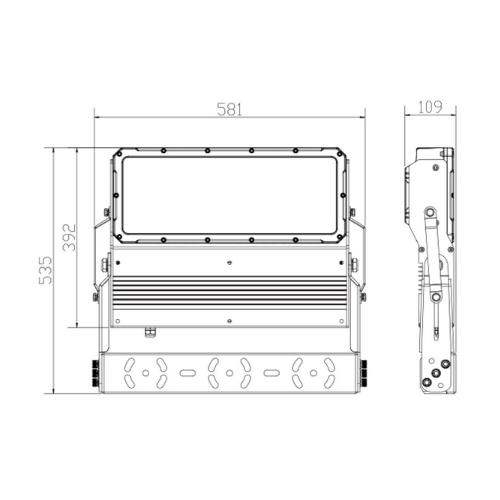

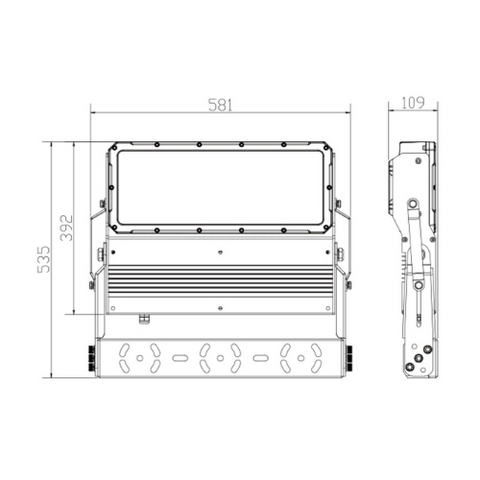

| Dimensions: 535 x 109 x 581mm |
Options (add option to end of stock code)
| 415Vac LED Driver |
/415V |
IES Files
| IES OP480GR4KD05 WB ASYM - 480W |
| IES OP480GR4KD06 MB ASYM - 480W |
| IES OP480GR4KD07 NB ASYM - 480W |
Photometric Chart
| 60 x 130° |
 |
| 40 x 130° |
 |
| 25 x 130° |
 |
Models
Models
| Model Option | Availability | |
|---|---|---|
Grey / 12 deg SYM Stock Code: OP480GR4KD01 |
Special Order | |
Grey / 16 deg SYM Stock Code: OP480GR4KD02 |
Special Order | |
Grey / 30 deg SYM Stock Code: OP480GR4KD03 |
Special Order | |
Grey / 60 deg SYM Stock Code: OP480GR4KD04 |
Special Order | |
Grey / 60x130 deg WB ASYM Stock Code: OP480GR4KD05 |
Special Order | |
Grey / 40x130 deg MB ASYM Stock Code: OP480GR4KD06 |
Special Order | |
Grey / 25x130 deg NB ASYM Stock Code: OP480GR4KD07 |
Stock Item | |
Grey / AS-L ASYM Stock Code: OP480GR4KD08 |
Special Order | |
Grey / AS-R ASYM Stock Code: OP480GR4KD09 |
Special Order | |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
