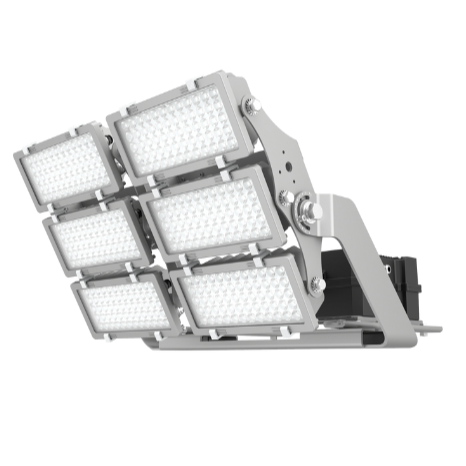

The FLC Series floodlights are a heavy duty, robust fitting built to cater to a wide range of demanding applications such as industrial areas, mining and security. Designed with 180deg highly adjustable heavy duty bracket and specialised optics, it can easily be adapted to a wide range of floodlighting projects.
Features
- High Specification Osram LED's
- Premium Quality Inventronics Driver
- Remote driver capable
- Bird protected cables
- Symmetric & Asymmetric Optics
- Narrow optics for long distance applications
- Heavy duty 180° adjustable bracket
- Robust, efficient design
Applications
- Sporting grounds
- Parking lots
- Mining
- Loading docks
- Long distance lighting
Standard Specifications
| Rated input power - 1200W | Lumen ouput - 168,000lm (5000K) |
| CRI - Ra70 (Ra80 optional) | Colour Temp - 5000K |
| IP Rating - IP65 | Lifetime - L70 >50,000hrs |
| EPA (Sail Area) - 0.359m² | Operating Temp -30°C to+40°C |
| Fitting weight - 26.6 kg | Driver box weight - 12.7 kg |
Options (add option to end of stock code)
| 0-10V Dimming | /0-10V |
| DALI Dimming | /DALI |
IES Files
| IES FLC1200SI5KN01 10 Deg 1200W |
| IES FLC1200SI5KN02 15 Deg 1200W |
| IES FLC1200SI5KN03 15x40 Deg 1200W |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| Symmetric Beam Angle 10 deg | FLC1200SI5KN01 | Special Order |
| Symmetric Beam Angle 15 deg | FLC1200SI5KN02 | Special Order |
| Asymmetric Beam Angle 15x40 deg | FLC1200SI5KN03 | Special Order |
| Special order products typically have an 12-14 week lead time. Minimum order qty's may apply. | ||
