The new LB Series Linear Batten offers a modern, clean design with a range of features and mounting options. Easily linked together for seamless linear runs, they are a perfect architectural fitting for reception areas, offices, lobbies and classrooms. Ideal for both retrofits and new installations.
Features
- High efficiency SMD LEDs
- Tri-colour selectable
- Flicker free driver
- Multiple mounting options
- IPX output control compatible
Applications
- Receptions
- Offices
- Classrooms
- Feature Lighting
- Lobbies
Standard Specifications
| Input Voltage: 220 - 240 Vac | Rated Input Power - 36W |
| Lumen Output: 3,700lm - 4,000lm | Colour Temperature: 3000K/ 4000K/ 5000K |
| Beam Angle: 120° | CRI Rating: CRI>80 |
| SDCM Rating: <5 | Control: 0 - 10V Dimming |
| IP Rating: IP20 | IK Rating: IK10 |

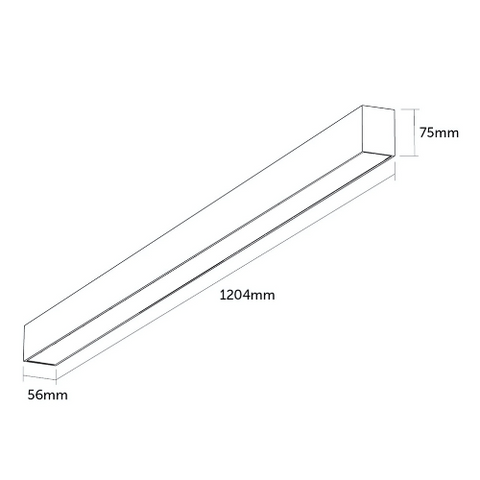

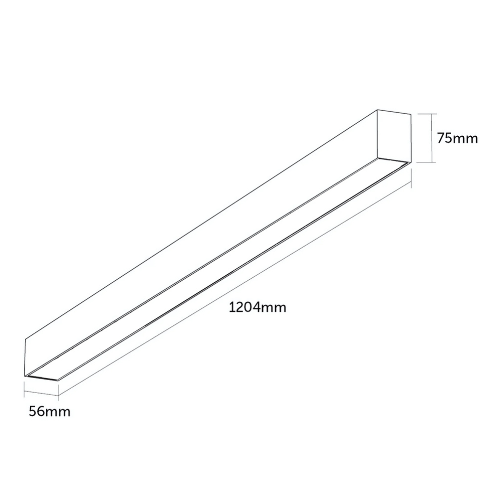

| Service Life: L70>50,000 | Dimensions: 1204 x 56 x 75mm |
| Fitting Weight: 2.75kg |
Options (add option to end of stock code)
| DALI Dimming | /DALI |
| IPX Output Control (additional hardware required) | /IPX |
Accessories
| Wall Mount Kit | LBWMK01 |
| Wire Suspension Kit | LBWSK01 |
| Powered Suspension Kit - White | LB45WSK02WH |
| Powered Suspension Kit - Black | LB45WSK02BK |
IES Files
| IES LB36WHXKD01 4000K 36W |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| White / Tri-colour | LB36WHXKD01 | Stock Item |
| Black / Tri-colour | LB36BKXKD01 | Special Order |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
