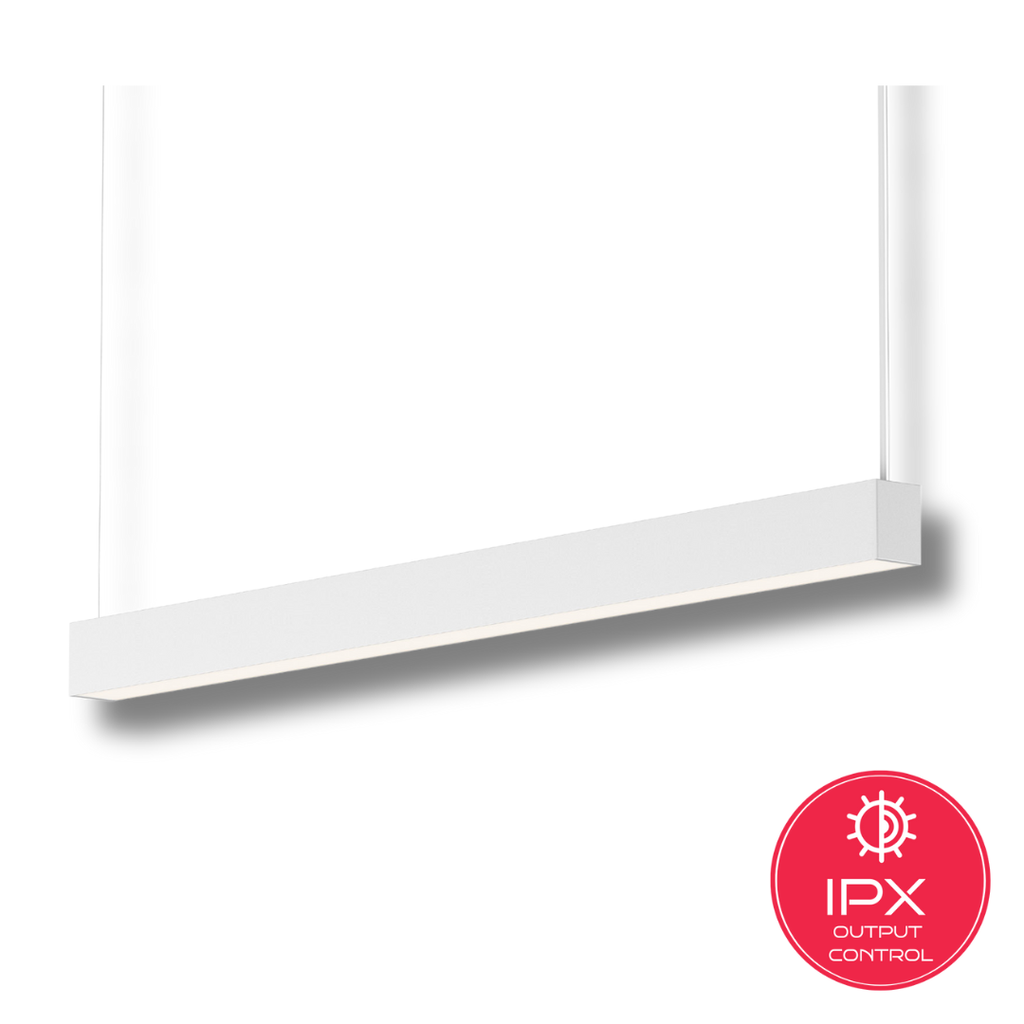

LB Series 2 LED linear batten with IPX Output Control options

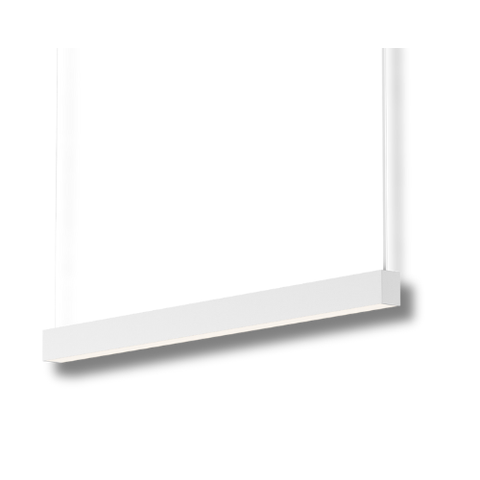

LB Series 2 LED linear batten 36W 1200mm is perfect for applications requiring architectural features

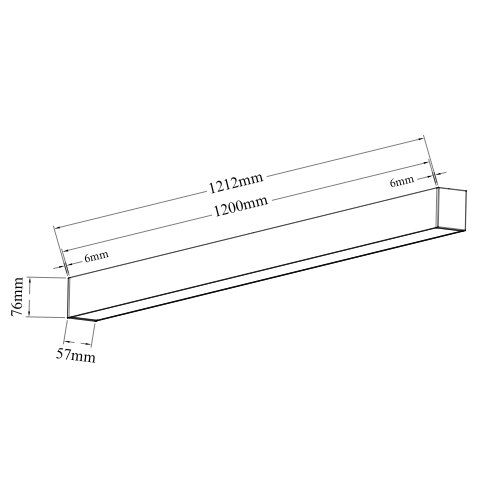

LB Series 2 LED Linear Batten Dimension Drawing 1200mm

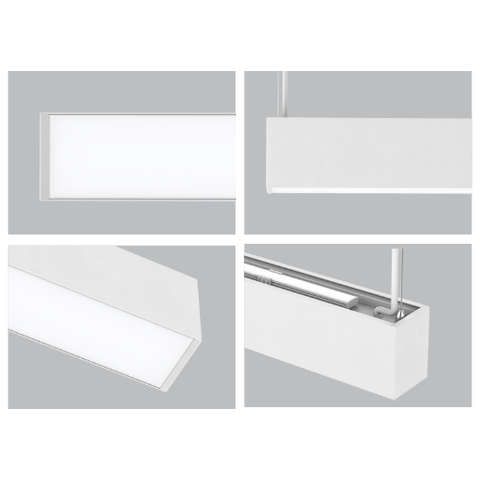

The LB Series 2 LED linear battens offers a wide range of features
LB Series-seamless diffuser
lb series_suspension kit_Integrated Power
LB Series 2 LED linear batten with IPX Output Control options
LB Series 2 LED linear batten 36W 1200mm is perfect for applications requiring architectural features

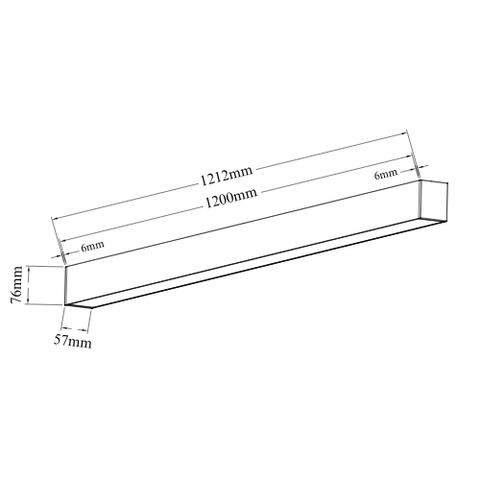

LB Series 2 LED Linear Batten Dimension Drawing 1200mm
The LB Series 2 LED linear battens offers a wide range of features
LB Series-seamless diffuser
lb series_suspension kit_Integrated Power

LB Series 2 Linear LED Batten - 36W, 1200mm White

  • Sale
  • $0.00

download pdf datasheet

The new LB Series 2 Linear Battens offers a modern, clean design with a range of features and mounting options. Easily linked together for seamless linear runs, they are a perfect architectural fitting for reception areas, offices, lobbies and classrooms. Ideal for both retrofits and new installations.


Features

  • High efficiency SMD LEDs
  • Tri-colour selectable
  • Flicker free driver
  • Surface mounted
  • Suspension mount option available (accessories required)
  • Upward and downward light capable
  • Linking kit included
  • Seamless diffuser (optional)
  • IPX output control compatible



Applications

  • Receptions
  • Offices
  • Classrooms
  • Feature Lighting
  • Lobbies



Standard Specifications

Input Voltage: 200 - 240 Vac Rated Input Power: 36W
Lumen Output: 3,300lm - 3,800lm Colour Temperature: 3000K / 4000K / 5700K
Beam Angle: 110° Control: 1 - 10V Dimming
CRI Rating: CRI>80 (*CRI > 85 / GS) SDCM Rating: < 6 (*SDCM < 3 / GS)
IP Rating: IP20 IK Rating: IK06
Operating Temperature: - 20°C ~ 45°C Service Life: L70 > 50,000hrs
Dimensions: 1212 x 57 x 76mm Cutout Dimensions: 1214 x 63 x 76mm
Fitting Weight: 2.7kg ± 0.3kg


IES Files

IES LB36WHXKD01 S2 4000K 36W


Photometric Chart



Models

Model Option Availability

White / Tri-Colour Selectable


Stock Code: LB36WHXKN01 / S2		 Stock Item
Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm.

Options (add option to end of stock code)

DALI Dimming / DALI
Greenstar Specification* / GS
IPX Output Control (additional hardware required) / IPX


Accessories

Uplighting Module LB9UPXKN01
Powered Suspension Kit - White LB45WSK02WH
Suspension Kit  LBWSK02
Seamless Diffuser - 10m Roll LB1SD10M
Seamless Diffuser - 30m Roll LB1SD30M
