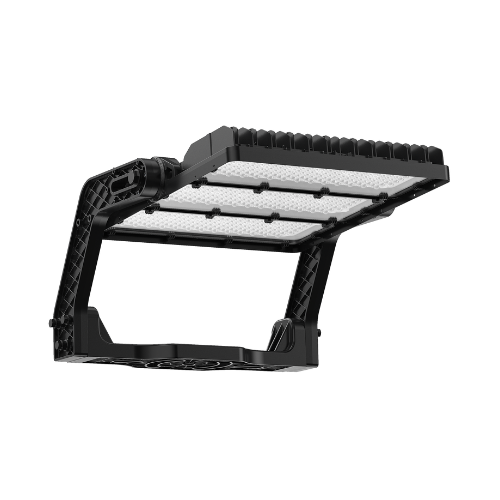

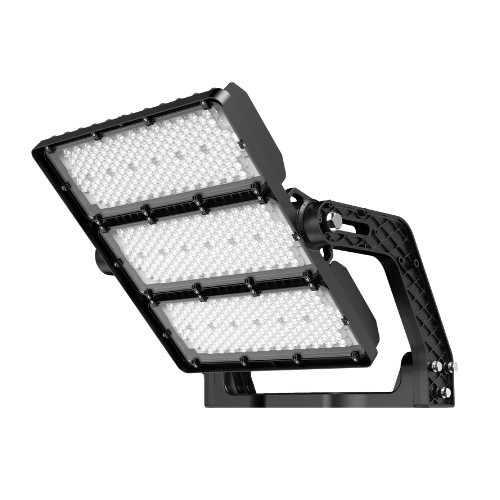

Introducing the HF4 Series LED Sports Floodlight, the latest generation of high-powered floodlights from Integrated Power. This Series is built tough and designed for versatility, delivering exceptional performance. Their wide range of precision optics ensures excellent cut-off and spill control, making them ideal for a wide range of large-scale lighting applications including exhibition centres, sports stadiums and arenas.
Features
- Compact and robust design
- High quality LED chips & drivers
- Anti-corrosive protection
- Wide range of professional optics

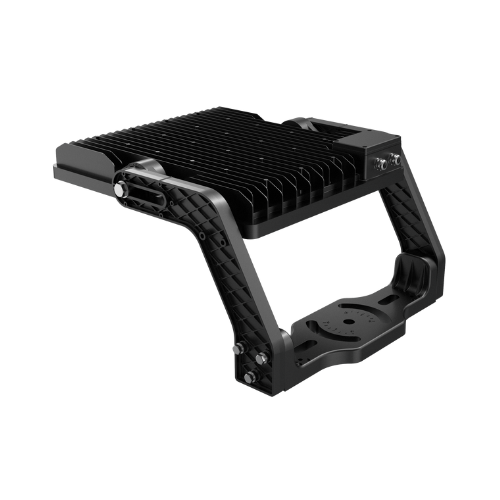

- Remote driver (cable not included)*
- 0 - 10V dimmable driver
- DALI & RDM dimming options
- 20KV surge protection device
Applications
- Stadiums
- Sporting Squares
- Outdoors Sports Fields
- Exhibition Arenas
- Sporting Arenas
- Signage
- Industrial Sites
Standard Specifications
| Rated Input Voltage: 120 - 240 Vac | Rated Input Power: 1200W |
| Lumen Output: 168,000 (140lm/W) | Colour Temperature: 5000K (4000K, 5700K optional) |
| CRI Rating: CRI>80 (CRI>90 optional) | SDCM Rating: < 3 |
| IP Rating: IP66 | IK Rating: IK08 |
| EPA Rating: 0.392m² (4.22ft²) | Lifespan: 178,000hrs = L70 @Ta=25°C |
| Operating Temperature: -30°C to +50°C | Fitting Weight: 20.7kg (±0.3kg) |

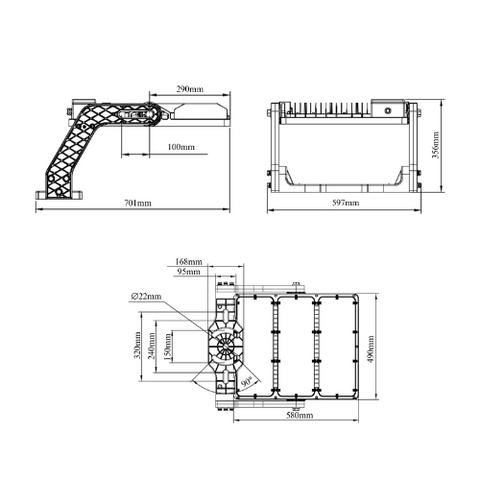

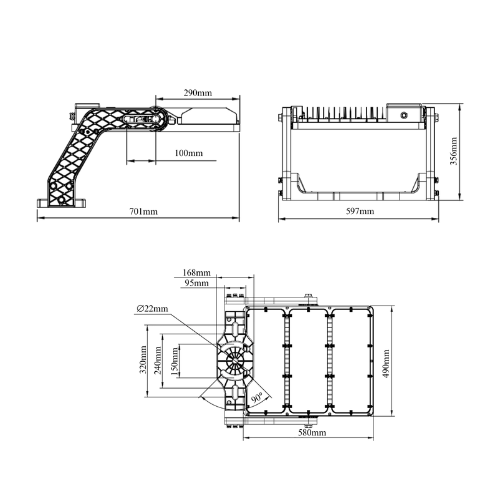

| Product Dimensions: 701 x 597 x 356mm |
Option List
| Casambi Control | / CASAMBI |
| DALI Dimmable | / DALI |
| Gear Tray | / GR |
| 415Vac Driver | / 415V |
Accessories
| *Note: 2.5m² 2 Core + Earth circular cable required for DC connection between fitting and driver (not supplied) |
IES Files
| IES Files available upon request. Contact Us |
Photometric Charts
| D01 |
 |
| D02 |
 |
| D03 |
 |
| D04 |
 |
| D05 |
 |
| D06 |
 |
| D08 |
 |
| D13 |
 |
| D14 |
 |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| Black / 5000K / 12 Degree / 0 - 10V | HF41200BK5KD01 | Special Order |
| Black / 5000K / Type II Optic / 0 - 10V | HF41200BK5KD02 | Special Order |
| Black / 5000K / Type IV Optic / 0 - 10V | HF41200BK5KD03 | Special Order |
| Black / 5000K / 30 Degree / 0 - 10V | HF41200BK5KD04 | Special Order |
| Black / 5000K / 45 Degree / 0 - 10V | HF41200BK5KD05 | Special Order |
| Black / 5000K / 60 Degree / 0 - 10V | HF41200BK5KD06 | Special Order |
| Black / 5000K / Type I Optic / 0 - 10V | HF41200BK5KD08 | Special Order |
| Black / 5000K / Type IV - N / 0 - 10V | HF41200BK5KD13 | Special Order |
| Black / 5000K / Type IV - M / 0 - 10V | HF41200BK5KD14 | Special Order |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
