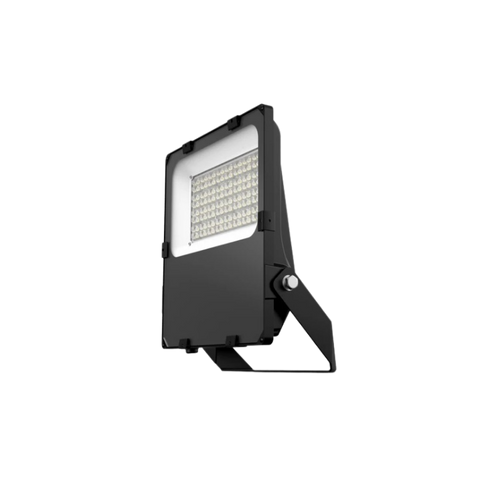

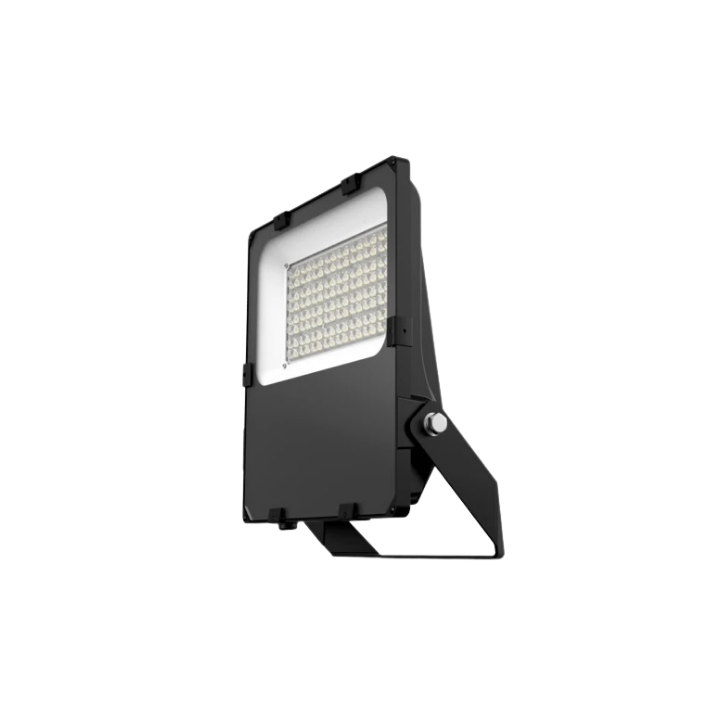

The CF series LED floodlight is a powerful yet compact commercial LED fitting. With high spec Philips LED chips and specialised secondary optics to minimise light spillage, the CF Series flood is the ultimate commercial LED floodlight.
Features
- Heavy duty construction
- Flicker free driver
- High efficiency Philips LED chips
- Symmetric/Asymmetric optics available
- Full range of motion on mounting bracket
- 1.5m cable with AU plug
Applications
- General floodlighting
- Hard stands
- Security lighting
- Signage
Standard Specifications
| Input Voltage: 220 - 240 Vac | Rated Input Power: 50W |
| Lumen Output: 7,000lm | Colour Temperature: 3000K / 4000K / 5000K |
| CRI Rating: CRI>80 (*CRI >85 / GS) | SDCM Rating: < 3 |
| Beam Angle: Symmetric/Asymmetric | Operating Temperature: -30/+50°C |
| Dimmable: No (0-10V optional) | Service Life: L70 > 50,000hrs |
| IP Rating: IP66 | IK Rating: IK08 |
| Weight: 2.6kg | Dimensions: 240 x 63 x 314mm |
Option List
| Greenstar Specification* | /GS |
Accessories
| Pole Bracket Adaptor - 60mm | CFPBR01 |
| Pole Clamp Bracket - 40mm to 150mm | CFCL150B |
IES Files
| IES CF250BL4KN01 50W SYM |
| IES CF250BL4KN02 50W ASYM |
Photometric Chart
| Symmetrical |
 |
| Asymmetrical |
 |
Models
Models
| Model Option | Availability | |
|---|---|---|
4000K / Symmetric Optic Stock Code: CF250BL4KN01 |
Special Order | |
4000K / Asymmetric Optic Stock Code: CF250BL4KN02 |
Stock Item | |
5000K / Symmetric Optic Stock Code: CF250BL5KN01 |
Special Order | |
5000K / Asymmetric Optic Stock Code: CF250BL5KN02 |
Special Order | |
| Special order products typically have a 10-12 week lead time. Minimum order qty's may apply. Please contact us to confirm. | ||
