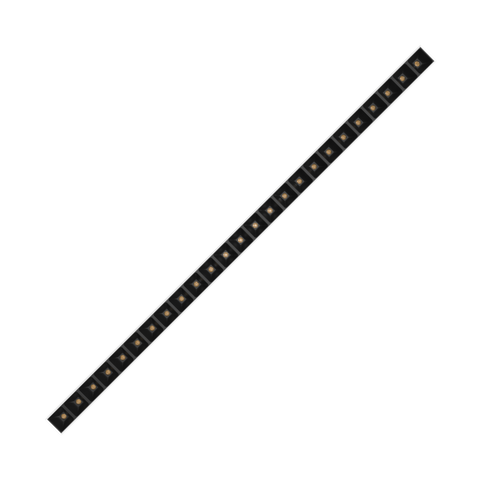

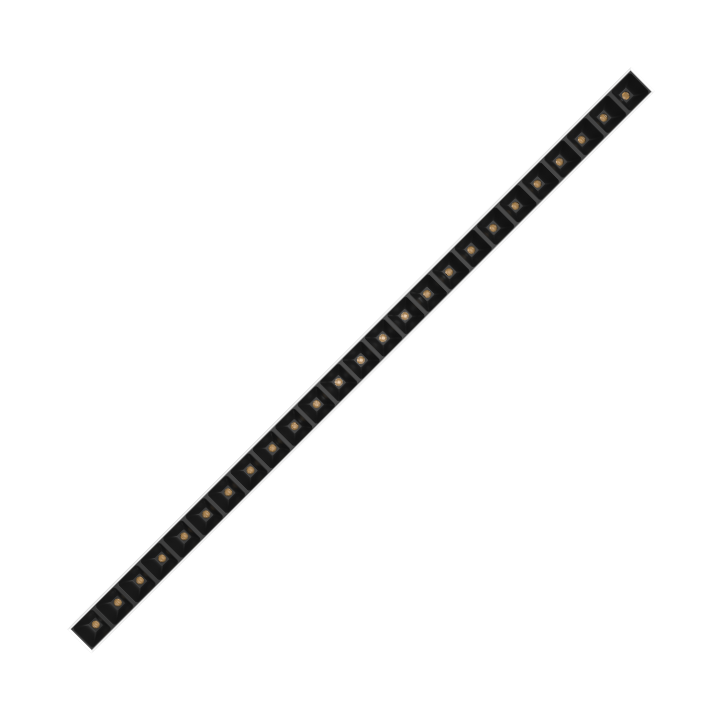

TekBar Linear by Integrated Power is the latest LED lighting innovation for t-bar ceilings. Get creative and give your office space a modern boost with this stylish, slimline linear lighting. Usable as an architectural feature for conference and reception areas or simply light up the whole office space. Fast to install, they are perfect for either retrofits or new buildings.
Features
- Simple clip-on installation onto ceiling t-bar
- Cost effective linear lighting
- Endless design possibilities
- High quality Philips Lumiled LED chips
- Reliable Meanwell drivers
- 1-10V dimmable
- Low glare black diffuser
Applications
- Receptions
- Boardrooms
- Offices
- Hallways
- Conference Rooms
- Passage Ways
- Hospitals
- Schools
Standard Specifications
| Rated Input Power: 26W | Lumen Output: 2600lm |
| Colour Temp: 4000K (3000K, 5000K optional) | Beam Angle: 75° |
| CRI: ≥80 |
Service Life: L70 / 50,000hrs |
| UGR<16 Capable | SDCM <4 |
| IP Rating: IP20 |
Options (add option to end of stock code)
| Mains Dimmable | /DIM |
| DALI Dimmable | /DALI |
Accessories
| 75W Dimmable 1-10V Driver | /TBL75DR01 |
| 150W Dimmable 1-10V Driver | /TBL150DR01 |
| 1-10V Dimmer Control | /TBL1DIM/1-10V |
| 1.2m DC Extension Cable | /TBL1.2DCEXT |
IES Files
| IES TBL26WH4KD01/UGR-B 75deg 4000K 26W |
Models
| Model Option | Stock Code | Availability |
|---|---|---|
| White / 4000K | TBL26WH4KD01/UGR-B | Stock Item |
| Special order products typically have an 12-14 week lead time. Minimum order qty's may apply. | ||
