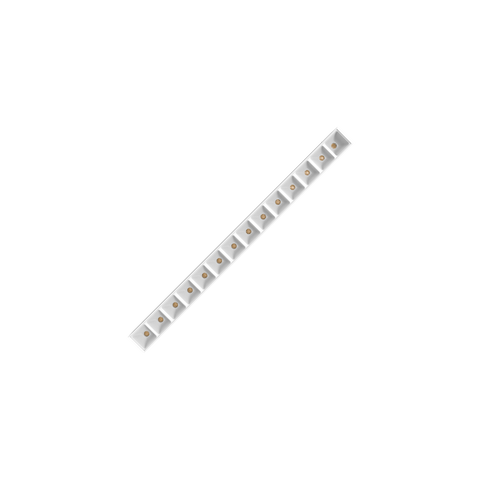

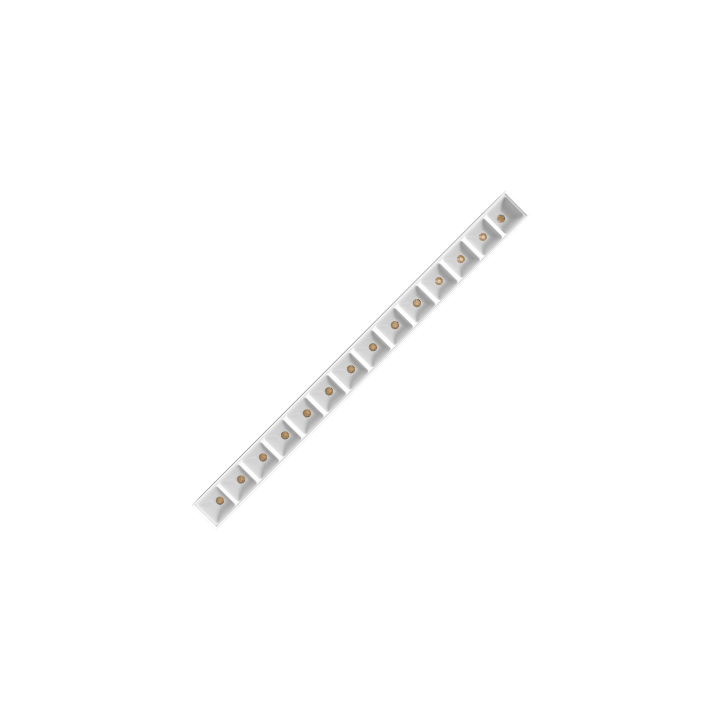

TekBar Linear LED Lighting 13W - 600mm - Low Glare White

  • Sale
  • Regular price $0.00




TekBar Linear by Integrated Power is the latest LED lighting innovation for t-bar ceilings. Get creative and give your office space a modern boost with this stylish, slimline linear lighting. Usable as an architectural feature for conference and reception areas or simply light up the whole office space. Fast to install, they are perfect for either retrofits or new buildings.

Features

  • Simple clip-on installation onto ceiling t-bar
  • Cost effective linear lighting
  • Endless design possibilities
  • High quality Philips Lumiled LED chips
  • Reliable Meanwell drivers
  • 1-10V dimmable
  • Low glare white diffuser


Applications

  • Receptions
  • Boardrooms
  • Offices
  • Hallways
  • Conference Rooms
  • Passage Ways
  • Hospitals
  • Schools


Standard Specifications

Rated Input Power: 13W Lumen Output: 1280lm
Colour Temp: 4000K (3000K, 5000K optional) Beam Angle: 75°
CRI: ≥80 Service Life: L70 / 50,000hrs
UGR<19 Capable SDCM <4
IP Rating: IP20



Options (add option to end of stock code)

Mains Dimmable /DIM
DALI Dimmable /DALI



Accessories

75W Dimmable 1-10V Driver /TBL75DR01
150W Dimmable 1-10V Driver /TBL150DR01
1-10V Dimmer Control /TBL1DIM/1-10V
1.2m DC Extension Cable /TBL1.2DCEXT



IES Files

IES TBL13WH4KD02/UGR-W 75deg 4000K 13W



Models

Model Option Stock Code Availability
White / 4000K TBL13WH4KD02/UGR-W Stock Item
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
