EL Series Jumbo LED Exit Light 48M - 5W

  • Sale
  • Regular price $0.00




The EL Series Jumbo LED Exit Light is a high quality, reliable & practical exit luminaire designed for larger viewing distances. It includes multiple pictograms to suit all directional requirements. Surface and wall mountable as standard with optional suspension mount kit also available.


Features

  • Pictogram kit included
  • IP Rating - IP20
  • Manual test switch
  • Charge indicator
  • Surface, wall & suspension* mountable
  • 48M viewing distance
  • AS2293.3 compliant


Applications

  • Warehouses
  • Workshops
  • Stadiums
  • Factories
  • Hospitality
  • Shopping Centres



Standard Specifications

Input Voltage: 220-240Vac Rated Input Power: 5W (mains)
Emergency Power: 2W Battery Type: LiFePO4 6.4V 1500mAh
Duration: 2hrs CRI >80
Colour Temperature: 6000K 3yr Warranty

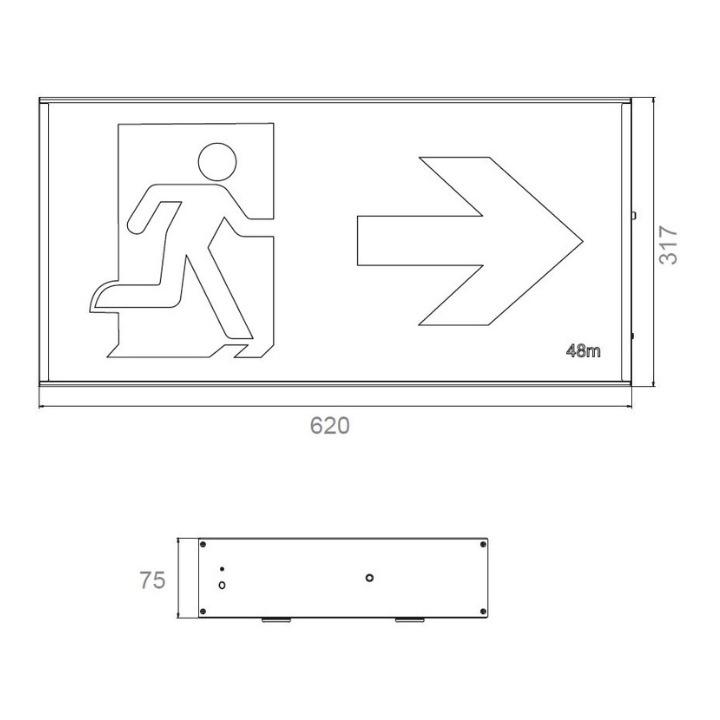

Dimensions: 620mm x 317mm x 75mm



Accessories

 Jumbo Suspension Kit EL2WSK01JU



IES Files

 IES EL2WH6KN01JU Jumbo Exit - 48M


Models

Model Option Stock Code Availability
Standard Model EL2WH6KN01JU Stock Item
Special order products typically have an 12-14 week lead time. Minimum order qty's may apply.
